Fixed Fiber Optic Rack Mount Enclosure 12 Core Patch Panel 1U St Upc Adapter​

Fiber Optic Rack Mount Enclosure Patch Panel 1u 12 Core St Upc Adapter​

• The Fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
• Apply to Data communication Data centers Telecommunications Premise networks
• Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
• The box has a pothook, which is convenient to install and dismantle
• The box is of unique structure, reasonable layout, and has adequate room for operation
• Can be installed with SC ST adapter

Feature:

​●  The indoor type is of excellent seal performance, which could prevent water from entering effectively Can be installed with LC adapter

●  1.0mm superior cold-rolled sheet cold-rolled primes,surface painting by Electro-static coating

●  Frame plate is suitable for installing sorts of adaptors such FC, SC, ST, 2LCetc.

●  Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.

●  Standard 19 inch structure, could be installed on various of standard racks.

●  19" drawer and 19" fixed optional

Specifications
  Enclosure size not including rack19 brackets: 430 x 200x 43mm. It occupies 1U in a 19 "rack cabinet.
  Made of black metal sheet and with removable top cover for comfortable access to the interior.

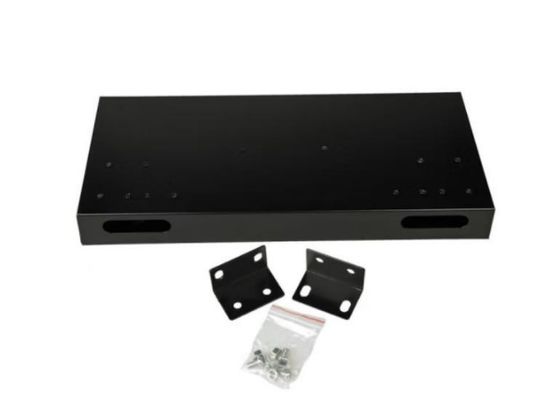

  Detachable metal brackets for attachment to the 19 "rack frame.
  On the front there are 3 installed 4xST subpanels. Sub-panel size of 140x30 mm.
  Connectors are not supplied and must be purchased separately. Compatible with ST adapter hole (oval).

Technical specification
