Drawer Type Fiber Optic Terminal Box 48 Core Optical Termination Panel Box
Description:
19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.The flexibility of its two piece construction allows you maintain a stock of the chassis and then attach a suitable front panel as required
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 24 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx295mmx47mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 24pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-2 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. Standard size, light weight and reasonable structure
2. Splice tray inside changeable
3. Can be used in 19'', 23'' standard distribution frame
4. Suitable for ribbon and single fiber
5. Various panel plate to fit different adapter interface
6. Front mark on the plate is easy for identification and operation
7. 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8. Easy for management and operation
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

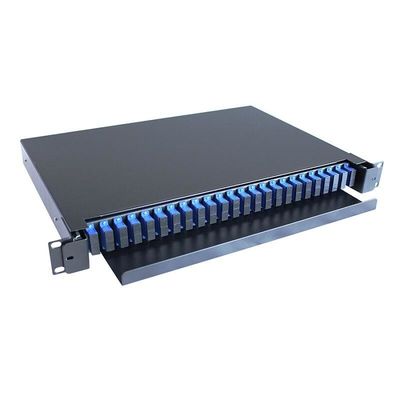

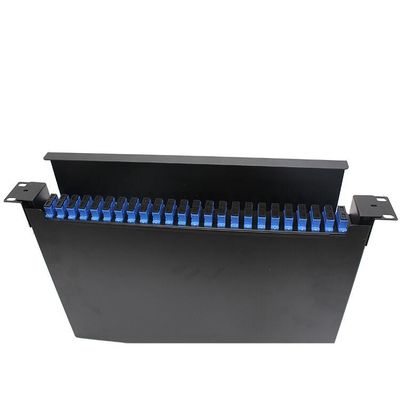

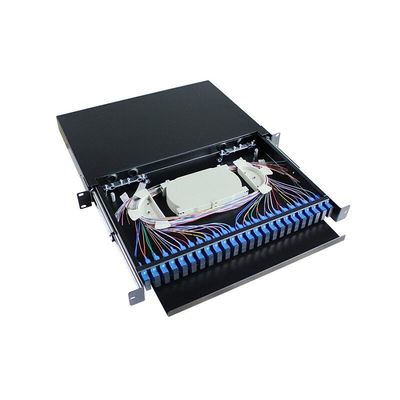

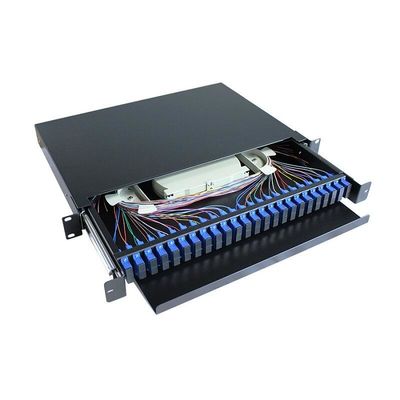

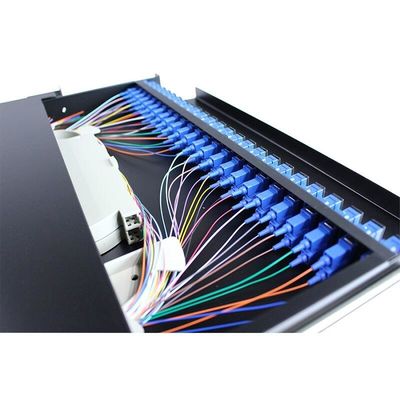

Details photos:
