Fc Rack Mounted Fiber Optic Patch Panel ODF 19 Inch 48 Mouth Pull Type

Negotiable
MOQ
Negotiable
Price
Fc Rack Mounted Fiber Optic Patch Panel ODF 19 Inch 48 Mouth Pull Type
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Optical Distribution Frame Odf
Adapter: FC,ST,SC,LC
Type: Sliding Type
Material: Cold Rolled Steel
Capacity: 48core
Color: Black Or White
Dimension: 485*250*90mm
Height: 2U
High Light:

Fc Fiber Optic Patch Panel

,

Fiber Optic Patch Panel 19 Inch

,

Rack Mounted Fiber Patch Panel ODF

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-DR03-2U-FC
Payment & Shipping Terms
Packaging Details: Inner box and carton box,5 pcs/Carton Carton Size : 55*35*34cm G/W: 19KG
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

Fc Port Rack Mounted Indoor Fiber Patch Panel 19 Inch 48 Mouth Pull Type Odf​



Description:

Fiber patch panel series of optic distribution boxes ,which are middle capacity and

both side operation applicable in the branch connection of fiber termination ,working

as distribution box.

It is with standard 19 inch size and properly designed to control the bend radius of the

cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor

fiber optic cables connection storage, distribution and management.



Features:

❖ Standard size, light weight and reasonable structure

❖ Slide out drawer for easy cable management

❖ FC, SC, ST, LC adapter patch panel for option

❖ Front access panel design for easy operation

❖ Suitable for 19’’ or 23’’ standard optic distribution cabinets

❖ With metal front cover

❖ 2-8 pcs splice trays (each 12 fibers)

❖ Max. capacity 48 fibers

❖ 4 fiber cable entry ports at rear side

❖ White or black color



Specification
Model
TW-DR04-2U
Type
19inch Rack Mount
Material
Cold Rolled Steel
Size W*D*H (mm)
485*250*90MM
Capacity (core)
48
Included accessories
4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes,
adapter screws
Product color

White or black color

Working temperature
-40~+85°C
Storage temperature
-40~+85°C

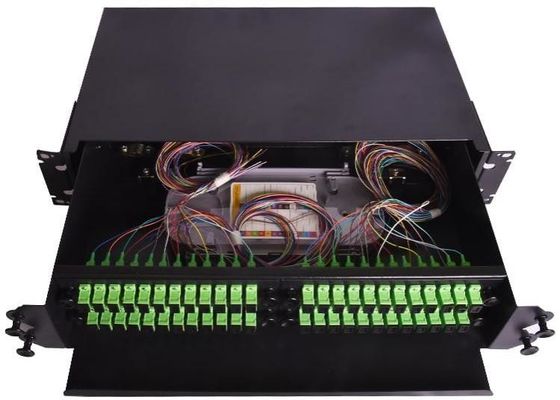

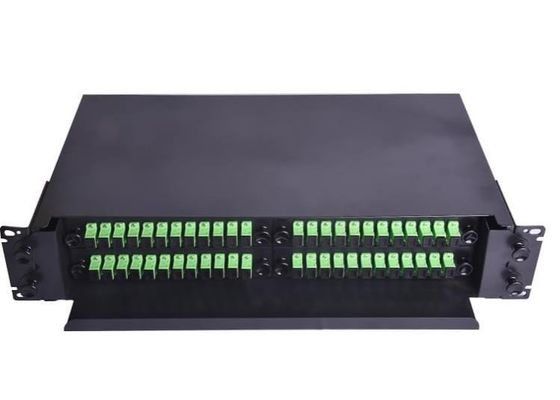

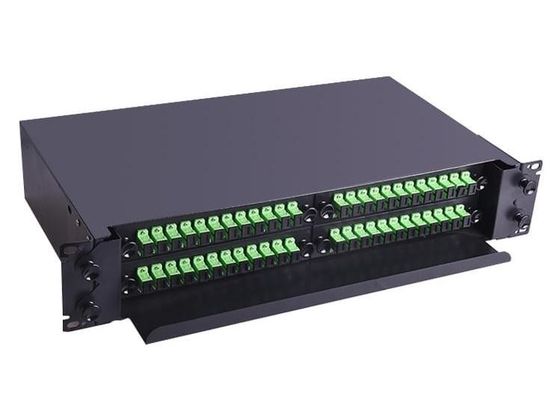

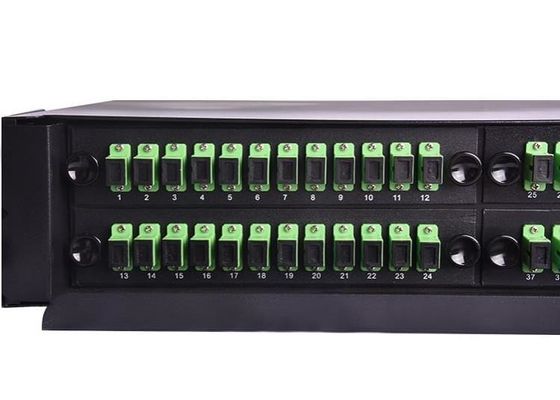

Fc Rack Mounted Fiber Optic Patch Panel ODF 19 Inch 48 Mouth Pull Type 0Fc Rack Mounted Fiber Optic Patch Panel ODF 19 Inch 48 Mouth Pull Type 1Fc Rack Mounted Fiber Optic Patch Panel ODF 19 Inch 48 Mouth Pull Type 2Fc Rack Mounted Fiber Optic Patch Panel ODF 19 Inch 48 Mouth Pull Type 3





















Application:

1.Fiber to the home(FTTH)
2.Optical network
3.Local area networks
4.Wide area networks
5.Telecommunication network
6.Central office optical cable system
7.Premise fiber network
