1u Optical Fiber Terminal Box 24 Ports Rack Mount Termination Box patch panel
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.
Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”, which ensures that they can be perfectly installed on to the commonly used standard transmission rack.
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 24 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx295mmx47mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 24pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-2 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. Standard size, light weight and reasonable structure
2. Splice tray inside changeable
3. Can be used in 19''standard distribution frame
4. Suitable for ribbon and single fiber
5. Various panel plate to fit different adapter interface
6. Front mark on the plate is easy for identification and operation
7. Come with fiber optic pigtails and adapters
8. Easy for management and operation
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

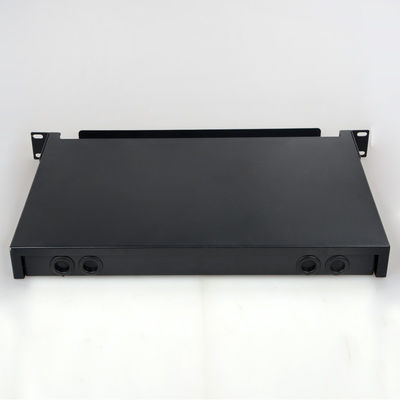

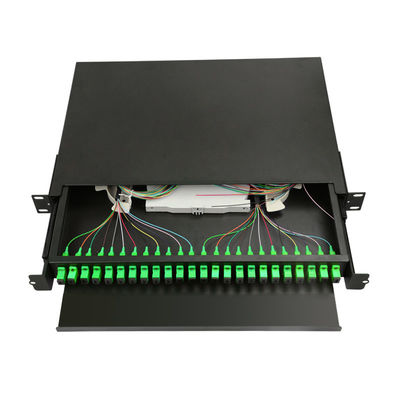

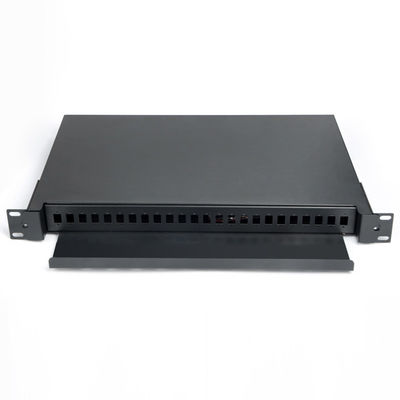

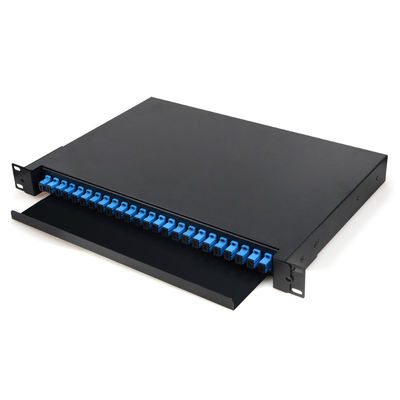

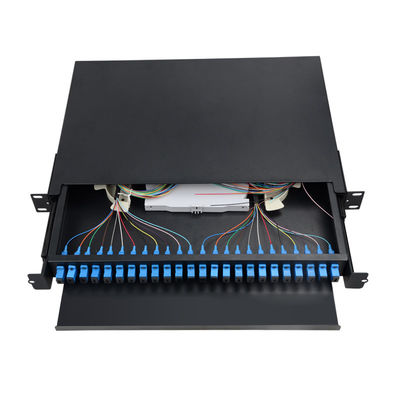

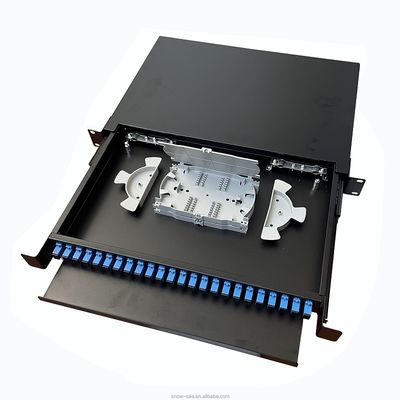

Details photos:
