16Port 18F 1*16 LGX PLC Fiber Optic Splitter Box SC/LC/ST/FC IP-65 Wall-mount
Description
FATB-0416L fiber access termination closure is able to hold up to 16subscribers. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 1*16 LGX PLC Splitter 16Port Fibra Optique Distribution Terminal Enclosure |
| Application | FTTX FTTH Solutions |
| Adapter Type | SC/LC/ST/FC |
| Fiber Type | SM/MM (OM1, OM2, OM3, OM4) |
| Material | PC+ABS |
| Dimension | 340*220*95MM |
| Protection Level | IP-65 |
| Fiber Bend Radius Control | ＞40MM |
| Mount Type | Wall-Mount/Pole-Mount/Aerial-Hanging |
| Color | Gray/Black |
Features
► Water-proof design with IP-65 Protection Level.
► Integrated with flap-up splice cassette and adaptor holder.
► Maximum 12F splice capacity, stainless anti-rust bolts and nuts.
► All stainless metal plate and anti-rusting bolts, nuts.
► Fiber bend radius control more than 40mm.
► Suitable for the fusion splicer or mechanical splice.
► 2pcs of 1*8 Splitter can be installed as an option.
► Mechanical sealing structure and mid-span cable entry.
► Easy for maintenance and expansion, neat cabling.
► 180 degree access with buckled lock structure.
► 18adapter for drop cable patching.
► 16pcs of mechanical ports for 3-7mm drop cable.
► 1 mid-span cable entrance (10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland (8-13.5mm).
Configuration
| Material | PC+ABS |
| Size |
340*220*95mm |
|
Max Capacity |
Splice 18 Fibers |
| Nos of Adaptor | LGX PLC Splitter 2pcs of 1x8 (SC) |
| 16pcs SC/APC or SC/UPC | |
| Weight | 1.85kgs |
| Color | Gray/Black |
Application
► Wall-mounted Installation
► Pole-mounted Installation
► Aerial-hanging Installation
► Suitable for 2x3mm indoor FTTH drop cable and outdoor 4-7mm figure-8 self-supporting drop cable
Standard Accessories
► Splice cassette and cable management tool
► Installation nuts and bolts
► Protection sleeves
► Hose clamp
► Cable tube
► Wrench
► Key
► Cover
► Holder
► Rubber seal for cable entrance
Optional Accessories
► Pole mounted kits/Pole ring

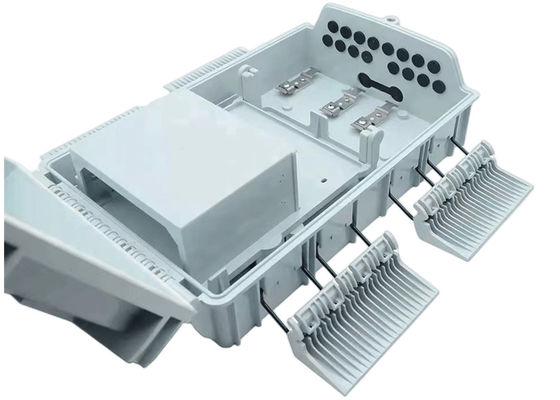

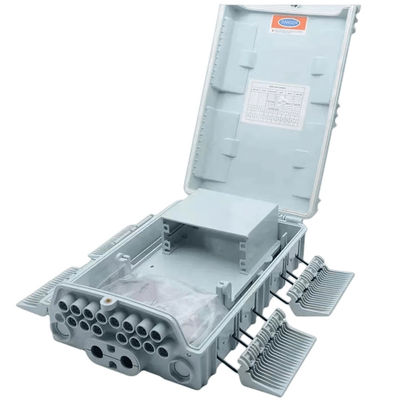

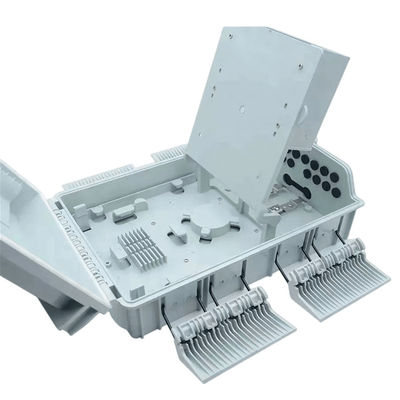

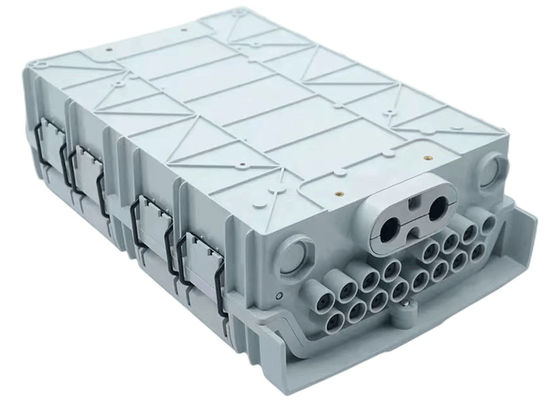

Details Picture
FAQ
► What’s your advantage? Why we choose you?
1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.
2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.
3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
► What’s the Payment?
T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.
► Are you a factory or trading company?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
► How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
► When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
► How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
