SM / MM Fiber Optic Splitter Box Light Grey 1x8 PLC Splitter

16Cores 1*16/1*8 PLC Fiber Optic Splitter Box SC/LC/ST/FC IP68 SM/MM Light Grey

Description

TW-FATM-0416S is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. It is one of Multicore fiber optic splicing box, the new model suitable for many situations and multidarious installation methods. It is fiber optic cable wiring terminals,mounted on the outside of the building,weather-proof box. It is ademarcation point during the fiber optic solutions.

Feature

► Total enclosed structure.
► Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
► Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
► Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.
► Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
► Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification

1. Environmental requirement

2. Main technical datasheet

3. Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2x10⁴ MΩ/500V (DC) ;

IR≥2x10⁴MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture,no flashover;

U≥3000V

Configuration

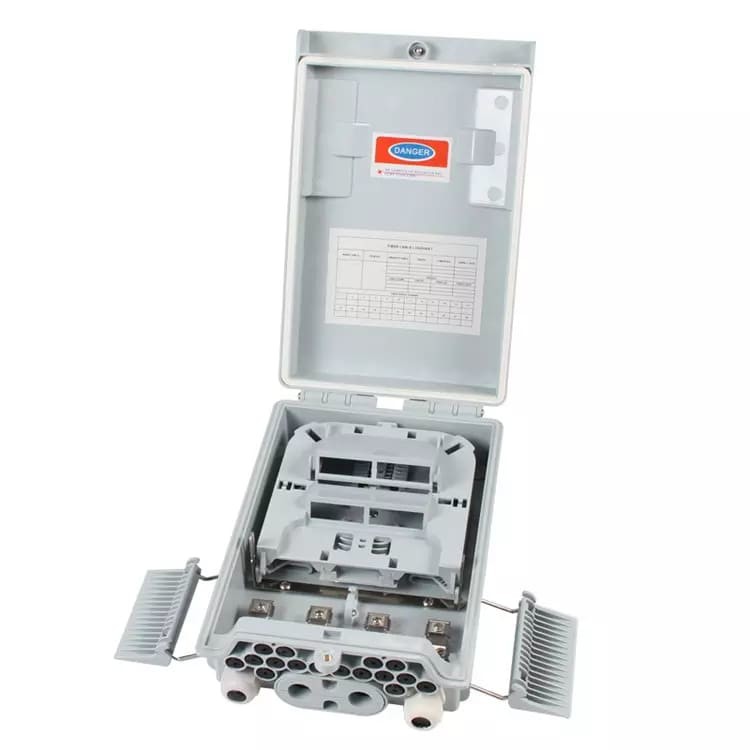

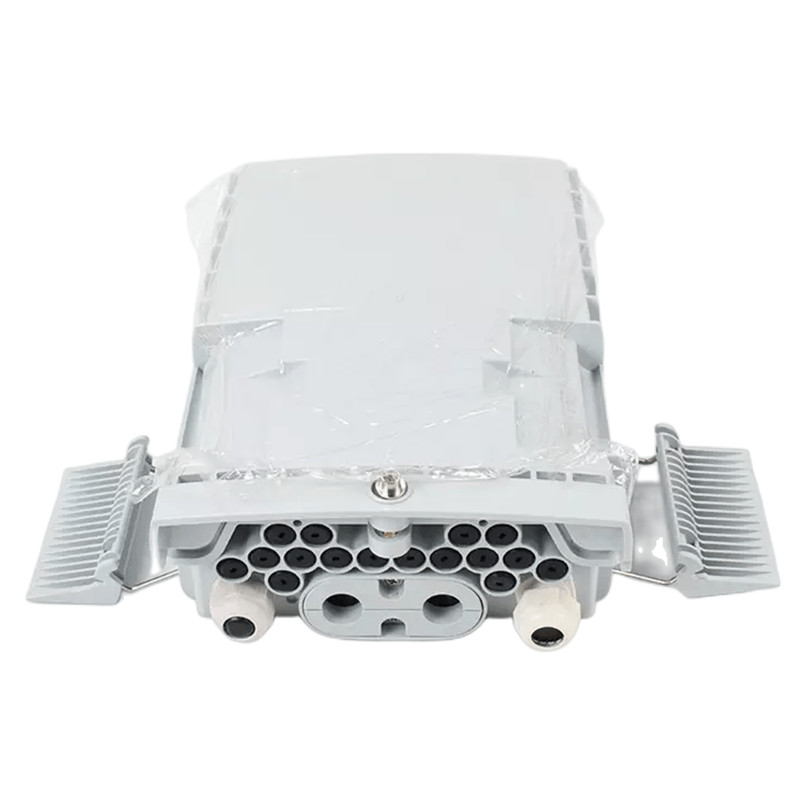

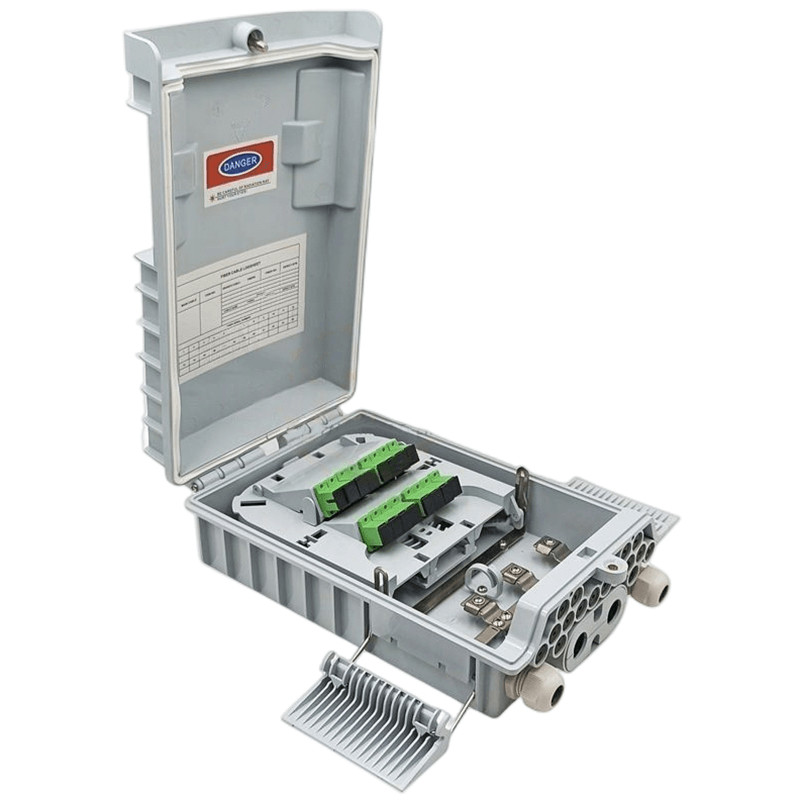

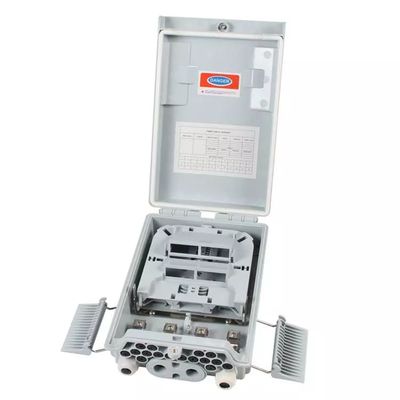

                                         Pic 1                                                                                            Pic 2

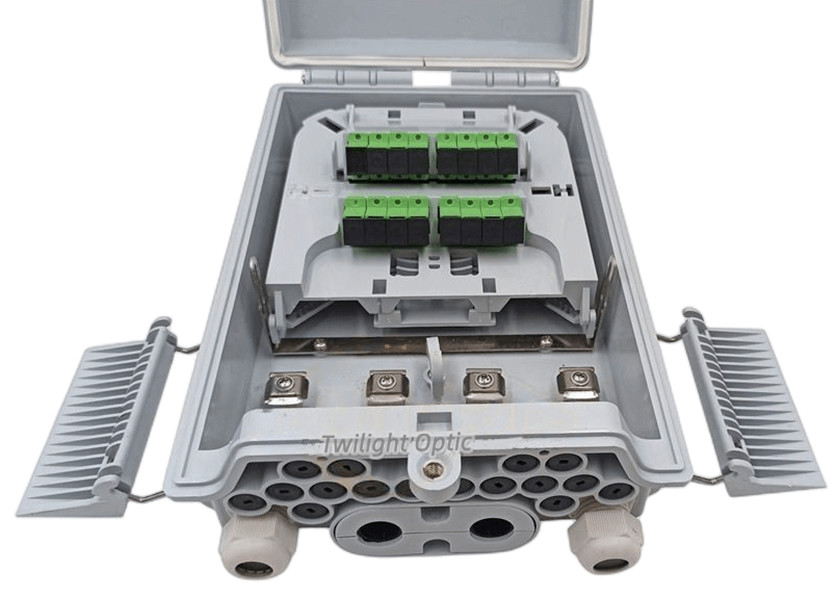

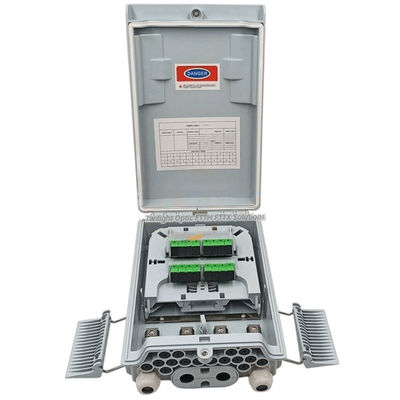

Product inside structure and cable ways

1. 16W Lid;                                                                                                                            10. FDB0212E C type flip plate;

2. 16W Base;                                                                                                                         11. FB0212E B type flip plate;

3. Connecting screw;                                                                                                             12. FDB0212E A type flip plate;

4. Rubber seal;                                                                                                                      13. Flip bracket;

5. Locked bolt;                                                                                                                       14. FDB026H Fiber fixer;

6. 8B/12D Door clip;                                                                                                              15. FDB0212E Grounding bracket;

7. 8B/12D Door clip connecting bracket;                                                                               16. PG13.5 Water proof blocker;

8. Loop ring;                                                                                                                           17. FDB0216W Cable exit mat;

9. The flap fixed bracket;                                                                                                        18. E type link-2;

                                                                                                                                               19. E type link -1;Cable ways

Installation

► Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten. (Pic 3)

► Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole. (Pic 4)

                                         Pic 3                                                                                         Pic 4

Accessories
1. Instructions *1
2. key *1
3. Simple hoop *2, back sheet *2 (optional).
4. Accessory Bag *1

Application

In fiber-to-the-premises systems, the signal is transmitted to the customer premises using fiber optic technologies. An optical network terminal (ONT) is used to terminate the fiber optic line, demultiplex the signal into its component parts (voice telephone, television, and Internet access), and provide power to customer telephones.

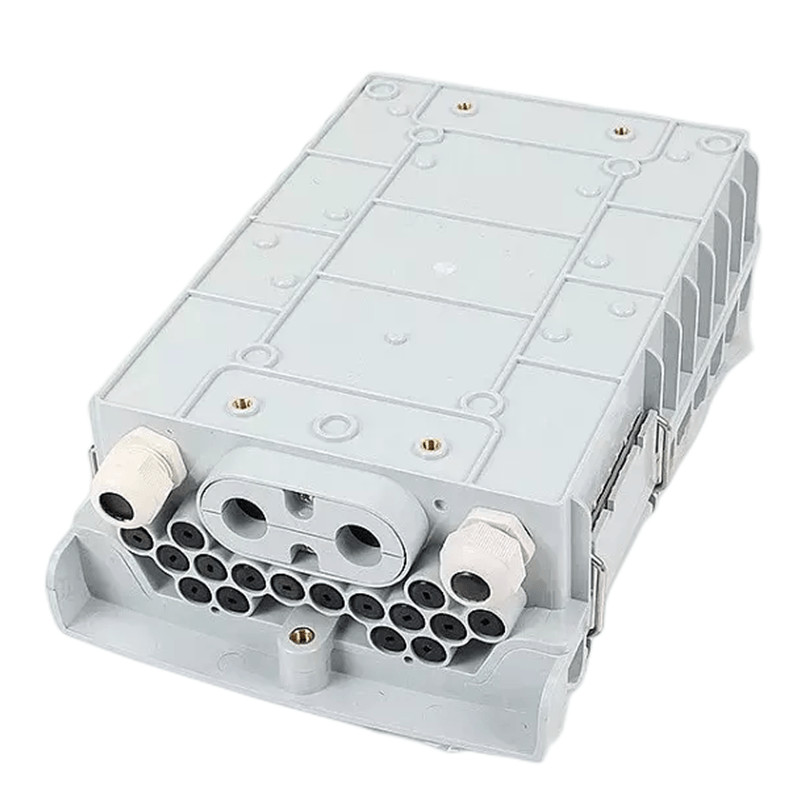

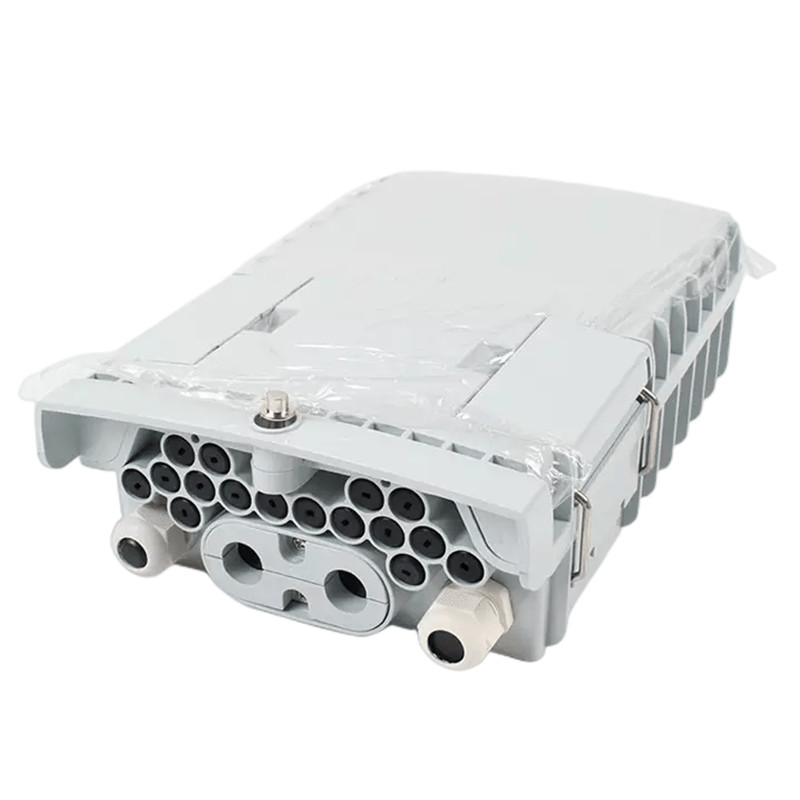

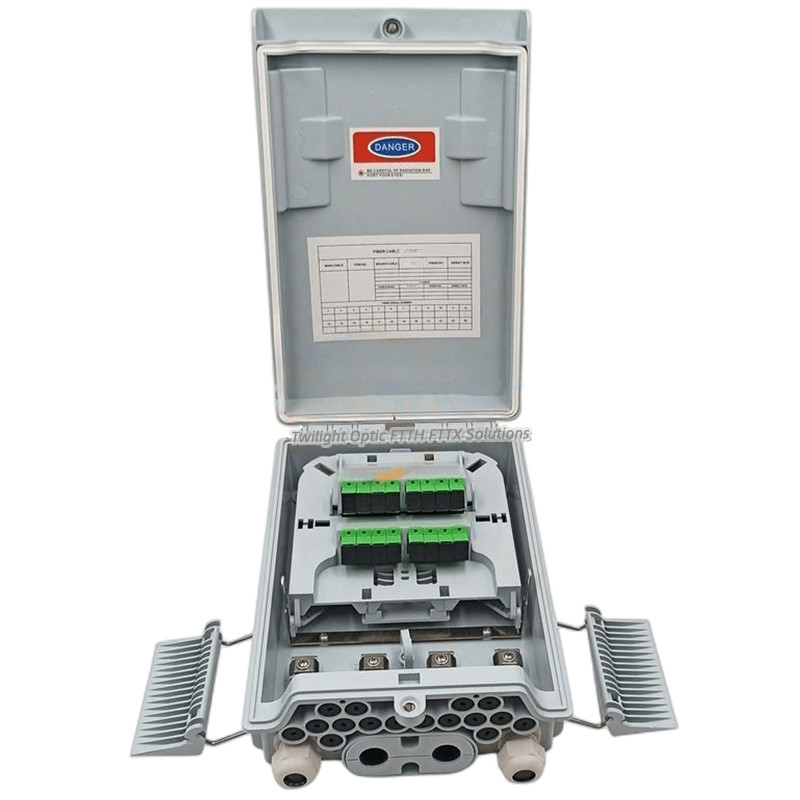

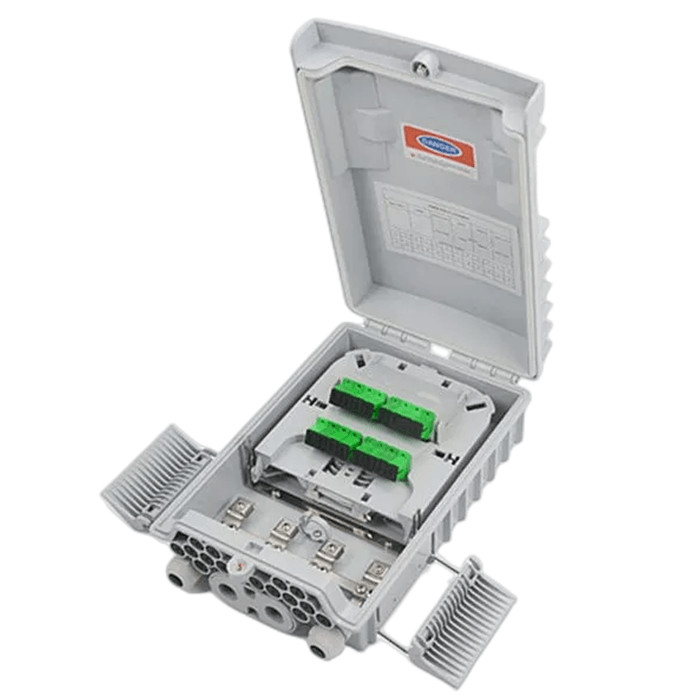

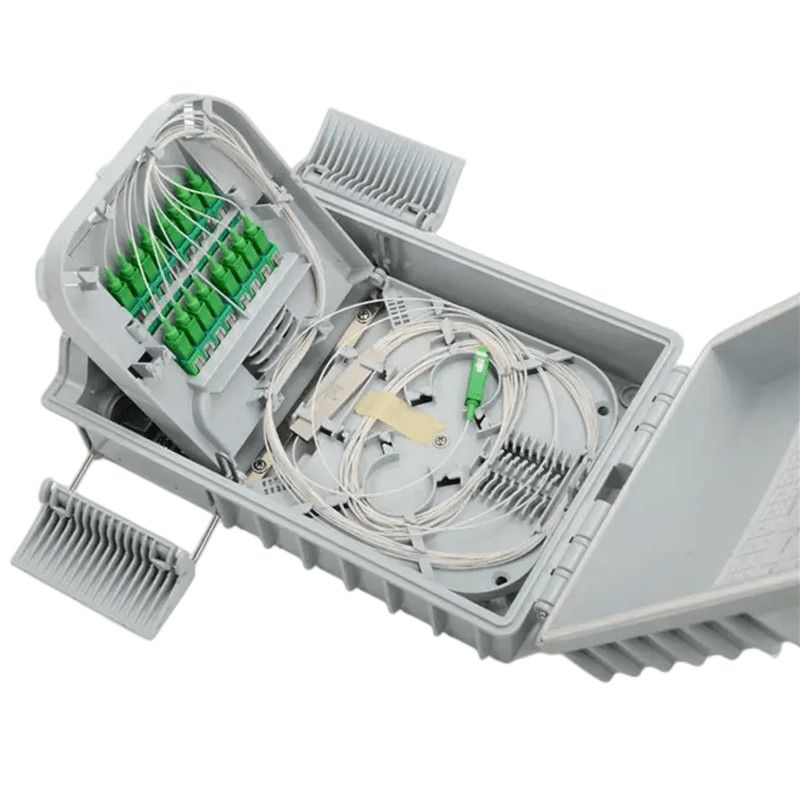

Details Picture

►  Can fix with 16ocs adapters and pigtails

►  Also Can fix with 2pc 1*8 or 1*16 PLC LGX Box Type
