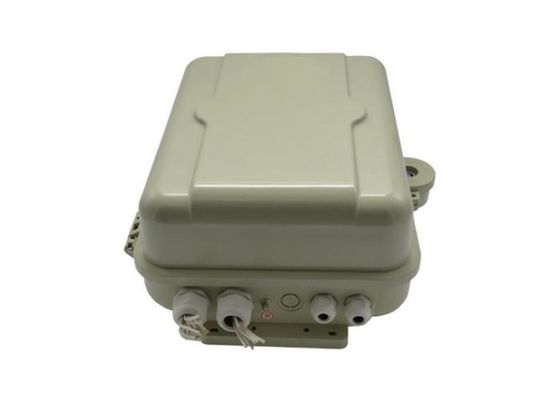

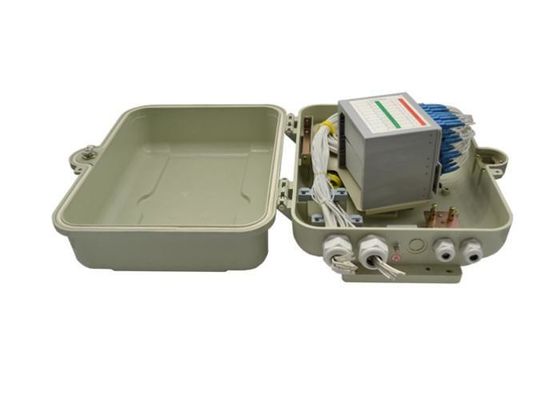

SMC FTTH Splitter Distribution Box LGX Wall Mount Or Pole Mount Light Gray
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Fiber Optic Termination Box | Adapter | SC LC |
---|---|---|---|
Material | SMC | Capacity | 1X32 LGX PLC Splitter |
Color | Light Gray | Dimension | 420*350*160MM |
Mounting Way | Wall Mounting | Cable Entry Ports | 2 |
High Light | SMC FTTH Splitter Distribution Box,FTTH Splitter Distribution Box,SMC Distribution Box LGX |
32cores SMC FTTH Splitter Distribution Box Wall Mount Or Pole Mount
Optical fibre cable distribution box is a distribution device for terminals in FTTH system. It provides protection and
management for fibre cables, and be used for terminating, cable branching, cross connection, and splitting.
It is mainly used at user access points in FTTH-ODN network.
It can be divided into indoor and outdoor type according to the installation scenarios, as well as distribution type
and optic split type according to the functions.
Characteristics
• High strength composite material (SMC), good mechanical performance, elegant appearance, sturdiness and durability
• Suitable for indoor and outdoor,, wall-mounted, pole, aerial installation
• Splitter Type: Insert splitter, 1:4, 1:8, 1:16, 1:32 • Turn-over structure, layout is reasonable, splicing zone below and distribution zone above
• FC, SC and LC adapters available , modular design, convenient for fixation and maintenance
• Fibre route reasonable, fibre bending radius at any place is greater than 30mm
• The mark is clear on each fibre connection and distribution
• The door opening angle is greater than 120° for easy operation and maintainance
• The splice tray can be taken down and put on the bench for splicing, convenient operation
• The redundant fibre is wound and protected
Specification:
Product name | Fiber Splitter Distribution Box |
Dimension( L×W×H ) | 420mm×350mm×160mm |
Weigth(kg) | 3.2kg |
Function | cable terminal,passive splitter |
Adaptor type | SC /LC |
Max ratio | 1*16/2*16 |
Max capacity(F) | 32 |
Material | SMC |
Applications:
Optical LAN & WAN & CATV
FTTH project & FTTX Deployments
Broadband High-bit rate data transmission
Active device terminations
Testing instruments
Optical fiber communication networks
PON Networks
Optical Signal Distribution
