FTTH 19 Inch 1U Rack Mount ODF Drawer Type 24 Cores SC LC FC ST Fiber Optic Patch Panel
Description:
Slidable Rack-mount Fiber Optic Distribution Frame has steel sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, FC, E2000 adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 24 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx295mmx47mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 24pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-2 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. The use of high-quality cold-rolled steel plate, electrostatic spray plastic on the surface, has good corrosion resistance
2. Suitable for the installation of SC / ST / LC / FC and other adapters, large capacity, can store redundant fiber jumper
3. Full-fiber walking path design, protect fiber jumper in the whole process, and protect its full radius ≥40mm
4. Various wiring units and accessories are complete, and can be selected according to needs
5.19 "standard size design, easy to install on the cabinet.
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

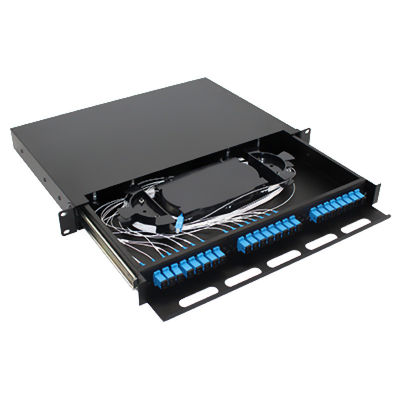

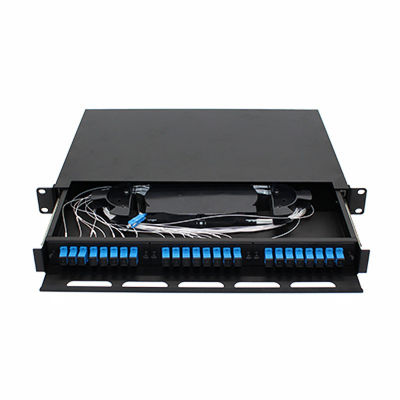

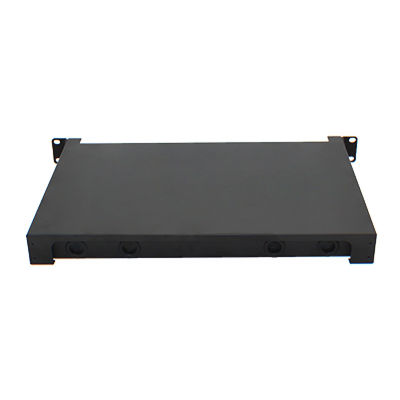

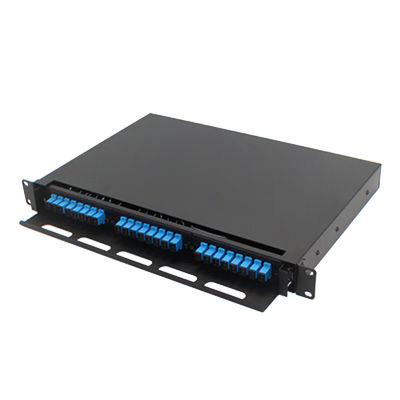

Details photos:
