ODF 24 Port 24 Core SC Fiber Optic Patch Panel Drawer Joint Termination Enclosure Box
Description:
The removable front panels chassis is a 19 inch 2U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.The flexibility of its two piece construction allows you maintain a stock of the chassis and then attach a suitable front panel as required
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 24 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx250mmx90mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 24pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-2 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request
2. Standard size is 1U, 2U, or 4U are available on request
12,24,48,96Port optional
3. Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
4. Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
5. Provide termination, protection, connection, management of fiber optic cable
6. Full assembly (loaded) or empty panel optional
7. Black or White color
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

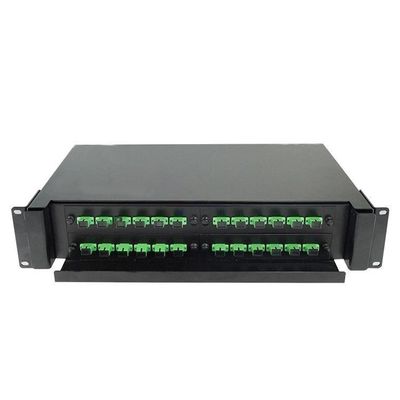

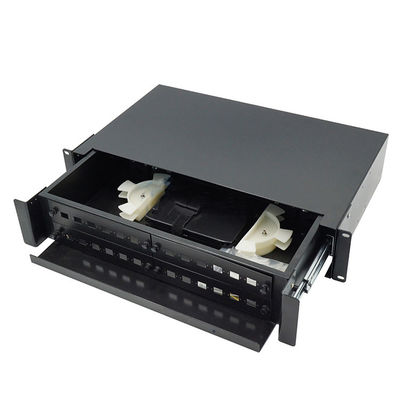

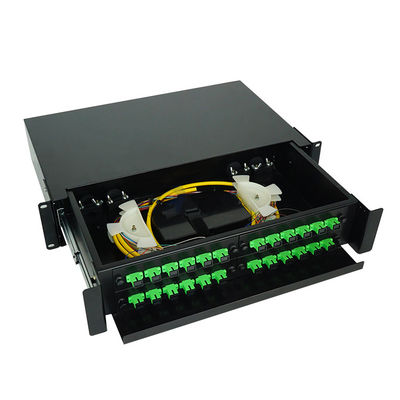

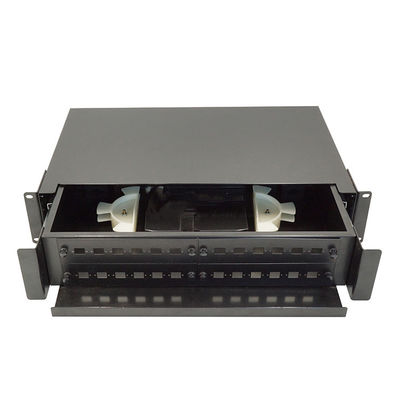

Details photos:
