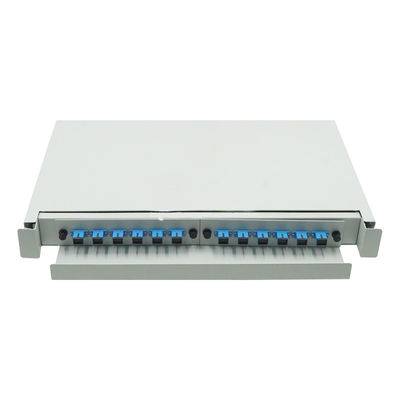

1U 12 Port SC Simplex 19 Inch Rack Mount Slide Patch Panel ODF
Description:

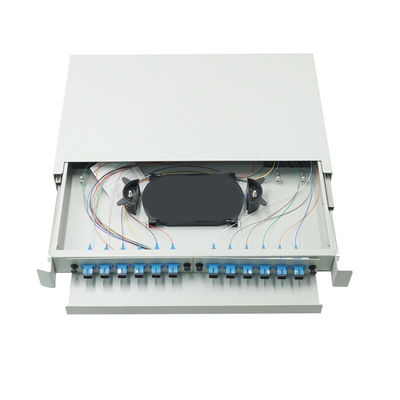

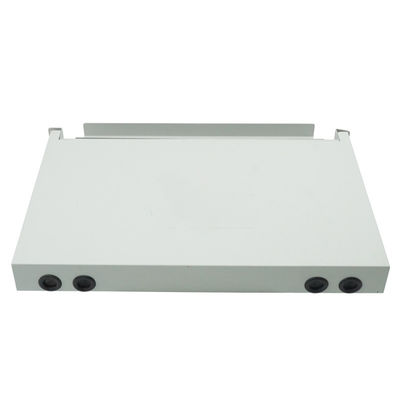

This slide rack mount fiber patch panel is designed to fit on a standard 19" rack and provide optimal protection for your fiber optic applications. There are 4 cable entry points on the back of the fiber housing fitted with rubber grommets to protect the fiber optic cable from damage. Along with being loaded with 12 SC connections, each fiber enclosure includes one cable routing spool and one 24 fiber splice tray. Also included are zip ties, cable routing clamps, mounting screws, fiber splice sleeves and installation instructions.
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 12 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx295mmx47mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 12pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-2 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
Rack mount, unique design with metal rails make the drawing easier and smoother.
Application for FTTX fiber wiring installation.
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

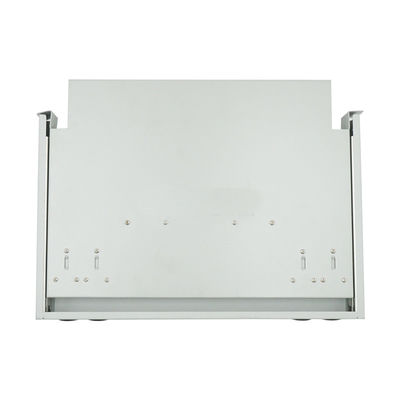

Details photos:
