Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core

Negotiable
MOQ
Negotiable
Price
Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fiber Patch Panel
Dimension: 430*363*44mm
Adapter: FC,ST,SC,LC
Type: Sliding Type
Material: Cold Rolled Steel
Capacity: 24core
Color: Black
Application: Rack Mount
High Light:

Rack Mount Fiber Optic Patch Panel

,

Fiber Optic Patch Panel Ventilated

,

Fiber Patch Panel 1U

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-DR05
Payment & Shipping Terms

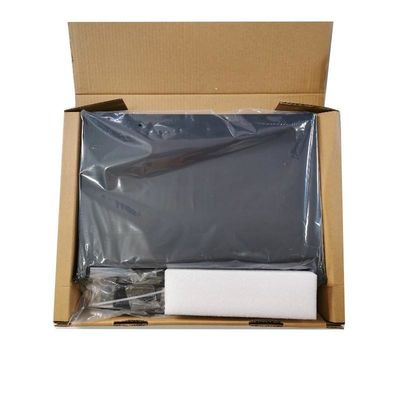

Packaging Details: Inner box and carton box,5 pcs/Carton Carton Size : 55*35*34cm G/W: 19KG
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

19-Inch Rack Mount Odf 24 Core Fiber Patch Panel 1u Case Ventilated

Description:

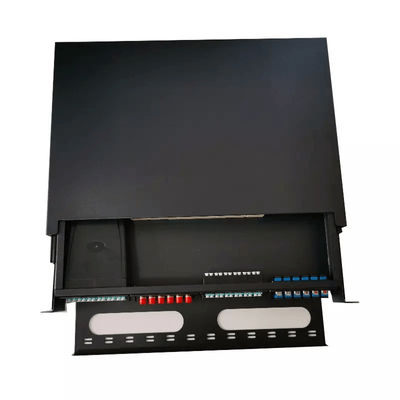

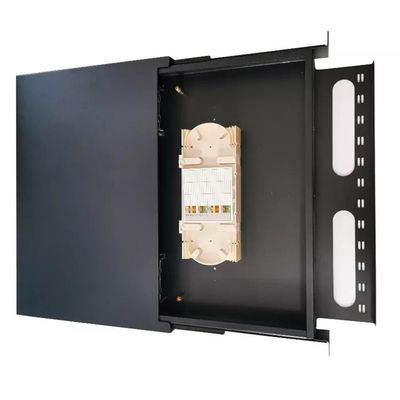

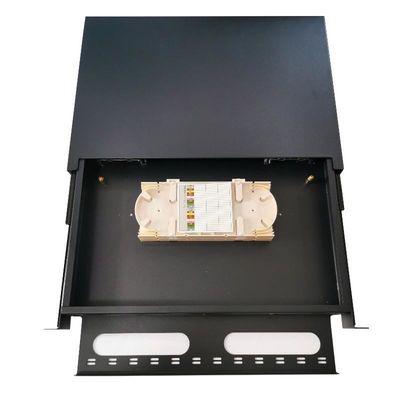

This rack mount fiber optic patch panel is loaded with short adapter panels, and 24 fiber splice trays. It also includes a smooth sliding drawer-type pull-out system for easy installation and maintenance.

Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”, which ensures that they can be perfectly installed on to the commonly used standard transmission rack.



Feature:

  •  Sliding 1U patch panel with defined stop for the drawer.
  •  Management front cable patchcords.
  •  Providing protective connections for optical fibers and distribution pigtails.
  •  Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
  •  1 U rackmount can be loaded with up to 3 Short adapter plates (6-, 8-, or 12- fiber panels).
  •  Can load SC, FC, ST, LC adapter, only change the different plates.







Specifications



Patch Panel Adaptor
Size(H×W×D )mm 430*363*44 Multimode Insertion Loss 0.2dB Maximum
Material Cold Rolled Steel Singlemode Insertion Loss 0.2dB Maximum
Material Coating Powder Mating durability >500 Mating Cycles
Humidity 0-90%, non-condensing Multimode Adaptor Wavelength 850 to 1300nm
Operating Temperature -10°C to 60°C Singlemode AdaptorWavelength 1310 to 1550nm
Storage Temperature -40°C to 85°C ROHS Compliant Yes







Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 0Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 1Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 2Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 3Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 4Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 5Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 6Rack Mount Fiber Optic Patch Panel 1U Ventilated 19 Inch ODF 24 Core 7
