12 Core Fiber Optic Patch Panel FC Rack Mount ODF Pigtail Pull Out

12 Core Fiber Optic Patch Panel FC Rack Mount ODF Pigtail Pull Out
Features Gallery Product Description Request A Quote
Name: Rack Mount Fiber Patch Panel
Adapter: FC,ST,SC,LC
Type: Sliding Type
Material: Cold Rolled Steel
Capacity: 12core To 24core
Color: Black Or White
Dimension: 485*295*47mm
Application: Rack Mount
High Light:

12 Core Fiber Optic Patch Panel


Fiber Optic Patch Panel Pigtail


Rack Mount ODF

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-DR04-1U
Payment & Shipping Terms
Packaging Details: Inner box and carton box,5 pcs/Carton Carton Size : 55*35*34cm G/W: 19KG
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

Rack Mount Fiber Patch Panel Optical Distribution Frame Odf Fc 12 Core Pigtail Pull-Out


An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.
Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”, which ensures that they can be perfectly installed on to the commonly used standard transmission rack.



  • Standard size, light weight and reasonable structure

  • Slide out drawer for easy cable management

  • FC, SC, ST, LC adapter patch panel for option

  • Front access panel design for easy operation

  • Suitable for 19’’ or 23’’ standard optic distribution cabinets

  • With metal front cover

  • 1 pcs splice trays (each 12 fibers)

  • Max. capacity 24 fibers

  • 4 fiber cable entry ports at rear side

  • White or black color

  • Splice tray inside changeable


    Front mark on the plate is easy for identification and operation
19inch Rack Mount
Cold Rolled Steel
Size W*D*H (mm)
Capacity (core)
12 to 24
Included accessories
4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes,
adapter screws
Product color

White or black color

Working temperature
Storage temperature

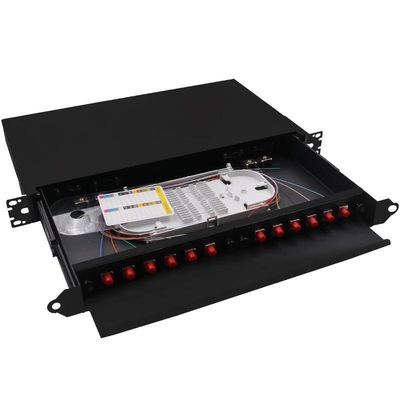

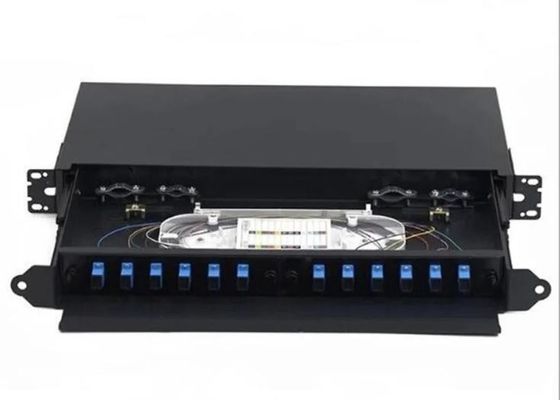

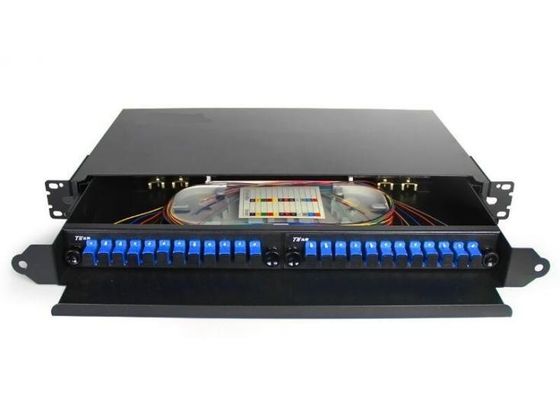

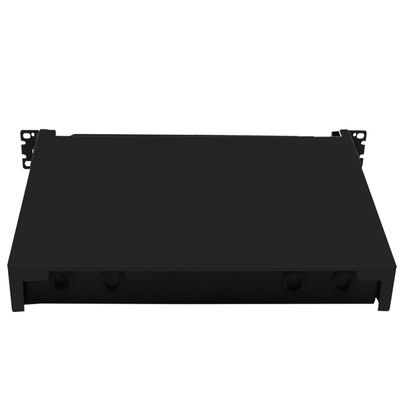

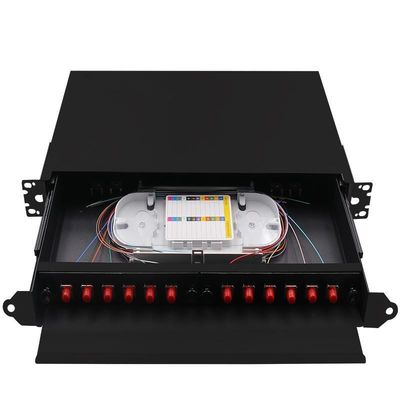

12 Core Fiber Optic Patch Panel FC Rack Mount ODF Pigtail Pull Out 012 Core Fiber Optic Patch Panel FC Rack Mount ODF Pigtail Pull Out 112 Core Fiber Optic Patch Panel FC Rack Mount ODF Pigtail Pull Out 212 Core Fiber Optic Patch Panel FC Rack Mount ODF Pigtail Pull Out 3










Twilight Optic Established in 2008,is a professional Hitech enterprise engaged in manufacture and distribution
of fiber optic products .Main products including fiber optic patch cord,pigtail, PLC splitter,adapter,FBT coupler,
media converter ,patch panel, splice closure etc.Which are applicate in Fiber optic telecommunications,LAN,FTTH,CATV&CCTV,
High speed transmission systems.

We also provide customers with one-stop optical fiber solutions, we can offer FTTH Solution products, data center solutions products, ODN solutions products, optical fiber cabling products,and various optical fiber equipment, testing tools, help customers to purchase all optical fiber products in one stop.Our products are exported to many foreign countries like USA, Canada, Australia, Spain, Brazil, Argentina, South Africa, Malaysia.We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.TWILIGHT OPTIC is looking forward to work with you.
