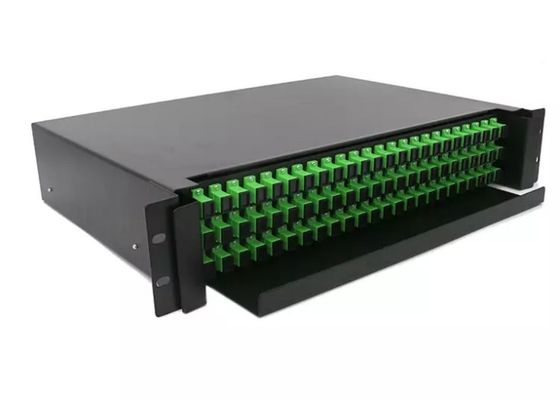

48 Ports Fc Simplex Slide-Out Optical Distribution Frame Odf 19inch 2u
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and
both side operation applicable in the branch connection of fiber termination ,working
as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the
cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor
fiber optic cables connection storage, distribution and management.
Features:
❖ Standard size, light weight and reasonable structure
❖ Slide out drawer for easy cable management
❖ FC, SC, ST, LC adapter patch panel for option
❖ Front access panel design for easy operation
❖ Suitable for 19’’ or 23’’ standard optic distribution cabinets
❖ With metal front cover
❖ 2-8 pcs splice trays (each 12 fibers)
❖ Max. capacity 48 fibers
❖ 4 fiber cable entry ports at rear side
❖ White or black color
|
Model
|
TW-DR03-2U
|
|
Type
|
19inch Rack Mount
|
|
Material
|
Cold Rolled Steel
|
|
Size W*D*H (mm)
|
485*295*47MM |
|
Capacity (core)
|
48
|
|
Included accessories
|
4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes,
adapter screws
|
|
Product color
|
White or black color |
|
Working temperature
|
-40~+85°C
|
|
Storage temperature
|
-40~+85°C
|
Application:
Telecommunications
Fiber to the home (FTTH)
LAN / WAN
CATV
