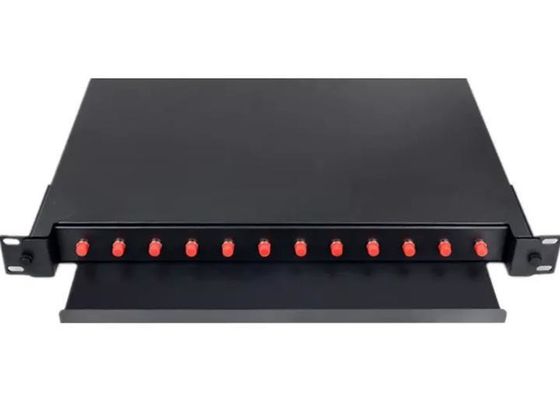

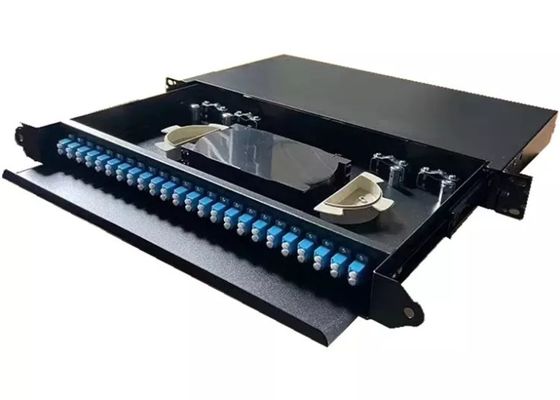

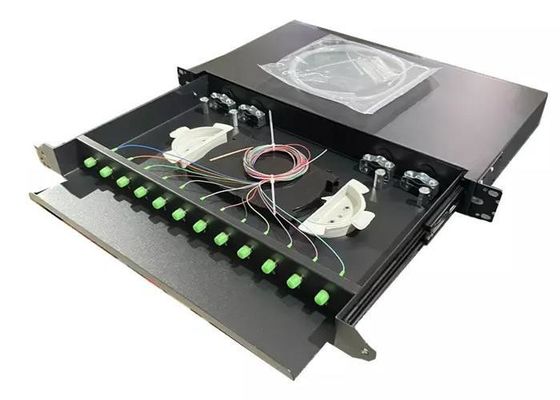

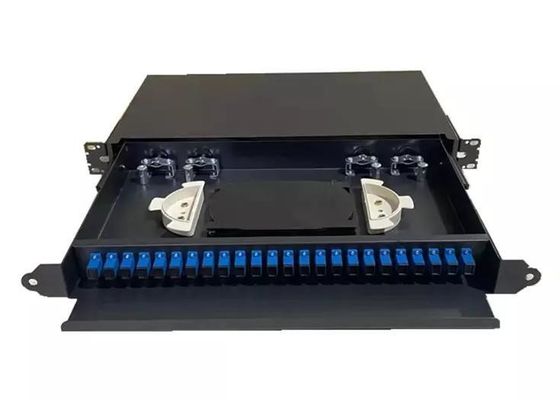

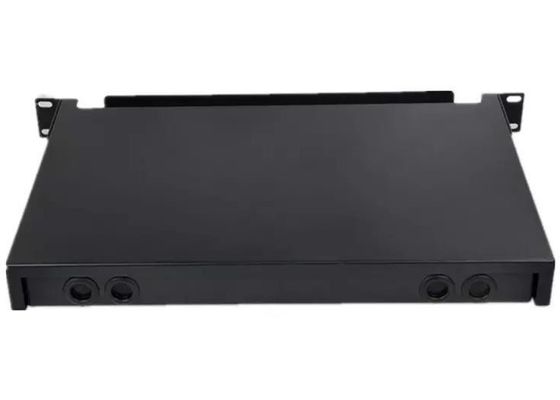

19inch Odf 12 24 Fc Drawing Type Fibre Optics Splicebox Fiber Distribution Unit Box
Description:
Fibre Optic Patch Panel is mainly used as terminal equipment of fiber optical cable for optical fiber wiring, fixation,
fusion, and patching. The Fibre Optic Patch Panel is a modulated design with drawable trays inside and cold-rolled
steel box. Fibre Optic Patch Panel could be pre-installed with various kinds of fiber optic adapters and pigtails.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
1 pcs splice trays (each 12 fibers)
Max. capacity 24 fibers
4 fiber cable entry ports at rear side
White or black color
|
Model
|
TW-DR03-1U
|
|
Type
|
19inch Rack Mount
|
|
Material
|
Cold Rolled Steel
|
|
Size W*D*H (mm)
|
485*295*47MM |
|
Capacity (core)
|
12 to 24
|
|
Included accessories
|
4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes,
adapter screws
|
|
Product color
|
White or black color |
|
Working temperature
|
-40~+85°C
|
|
Storage temperature
|
-40~+85°C
|
