IP68 Outdoor 24 Core 48 Core 72 Core 96 Core 144 Core Dome Type Fiber Optical Splice Closure
Product Description

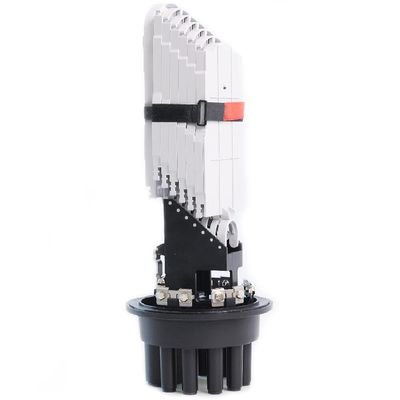

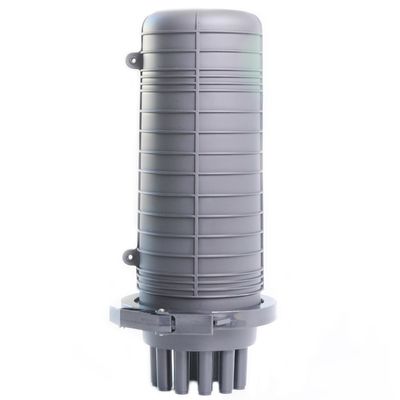

Type D021 fiber optic splice closure can be used for aerial,underground, pipeline and wall mounting. The suitable working temperature range is -40℃~+65℃. With 9 optical cable ports, the maximum capacity of bundle fiber can reach 144 cores, and the maximum capacity can be installed with 6 splicing trays. The waterproof grade can reach IP68.
Features
1. Heat shrinkable sealing structure.
2. High quality industrial plastic body material.
3. 1 oval hole and 8 round holes for cable entrancee.
4. Suitable for cable diameter 5mm-38mm.
5. Support aerial,underground,pipeline,man holes,hand holes.
6. Protection level reaches IP68.
7. 360 degrees access, fiber bending > 40mm.
8. Maximum capacity: 144 fibers.

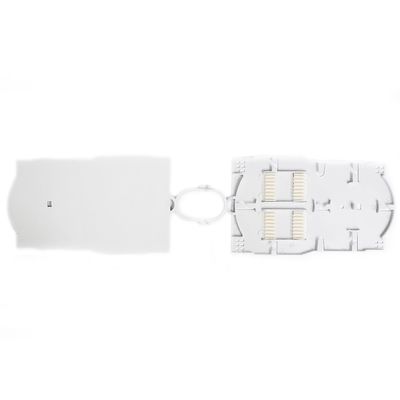

9. Number of splice trays: 6 pcs x 24F.
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | TW-GJS-D021 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 9 ports |
| Cable Diameter | 5-38mm |
| Maximum Capacity | 144 Cores |
| Capacity per Splice Tray | 24 Cores |
| Quantity of Splice Tray | 6pcs |
| Body Material | Strenathen Polymer Plastic |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 470(H)×210(D)mm |
| Net Weight | 2.3KG |
| Temperature | -40℃~65℃ |
