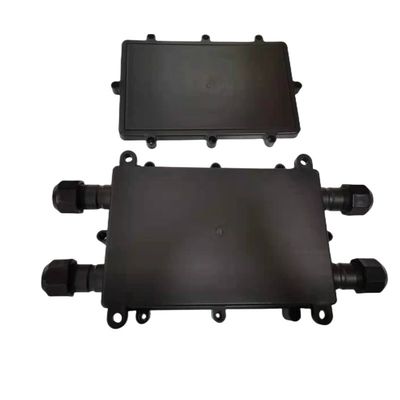

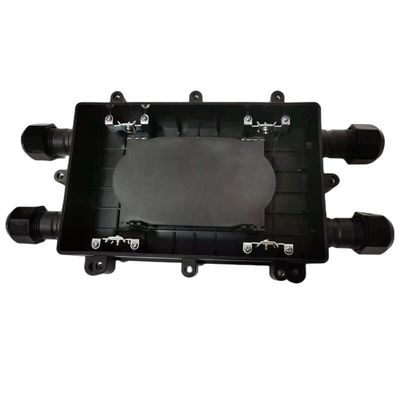

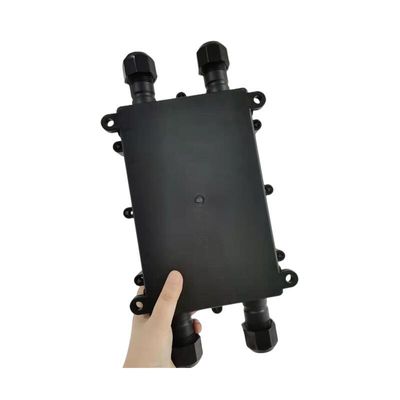

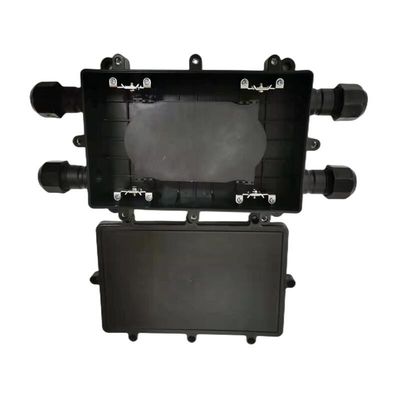

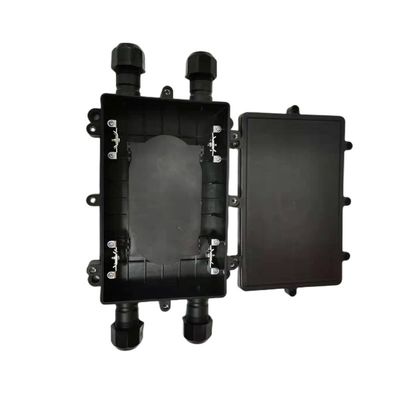

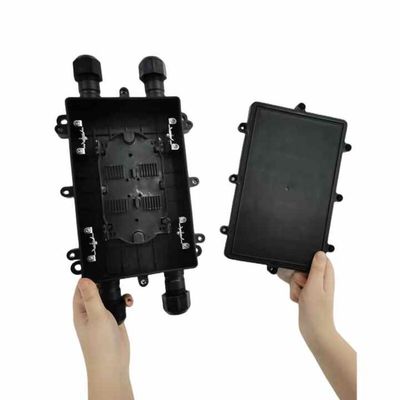

24 48 72 96 Core Outdoor Fiber Splice Enclosure 2in 2out Optical Fiber Closure For Overhead Pipeline Underground
Product Description
This product is suitable for cables applied in the straight line or branch line(one into two, one into three) connection of optical cables (≤φ22mm, single fiber or ribbon fibers), which can be laid overhead,in the pipeline, underground or in the well. It is also applied to the connection of all-plastic phone cables.
Features
1. All property indexes are in accordance with National YD/T814-2001 Standard.
2. The case body is made from imported high-intensity engineering plastics(ABS) and formed the shape with mould under high pressure. It is in the square shape, with the advantages of less
weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
3. The case body and cable entrance are sealed with adhesive rubber strip with reliable sealing capability. It can be re-opened and easy to maintain.
4. supplied with ports corresponding plug, so the users can choose them according to the actual use of optical cables.
5. Independent insulation grounding device, make the cable grounding flexible, convenient and safe.
6. Outer metal component and fixing unit are made from stainless steel, so it can be repeatedly used in different environment.
Advantage
Waterproof /Anti oxidation
Flame retardant/Earthquake resistant
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Precise connector
Specification
| Model | TW-GJS(04)-5E |
| Type | Inline type |
| Number of Inlet/Outlet ports | 4 ports,2in 2out |
| Cable Diameter | 10-22mm |
| Maximum Capacity | 96 fibers |
| Capacity per Splice Tray | 24Cores |
| Quantity of Splice Tray | 4pcs |
| Body Material | ABS |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 355(L)×180(W)×65(H)mm |
| Net Weight | 2.5~2.7KG |
| Temperature | -40℃~65℃ |
