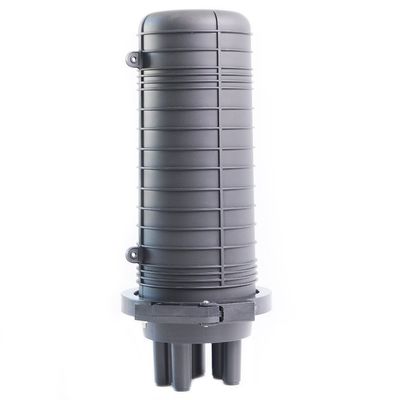

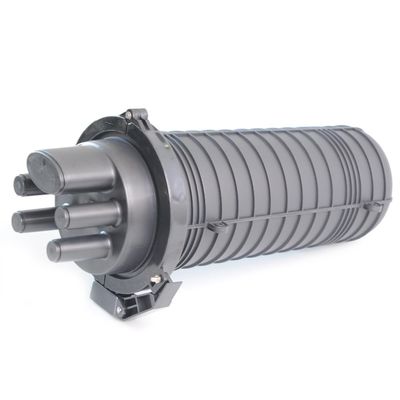

IP68 Outdoor Aerial 144Core Dome Type Fiber Optic Cable Splice Closure Joint Box Closure
Product Description
Fiber optic splice closure(fiber joint box) is used for connecting and protecting singal core or bunch cables. It can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. there are two types of sealing : mechanical & heatshrink.
Features
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Advanced internal structure design
6. Easy to re-enter, it never requires re-entry tool it
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | TW-GJS-D022 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 5 ports |
| Cable Diameter | 5-38mm |
| Maximum Capacity | 144 Cores |
| Capacity per Splice Tray | 24 Cores |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 470(H)×210(D)mm |
| Net Weight | 2.3KG |
| Temperature | -40℃~65℃ |
