ABS Fiber Optic Splice Closure 2In 2Out Horizontal Cable Joint Enclosure

Negotiable
MOQ
Negotiable
Price
ABS Fiber Optic Splice Closure 2In 2Out Horizontal Cable Joint Enclosure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 96Core 2in 2out Inline Splice Closure
Dimension (mm): 285*175*90
Cable Diameter (mm): Φ7-φ18
Cable Port: 2pcs 8-20mm Round Ports,4pcs 5-16mm Round Cable
Max. Splice Tray: 4pcs
Max. Fusion Splice: 96 Cores
Highlight:

ABS Fiber Optic Splice Closure

,

Fiber Optic Splice Closure 2In

,

Horizontal Cable Joint Enclosure

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-AFAT-002L
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week
Product Description

72 Fibers Fiber Joint Enclosure 2In-2Out Horizontal Fiber Optic Splice Enclosure



Product Description



8 in 8 out Fiber Optic cable enclosure provide with 8 fiber cable in-out round ports.It can be used in wall-mounting ,underground ,and direct buried application.This product is made of the high-quality ABS and with the mechanical sealing structure filled with the sealing material.



Features



1. Strip the outer jacket,inner jacket, loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of 1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core. The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray.



2. Lead the one end of the cable into the heat shrinkable tube on fusion splicing slots, heat appropriately to make the fiber and the protection tube integrated into one, and the protected optical fiber connector is snapped into the wiring groove; put on the PVC cover to prevent falling off.



Advantage



Waterproof /Anti oxidation
Flame retardant/Earthquake resistant
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Precise connector



Specification



Model TW-AFAT-002L
Type Inline type
Number of Inlet/Outlet ports 2pcs 8-20mm round ports,4pcs 5-16mm round cable
Cable Diameter 7-18mm
Maximum Capacity 96 fibers
Capacity per Splice Tray 24Cores
Quantity of Splice Tray 4pcs
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 285(L)×175(W)×90(H)mm
Net Weight 2.5~2.7KG
Temperature -40℃~65℃

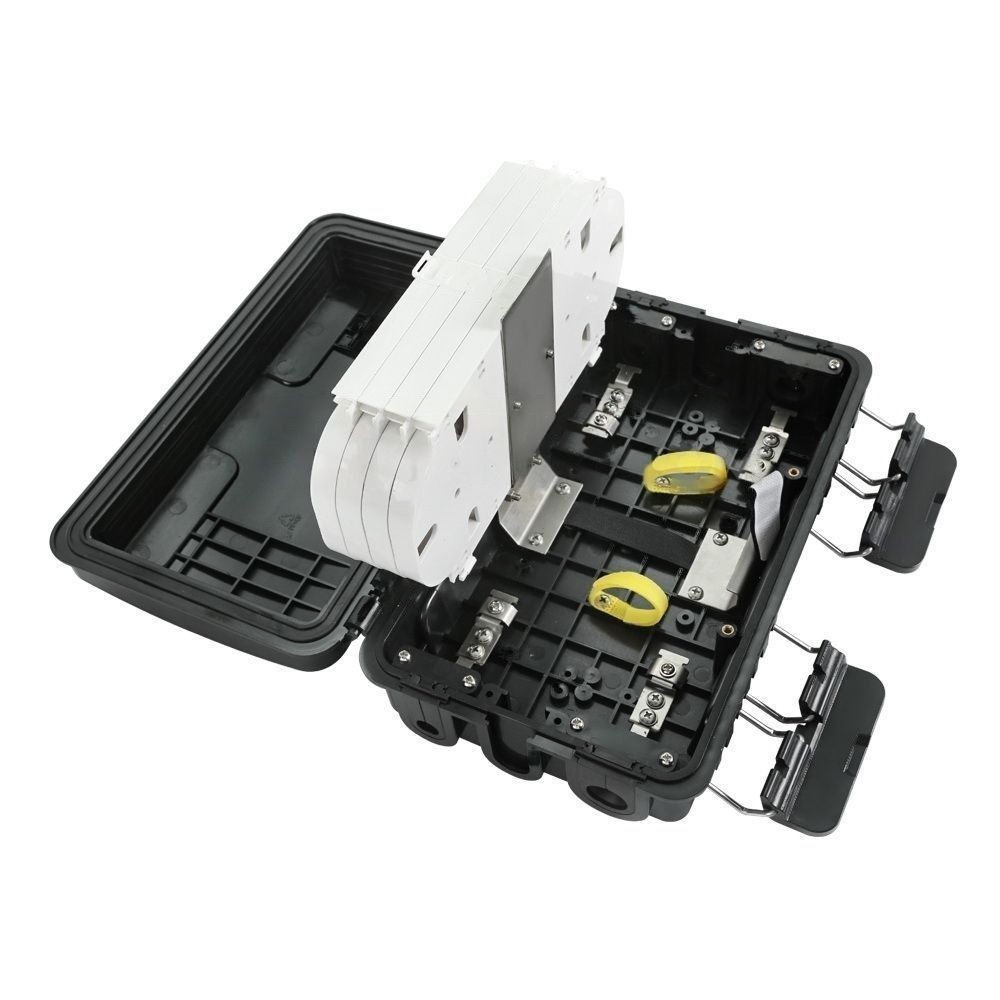

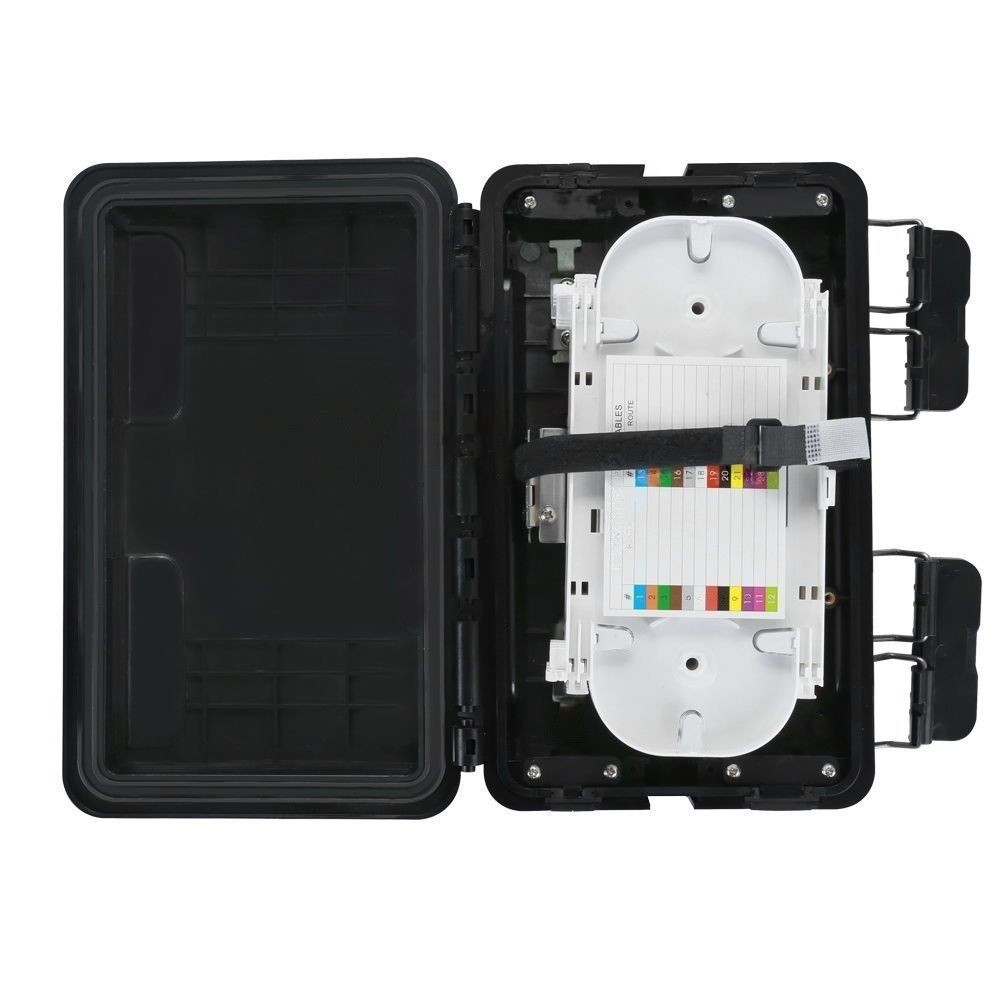

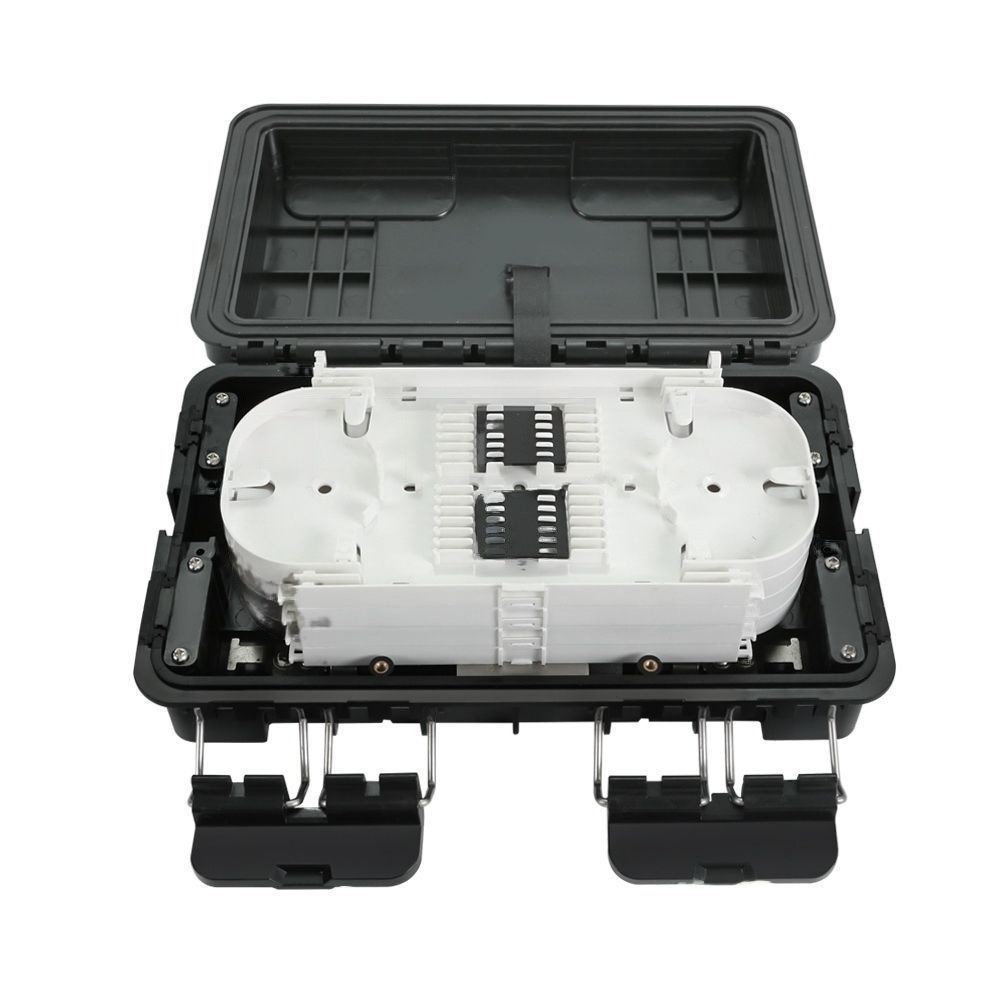

ABS Fiber Optic Splice Closure 2In 2Out Horizontal Cable Joint Enclosure 0ABS Fiber Optic Splice Closure 2In 2Out Horizontal Cable Joint Enclosure 1ABS Fiber Optic Splice Closure 2In 2Out Horizontal Cable Joint Enclosure 2



►Other Models

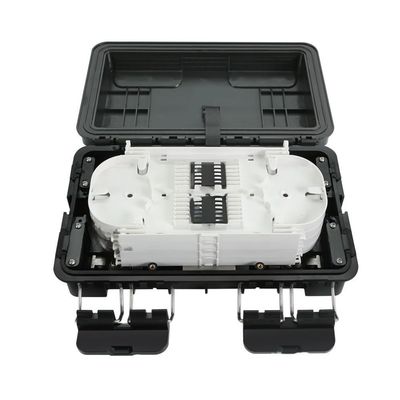

ABS Fiber Optic Splice Closure 2In 2Out Horizontal Cable Joint Enclosure 3
