2U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter

Negotiable
MOQ
Negotiable
Price
2U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Optical Distribution Enclosure
Thickness: 1.0mm,1.3mm
Connector Port: FC Simplex
Dimension: 430*200*83mm
Height: 2u
Type: Fixed
Material: Cold-roll Steel
Capacity: 48 Fibers
Color: Black
Atmospheric Pressure (Kpa): 70 ~ 106
Highlight:

2U Optical Fiber Distribution Panel

,

Optical Fiber Distribution Panel Fc

,

Fiber Distribution Box Enclosure

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-RM02-2U-FC
Payment & Shipping Terms
Packaging Details: Inner box and carton box,5 pcs/Carton, Carton Size : 47*47*54cm, G/W: 30KG.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

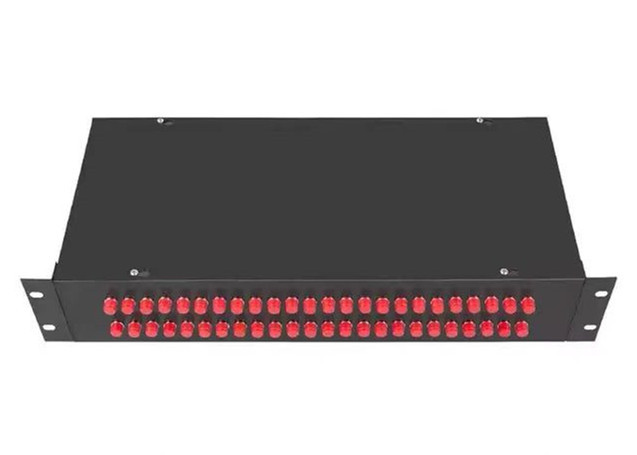

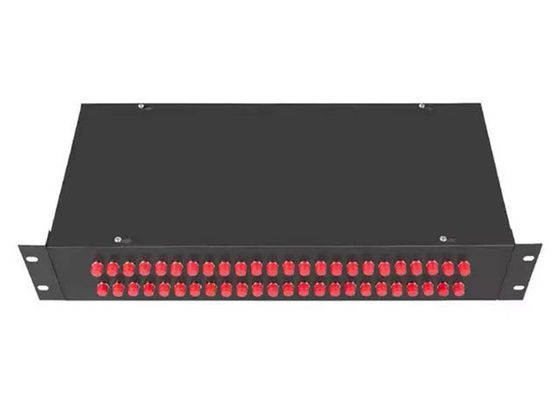

Optical Distribution Enclosure Rack Mount Enclosure 19" 2u 48 Fibers With Fc Adapter

Description:

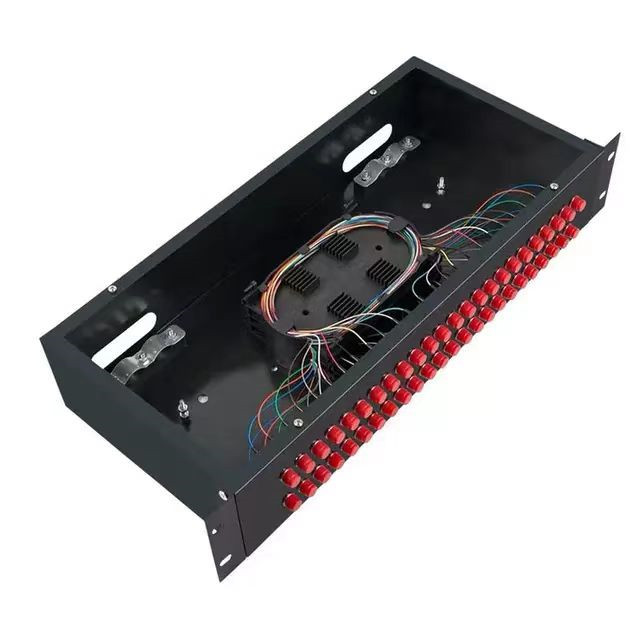

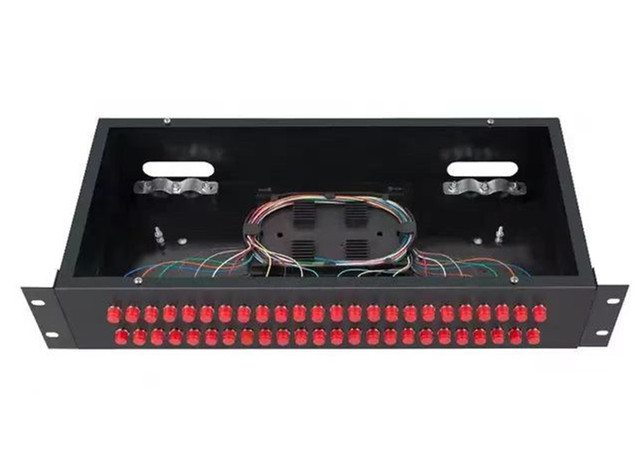

TW-RM02-2U-FC is made of 2U 19" cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. It provides an economical way of splicing fiber cables in communication room or existing equipment racks where space is constrained.

Apply to termination point of optical fiber access network, and comply with LC, FC, ST or SC adapter. The function of wiring and splicing realize flexible wiring and storage cable core.



Feature:
  • Cold-roll steel, electrostatic painting

  • ABS plastic tray inside, 12~24 cores per tray

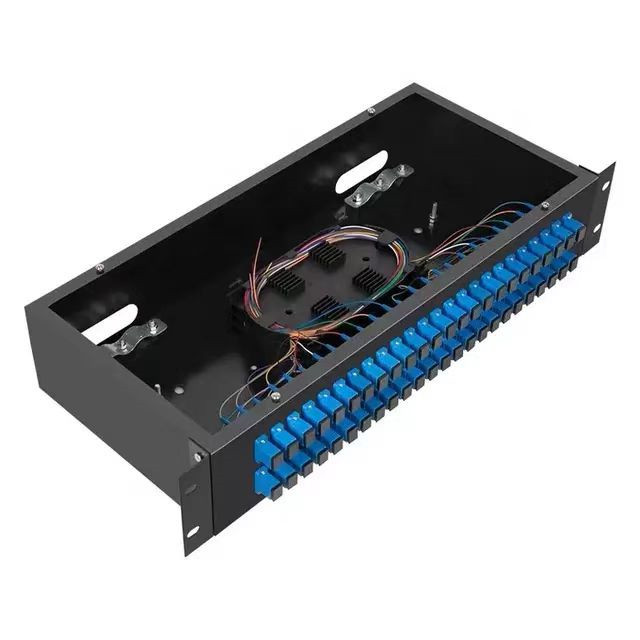

  • Different adapter plate available: FC, SC, LC, ST…

  • Suitable for 19’’ standard optic distribution cabinets

  • With front cover; 4 fiber cable entry ports at rear side

  • Cable entry ports suitable for single fiber, bundle & ribbon fiber cables

  • Rack mouted fixed type, indoor using;

  • White, black, grey … color painting optional

  • 12 / 24 / 48 / 72 / 96… capacity customised





Technical Specification

Material Cold rolled steel sheet
Thinckness of the steel sheet 1.0mm,1.3mm
Painting method Electrostatic Painting
Color Black

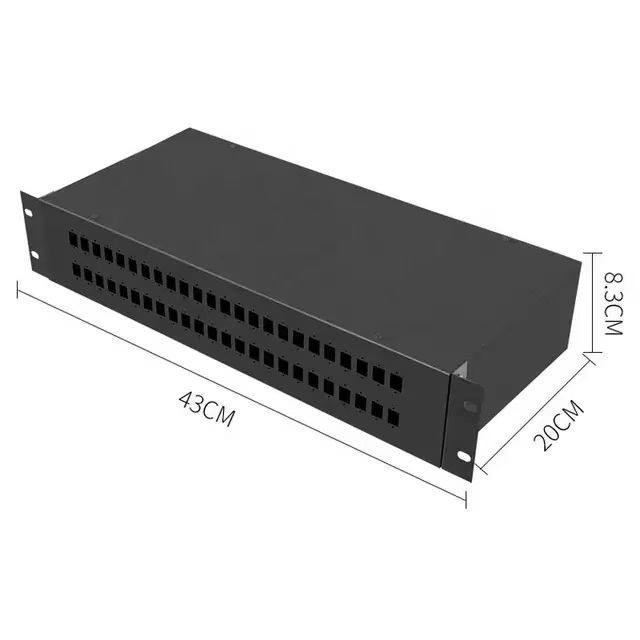

Dimension 430*200*83mm
Capacity 48 Core
Adapter FC Simplex
Atmospheric pressure 70kPa~106kPa
Application Rack Mounted



 2U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter 02U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter 12U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter 2

2U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter 32U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter 4

Application:
Telecommunications
Fiber to the home (FTTH)
LAN/WAN
CATV

OUR FACTORY
Twilight Optic Established in 2008,is a professional Hitech enterprise engaged in manufacture and distribution
of fiber optic products .Main products including fiber optic patch cord,pigtail, PLC splitter,adapter,FBT coupler,
attenuator,connector,
media converter ,patch panel, splice closure etc.Which are applicate in Fiber optic telecommunications,LAN,FTTH,CATV&CCTV,
High speed transmission systems.

We also provide customers with one-stop optical fiber solutions, we can offer FTTH Solution products, data center solutions products, ODN solutions products, optical fiber cabling products,and various optical fiber equipment, testing tools, help customers to purchase all optical fiber products in one stop.Our products are exported to many foreign countries like USA, Canada, Australia, Spain, Brazil, Argentina, South Africa, Malaysia.We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.TWILIGHT OPTIC is looking forward to work with you.

OUR ADVANTAGE
We have 8 production lines for standard jumper and 4 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on,All the products will be test 100% before shipment .
