Fixed Odf Fiber Distribution Patch Panel 19”2u Rack Mounted 48 Fibers
Description:
19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable
and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation
is convenient.
Cold-roll steel, electrostatic painting
ABS plastic tray inside, 12~24 cores per tray
Different adapter plate available: FC, SC, LC, ST…
Suitable for 19’’ standard optic distribution cabinets
With front cover; 4 fiber cable entry ports at rear side
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
Reasonable design ensures the cables are in good order
Rack mouted fixed type, indoor using;
White, black, grey … color painting optional
12 / 24 / 48 / 72 / 96… capacity customised
Technical Specification
| Material | Cold rolled steel sheet |
| Thinckness of the steel sheet | 0.8mm,1.0mm,1.3mm |
| Painting method | Electrostatic Painting |
| Color | Black |

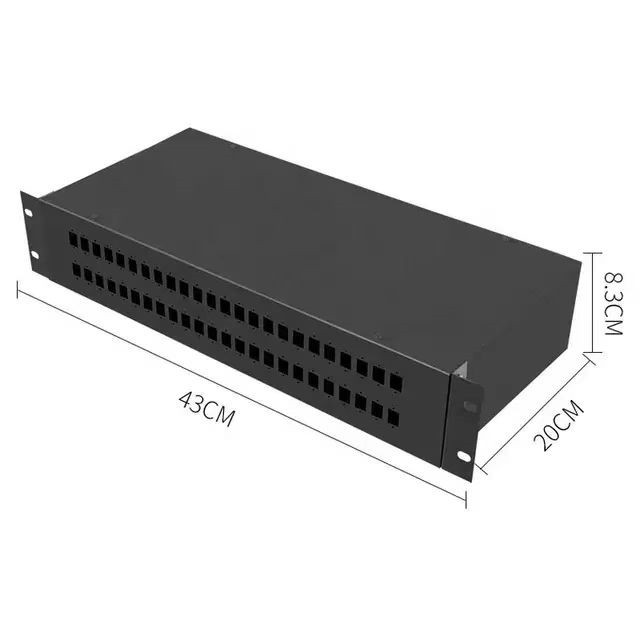

| Dimension | 430*200*83mm |
| Capacity | 48 Core |
| Adapter | FC/SC/ST/LCD |
| Atmospheric pressure | 70kPa～106kPa |
| Application | Rack Mounted |
