19" 1U 24 Port ODF Optical Distribution Frame Rack Mount 24 Core Fiber Patch Panel
Description:
The fiber optic splice tray could be piled one upon another, flexible to turn.
The box are Rack Mounted, which is convenient to install and dismantle.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 24 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx295mmx47mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 24pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-2 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
4. Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

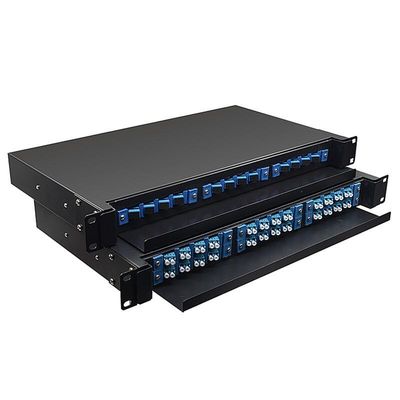

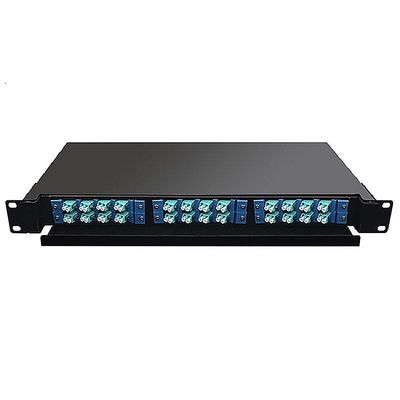

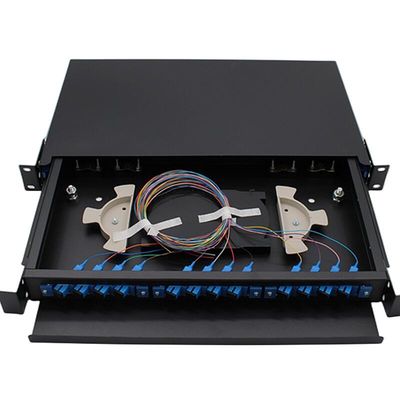

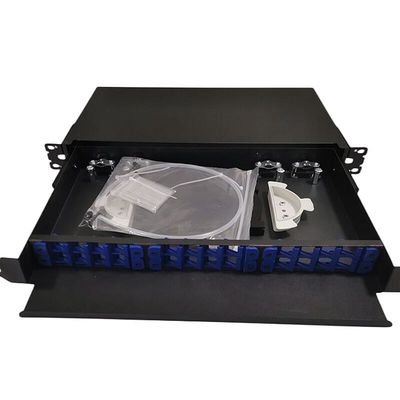

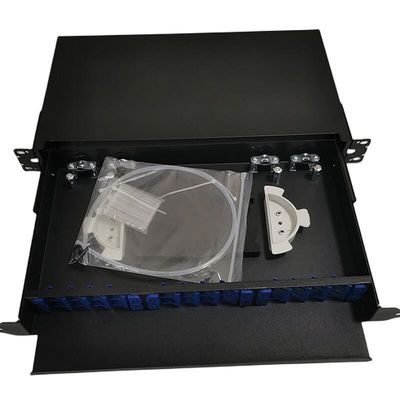

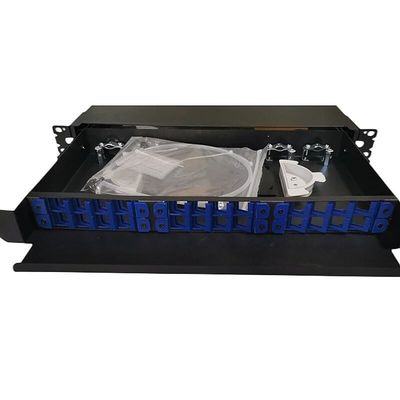

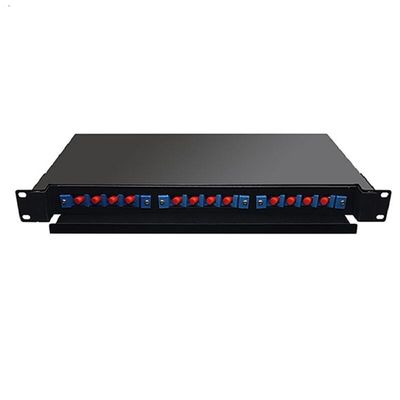

Details photos:
