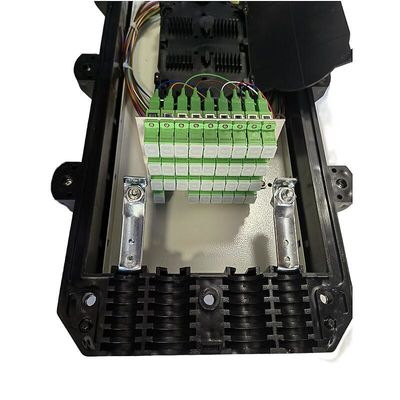

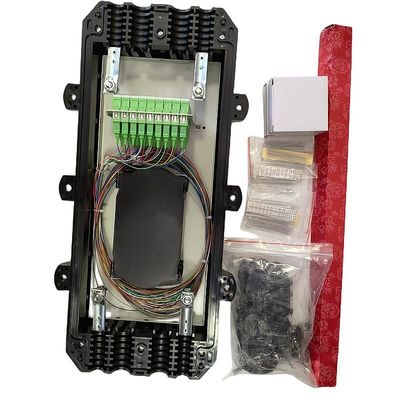

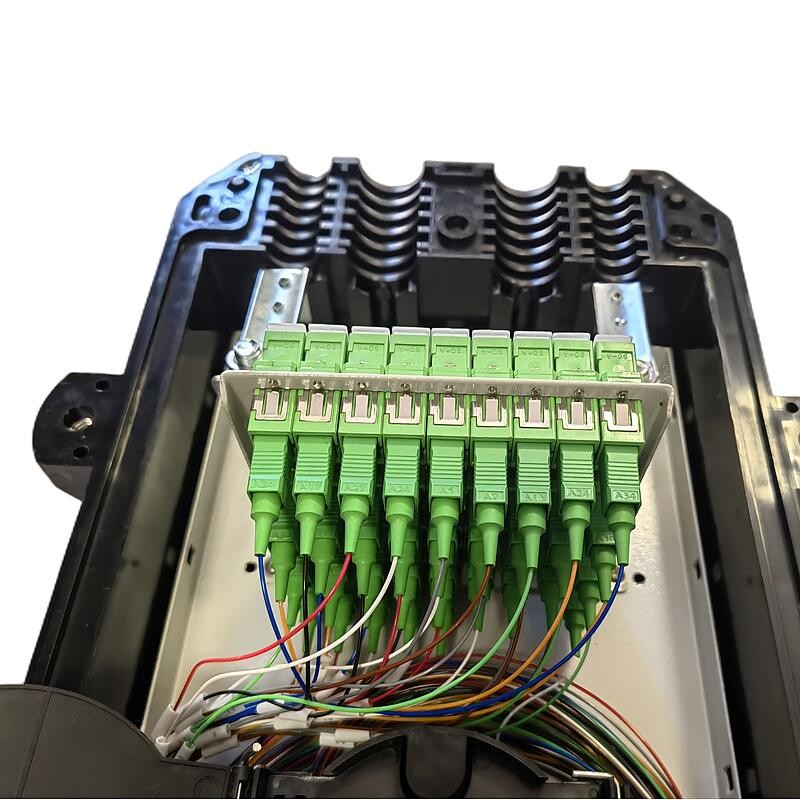

FOSC 72 Cores Fiber Joint Enclosure 4in 4out Optical Fiber Splice Enclosure
Product Description
TW-GJS(04)-7B-SC32 FOSC is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resistingwild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.The product can be opened again and reusedafter installation
Application
1. Direct buried installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access layer
| Model | TW-GJS(04)-7B-SC32 |
| Type | Inline type |
| Number of Inlet/Outlet ports | 4 ports |
| Cable Diameter | 10-22mm |
| Maximum Capacity | 72 Cores |
| Capacity per Splice Tray | 24core |
| Quantity of Splice Tray | 3pcs |
| Body Material | PC |
| Sealing Material | Sticky cincture |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 470(L)×240(W)×120(H)mm |
| Net Weight | 3.4kg |
| Temperature | -40℃~65℃ |
