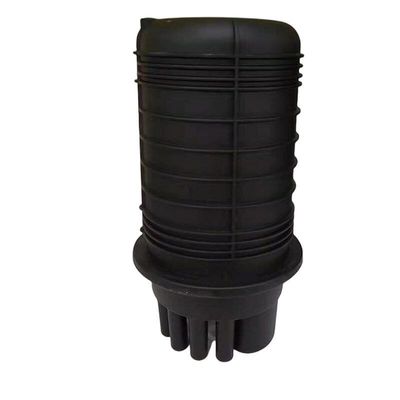

144 Core Fiber Optic Enclosure Dome Closure Outdoor Mini Fiber Joint Box Waterproof Ip68
Product Description
A type of dome closure series, used for direct connection during optical fiber transmission process, and provides joint connection protection, with 10 small round cable holes and 1 large cable hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | TW-GJSM11/RS-AS |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 11 ports |
| Cable Diameter | 7-12mm |
| Maximum Capacity | 144 Cores |
| Capacity per Splice Tray | 24 Cores |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 320(H)×230(D)mm |
| Net Weight | 3.1KG |
| Temperature | -40℃~65℃ |
