Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Splice Enclosure 96 Cores
Dimension(mm): 435mm X Φ190mm
Number Of Splice Trays: 1~4ieces(24F/tray)
Number Of Inlet/Outlet Ports: 4 Pieces(1 X Oval + 3 X Round)
Diameter Of Fiber Cable: Φ7mm~Φ18mm
Max Capacity: 96Core
Highlight:

Vertical Splice Closure Fiber Optic

,

Dome Splice Closure Fiber Optic

,

Fiber Optic Cable Connection Box FTTH

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-GJSM3/RS
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week
Product Description

96 Cores Vertical Dome Fiber Optic Cable Connection Box Fiber Splice Closure Box



Product Description

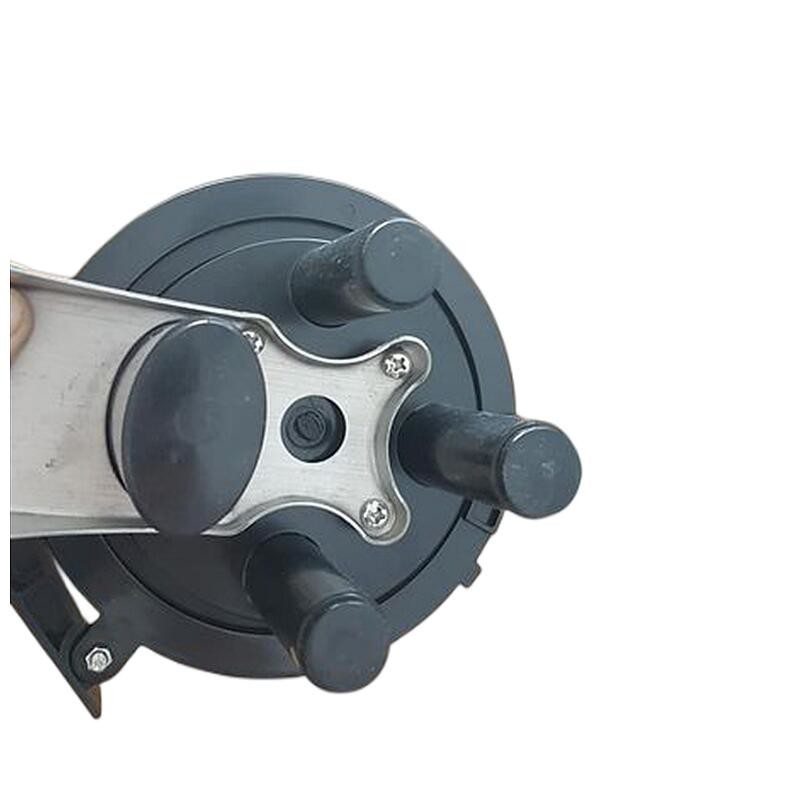

The GJSM3-RS Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four entrance ports on the end (three round ports and one oval port).





Application



1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver







Model TW-GJSM3/RS
Type Dome type
Sealing Structure Heat shrinkable
Number of Inlet/Outlet ports 4 ports
Cable Diameter 7-18mm
Maximum Capacity 96 Cores
Capacity per Splice Tray 24 Cores
Quantity of Splice Tray 4pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 435(H)×190(D)mm
Net Weight 2.5KG
Temperature -40℃~65℃

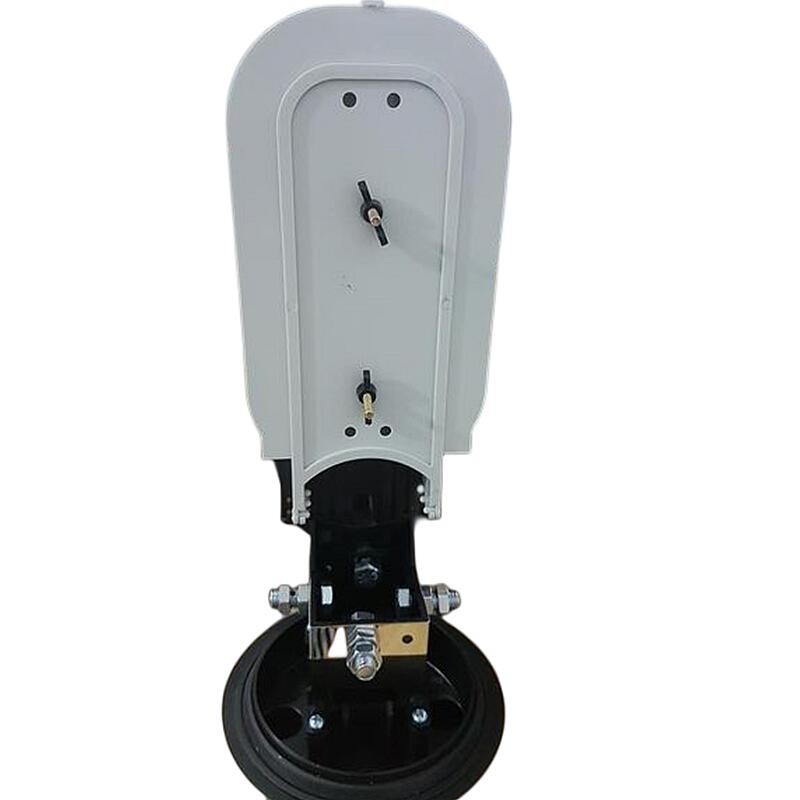

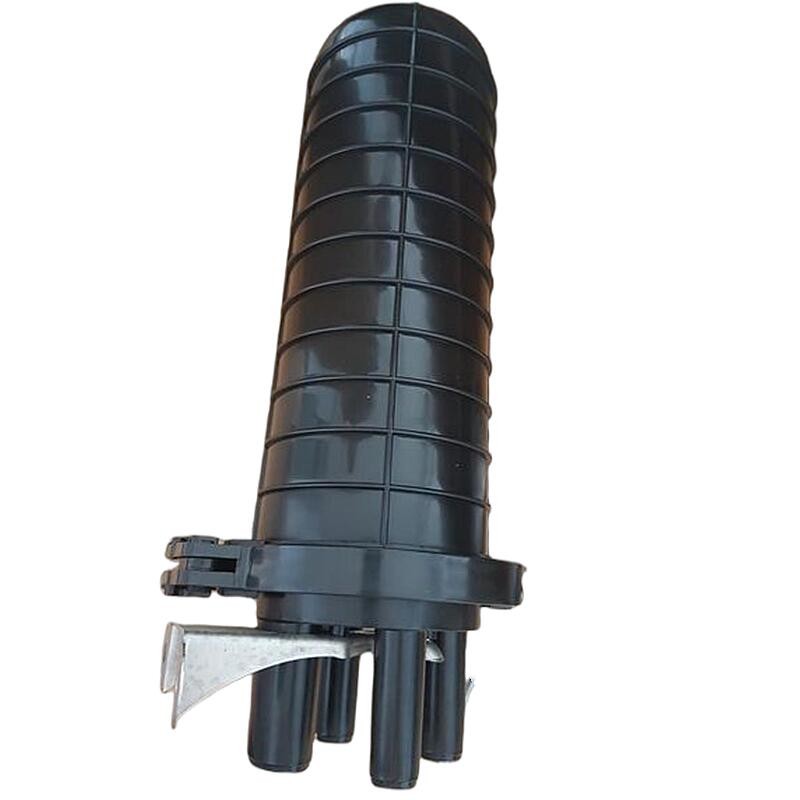

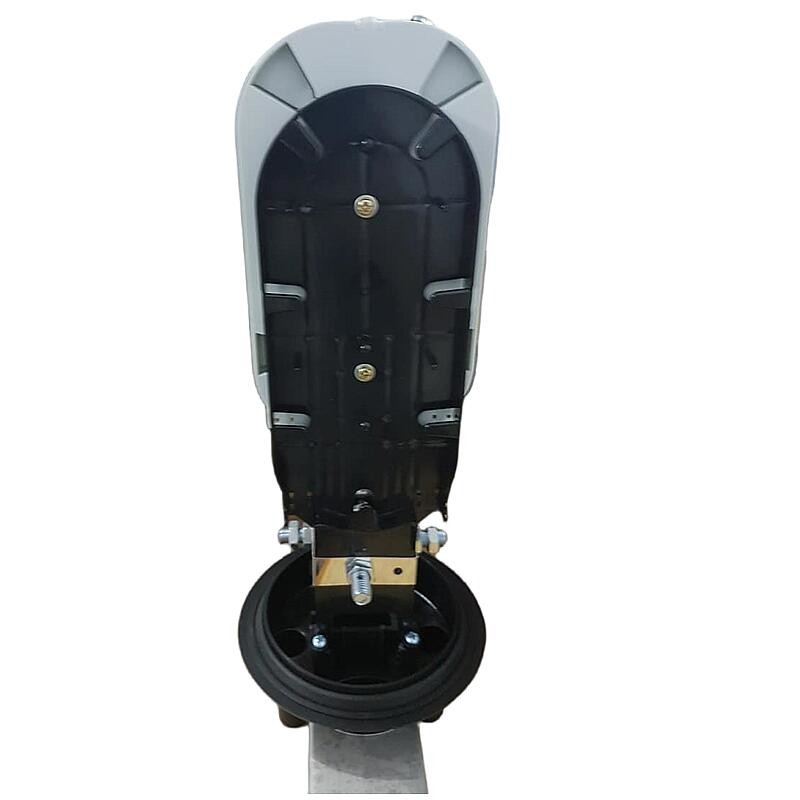

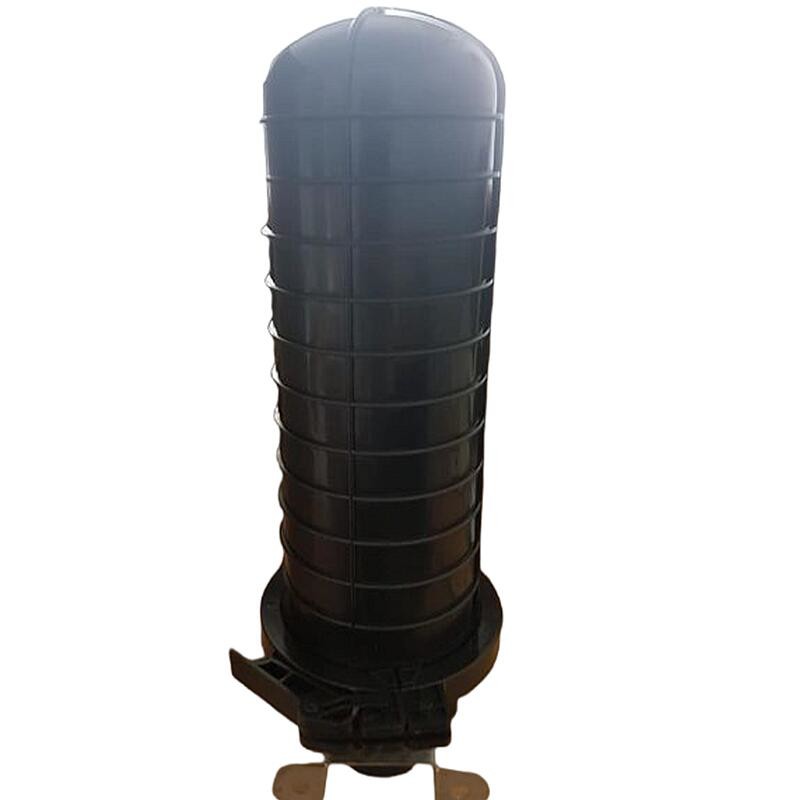

Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH 0Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH 1Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH 2
