3u 3ru 19" ODF 144 Fiber Optic Rack Mounted Enclosure Drawer Type Patch Panel
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 96 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx310mmx120mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 96pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-4 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. Standard size, light weight and reasonable structure
2. Slide out drawer for easy cable management
3. FC, SC, ST, LC adapter patch panel for option
4. Front access panel design for easy operation
5. Suitable for 19’’ or 23’’ standard optic distribution cabinets
6. 4-8 pcs splice trays (each 24 fibers)
7. Max. capacity 288 fibers
8. 4 fiber cable entry ports at rear side
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

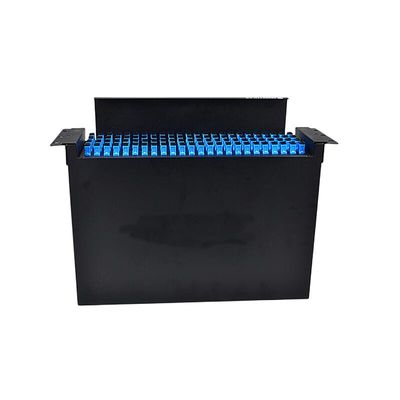

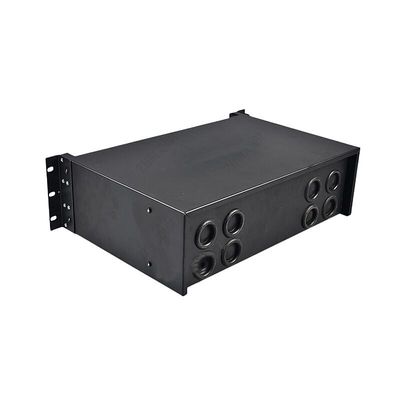

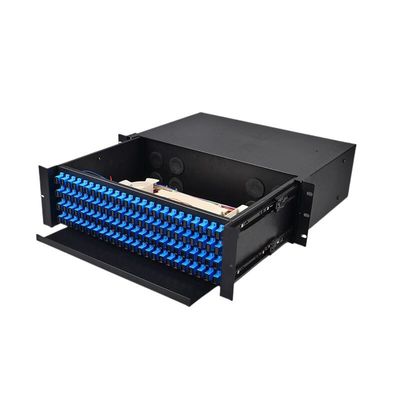

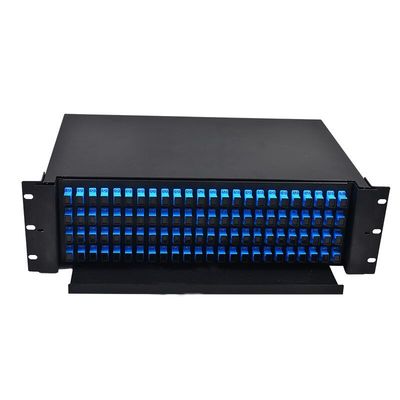

Details photos:
