19 Inch 2U Rack Mount Enclosure ODF 72 Core Fiber Patch Panel Sliding Type
Description:
ODF is an Optical fiber Distribution equipment specially designed for the Optical fiber communication machine room. It has the function of Optical cable fixation and protection.
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 72 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx250mmx90mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 72pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1-4 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. Applicable in the termination and 19'' standard structure,
2. Metal sliding design
3. rack mount in optical distribution frame ODF
4. Suitable for FC,SC,ST,LC,E2000 adapters
5. Cold rolled steel sheet, with electrostatic spraying
6. Box size: 485*250*90mm,for cost save.
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

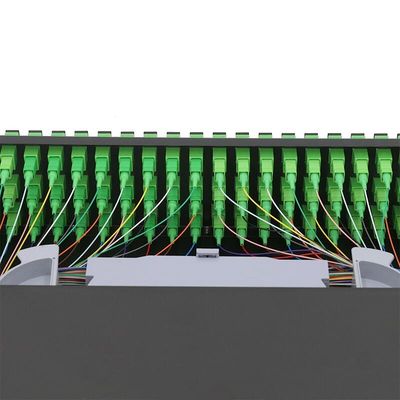

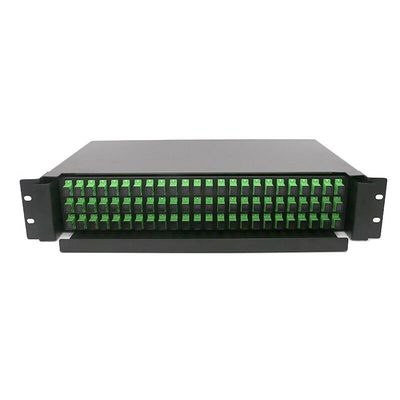

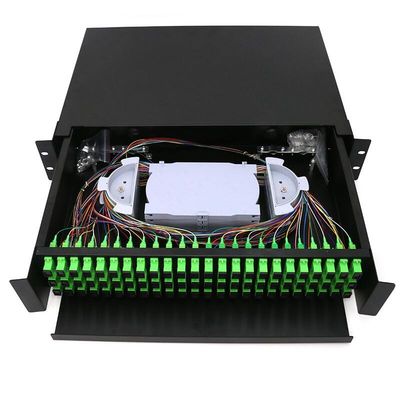

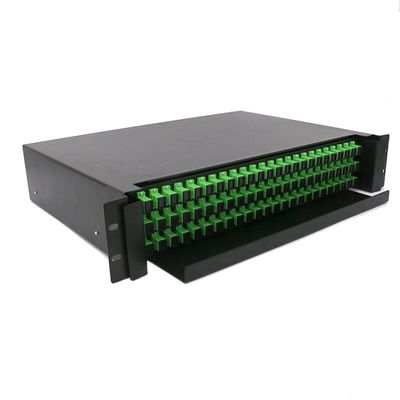

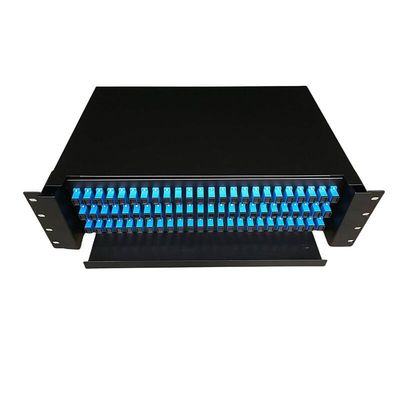

Details photos:
