Cold Roll Steel Rack Fiber Optic Patch Panel 0.8mm Thick 2U FC Adapter

Negotiable
MOQ
Negotiable
Price
Cold Roll Steel Rack Fiber Optic Patch Panel 0.8mm Thick 2U FC Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fixed Fiber Optic Patch Panel
Material: Cold-roll Steel
Thickness: 0.8mm,1.0mm,1.2mm
Capacity: 48 Core
Connector Port: FC Simplex
Color: Black
Dimension: 430×250×85mm
Installation Method: Rack Mount
High Light:

Steel Fiber Optic Patch Panel

,

Fiber Optic Patch Panel 0.8mm

,

Rack Fiber Patch Panel 2U

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-RM01-2U
Payment & Shipping Terms
Packaging Details: Inner box and carton box,5 pcs/Carton, Carton Size : 47*47*54cm, G/W: 30KG.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

Rack Mount Fixed Fiber Optic Patch Panel FC Adapter 48 Core 2U

Description:

19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.



Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply

firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine

of termination, protection, connection, management of fiber optic cables.



Technical specification

Material Cold rolled steel sheet
Thinckness of the steel sheet 0.8mm,1.0mm,1.2mm
Painting method Electrostatic Painting
Color Black
Dimension 430×250×85mm
Capacity 48 Core
Adapter FC/SC/ST/LCD
Atmospheric pressure 70kPa~106kPa



Feature:

● Standard 19 inch structure, could be installed on various of standard racks.

● 19" drawer and 19" fixed optional

● 1.0mm superior cold-rolled sheet cold-rolled primes,surface painting by Electro-static coating

● Frame plate is suitable for installing sorts of adaptors such FC, SC, ST, 2LCetc.

● Three-in-One of fiber splicing wrapping &storage Distribution with smart configuration

● Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.

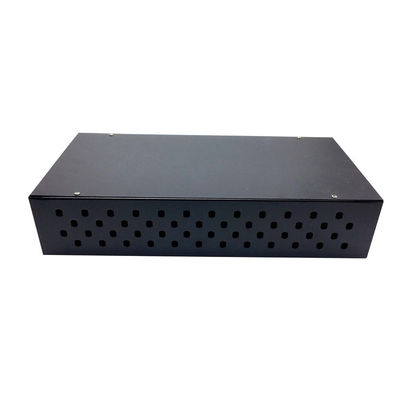

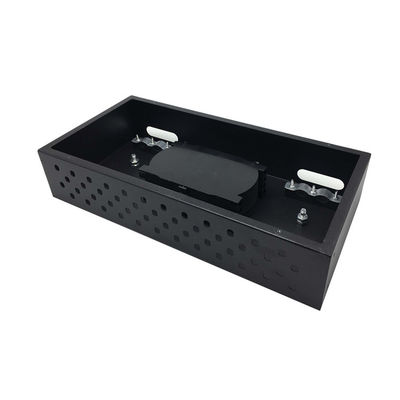

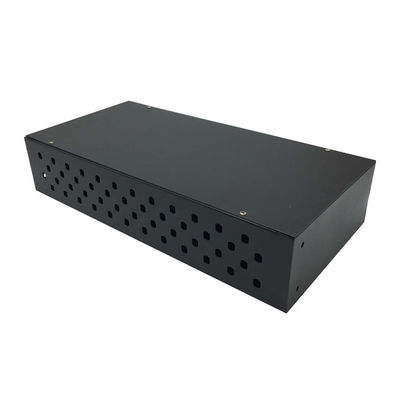

Cold Roll Steel Rack Fiber Optic Patch Panel 0.8mm Thick 2U FC Adapter 0Cold Roll Steel Rack Fiber Optic Patch Panel 0.8mm Thick 2U FC Adapter 1Cold Roll Steel Rack Fiber Optic Patch Panel 0.8mm Thick 2U FC Adapter 2
