Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure

Negotiable
MOQ
Negotiable
Price
Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DOME Type(Vertical Type)
Dimension(mm): 230*320mm/230*440mm
Number Of Splice Trays: 1~18pieces(16F / Tray)
Number Of Inlet/Outlet Ports: 11 Pieces(1xOval + 10xRound)
Diameter Of Fiber Cable: Φ7mm~Φ12mm
Max Capacity: 288 Core
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-GJSM11/RS-144 288
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week
Product Description

Outdoor Aerial 144 288core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure



Product Description



M11-RS dome closure used for direct connection during optical fiber transmission process, and provides joint connection protection, it can be used for overhead, pole, wall and buried installations..



Features



1. Material is ABS, water-proof, dust-proof, anti-aging, protection level up to IP68

2. Compact size, max 24fibers with one splice tray

3. Efficient cable management with 2 fiber capacity.

4. Can accommodate one 1×8 or 1*16 steel tube version splitter



Application



1. Aerial
2. Pole mounted
3. Wall mounted





Type GJS-M11 / RS-B-288 GJS-M11 / RS-B-144
Size(mm) 230 * 440 230 * 320
splitter type 1:4(2pcs)/1:8(1pc) 1:4(2pcs)/1:8(2pc)
Cable diameter (mm) 7~12 7~12
Splice tray capacity 16 (single core) 16 (single core)
Cable in /out 6 / 6 6 / 6
Max quantity of splice tray 18 9
Max capacity 288 (single core) 144 (single core)
Sealing type heat shrinkable tube, silicon rubber heat shrinkable tube, silicon rubber

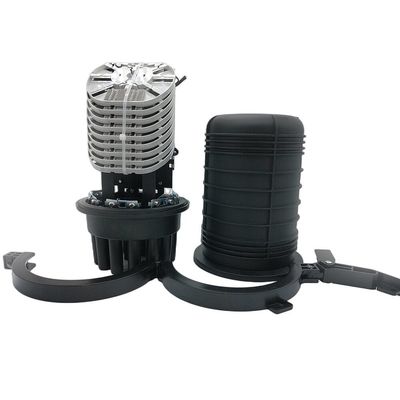

144 Core



Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure 0

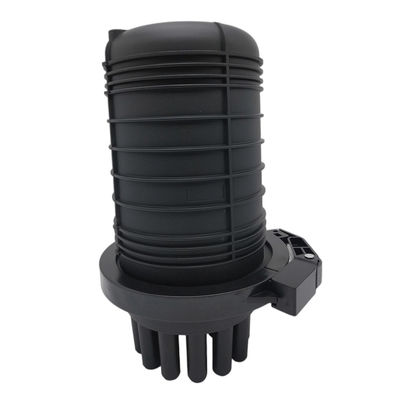

288 Core

Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure 1

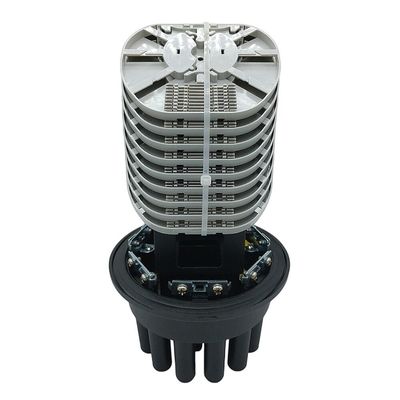

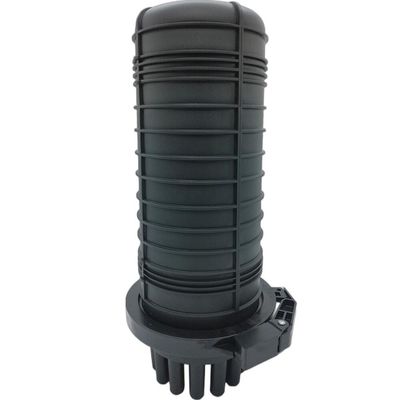

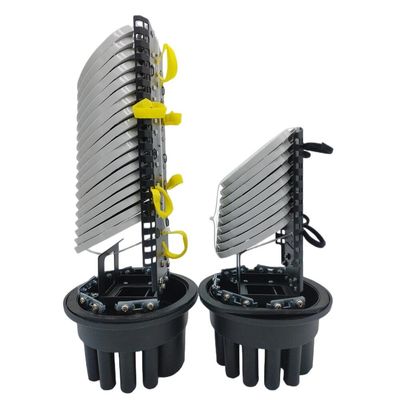

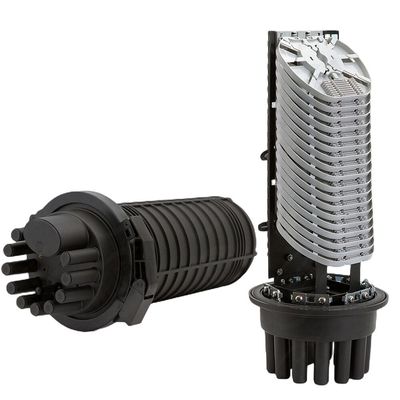

Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure 2Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure 3Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure 4Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure 5
