Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

Negotiate
MOQ
Negotiate
Price
Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 16/32Core PLC Spliter ABS Box Type Fiber Optic Termination Enclosure
Use: FTTH FTTX FTTB
Application Type: Indoor/Outdoor
Mounting Type: Wall-mount/Pole-mount
Water-proof Level: IP66
Material: PC+ABS
Color: Black/White
Size: 295*220*85mm
Adapter Type: SC/LC/ST/FC
Max Capacity: 16 Ports (SC), PLC 1X16 (SC)
Highlight:

Indoor 16 Port Splitter

,

16 Port Splitter

,

FTTH Splitter Box
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FAT-16B
Payment & Shipping Terms
Packaging Details: 10 pcs/ Carton, Size:59x33x51cm, G/W:17KG
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

16Port Fiber Optic Splitter Box SC/LC/ST/FC FTTH FTTX FTTB Indoor/Outdoor



Description



FAT-16B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name                                    16/32Core PLC Spliter ABS Box Type Fiber Optic Termination Enclosure
Use FTTH FTTX FTTB
Application Type Indoor/Outdoor
Mounting Type Wall-mount/Pole-mount
Water-proof Level IP66
Material PC+ABS
Color Black/White
Size 295*220*85mm
Adapter Type SC/LC/ST/FC
Max Capacity 16 Ports (SC), PLC 1X8 (SC)
Weight 1.57kg
Work Temperature -40~+85℃





Features



♦ Water-proof design with IP-66 Protection level.

♦ Integrated with splice cassette and cable management rods.

♦ Manage fibers in a reasonable fiber radius condition.

♦ Easy to maintain and extend the capacity.

♦ Fiber bend radius control more than 40mm.

♦ Suitable for the fusion splice or mechanical splice.

♦ 2 pcs of 1*8 Splitter can be installed as an option.

♦ Efficient cable management.

♦ 16 ports cable entrance for drop cable.

♦ Black can be made as an option.
Application

♦  Telecommunications subscriber loop
♦  Fiber to the home (FTTH)
♦  LAN/WAN
♦  CATV





Details Picture

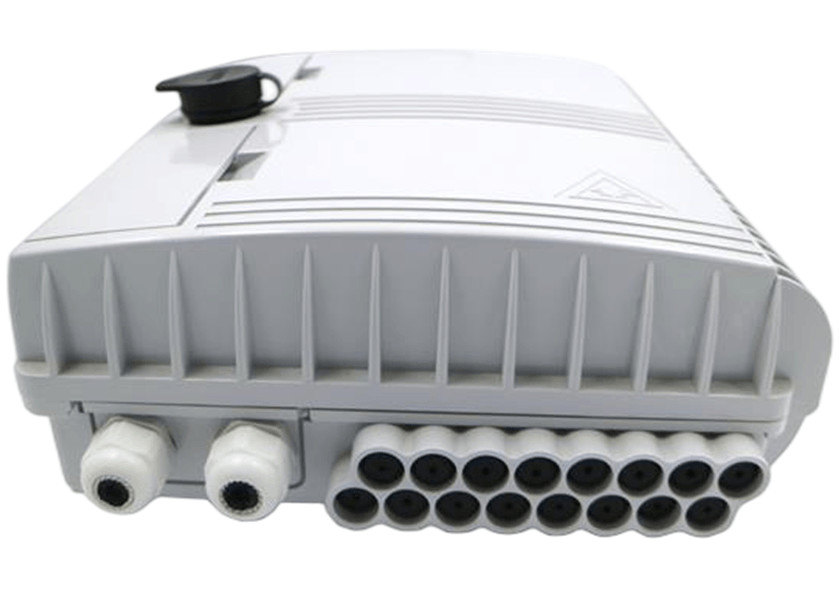

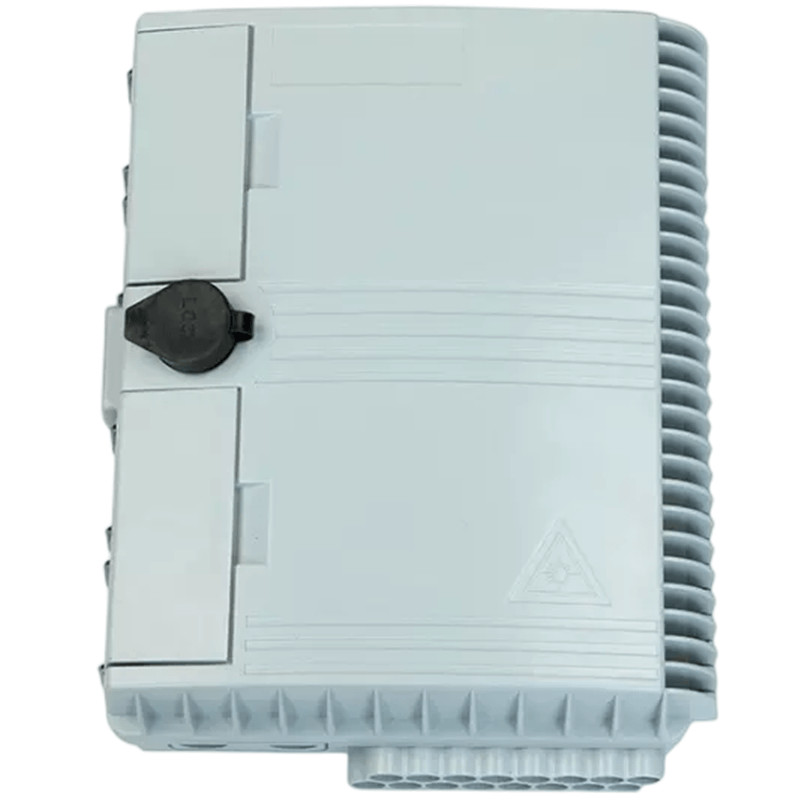

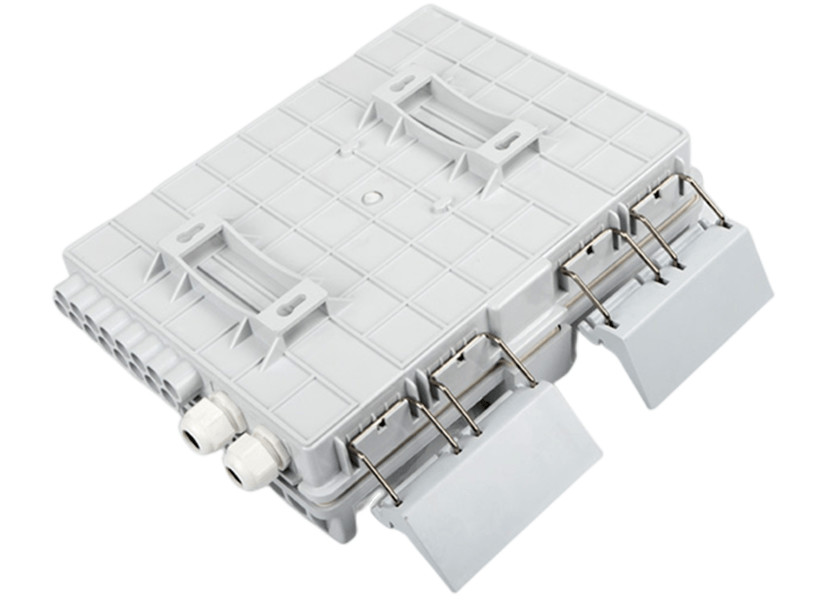

Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box 0

Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box 1

Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box 2





Color



► Black Color can be made as an option

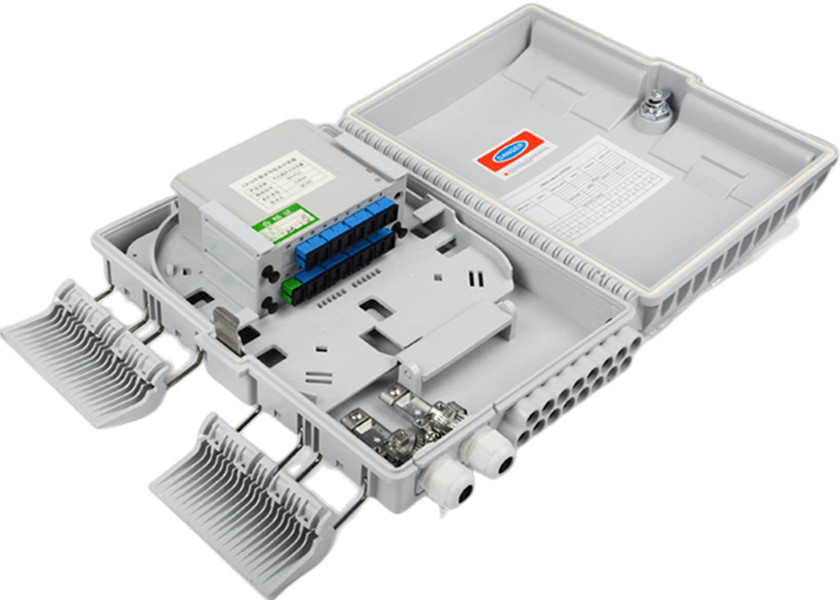

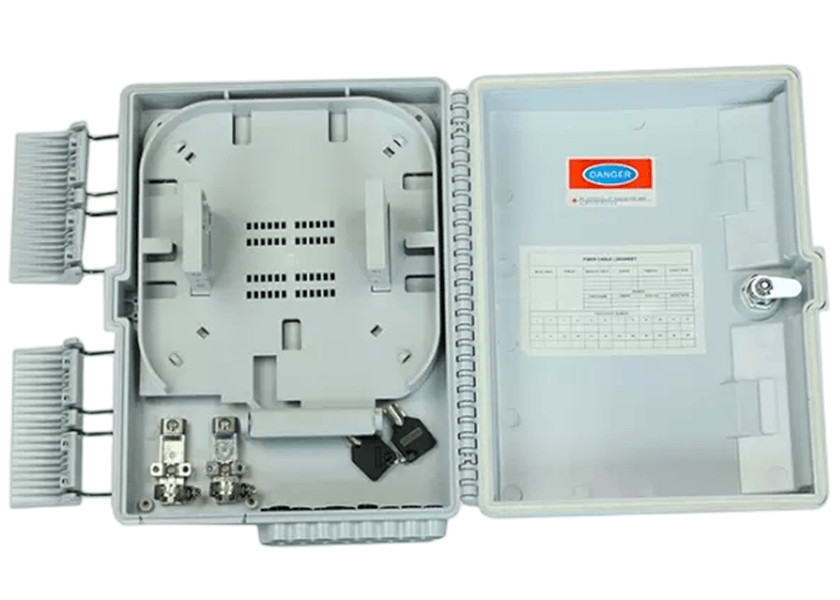

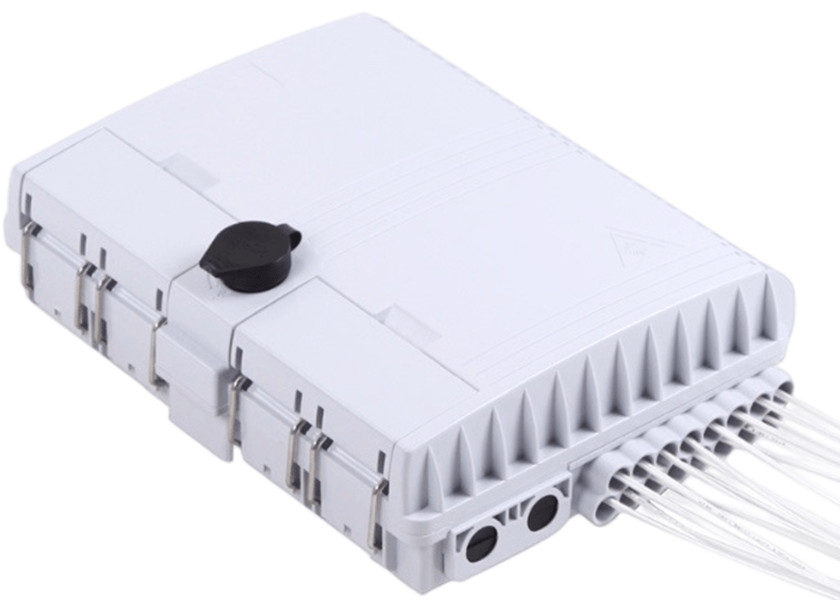

Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box 3

Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box 4

Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box 5
