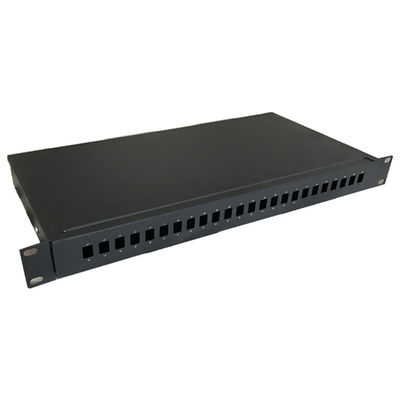

Name: Fixed Rack Mount Fiber Optic Patch Panel 1U 19" 24 Port ODF SC Simplex Adapter
Brand: Hunan Foconnec Technology Co., Limited
SKU: TW-RM02-1U-24SCSX
Availability: InStock

Fixed Rack Mount Fiber Optic Patch Panel 1U 19" 24 Port ODF SC Simplex Adapter

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Fiber Distribution Patch Panel

Material: Cold-rolling Steel

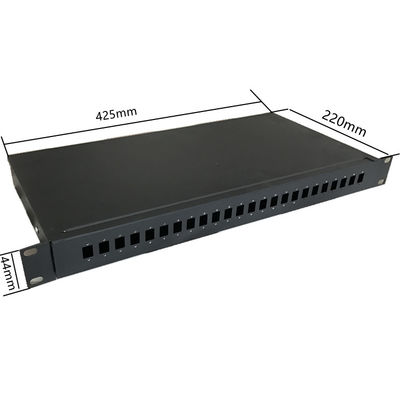

Dismension: 483*220*44mm

Capacity: 24 Core

Adapter: SC Simplex

Installation Type: Fixed Type

Color: Black

Application: Fiber Optic Cable Management

Basic Infomation

Place of Origin: Guangdong

Brand Name: Twilight Optic

Model Number: TW-RM02-1U-24SCSX

Payment & Shipping Terms

Packaging Details: Inner box and carton box,20 pcs/Carton, Carton Size : 47*47*54cm G/W: 30KG

Delivery Time: 7-10 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs per week

Gallery

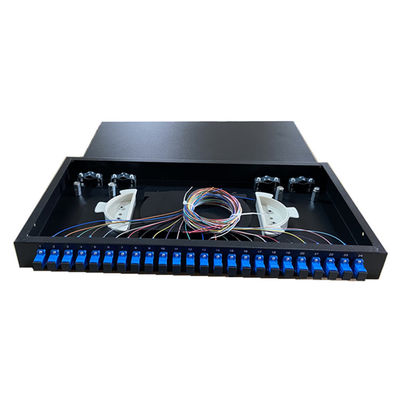

Fixed Rack Mount Fiber Optic Patch Panel 1U 19" 24 Port ODF SC Simplex Adapter

Product Description

Fixed Rack Mount Fiber Optic Patch Panel 1U 19" 24 Port ODF SC Simplex Adapter

The patch panel can be applied in branch connection of optical cable termination; 19” standard structure ,rack mounted ,suitable for FC,SC,ST,LC adapters.

FEATURES

Indoor wall-mount type/ Outdoor waterproof wall-mount type.
capacity: 12,24,32,48,64,72,96 splices.
19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc.
Suitable for ribbon and bunchy fiber cable.

PROPERTIES

Suitable for the protective connection between cables and pigtails.
Suitable for the connection between optical cables and optical communication device.
Unique structure, easy installation, for indoor use.

APPLICATION:

1. Telecommunication

2. CATV
3. LAN & WAN
4. Network

5. Broadband

Product details

Connector Type	Singlemode or multimode
Height	1U
Capacity	Max 24 cores
Connector	SC Simplex
Installation type	Fixed type
Material	cold rolled steel sheet
Application	For Cable distribution
Dismension	48322044mm
Color	Black

Fixed Rack Mount Fiber Optic Patch Panel 1U 19" 24 Port ODF SC Simplex Adapter 0

Fixed Rack Mount Fiber Optic Patch Panel 1U 19" 24 Port ODF SC Simplex Adapter 1
