5 Port Fiber Optic Splice Closure 288Cores FOSC Fiber Cable Joint Closure

Negotiable
MOQ
Negotiable
Price
5 Port Fiber Optic Splice Closure 288Cores FOSC Fiber Cable Joint Closure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 288Cores Fiber Optic Cable Splice Enclosure
Dimension(mm): 490mm X Φ220mm
Number Of Splice Trays: 1~6 Pieces(24F/tray)
Number Of Inlet/Outlet Ports: 5 Pieces(1 X Oval + 4 X Round)
Diameter Of Fiber Cable: Φ5mm~Φ38mm
Max Capacity: 288Cores
High Light:

5 Port Fiber Optic Splice Closure

,

Fiber Optic Splice Closure 288Cores

,

FOSC Fiber Cable Joint Closure

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: GJS-D010
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week
Product Description

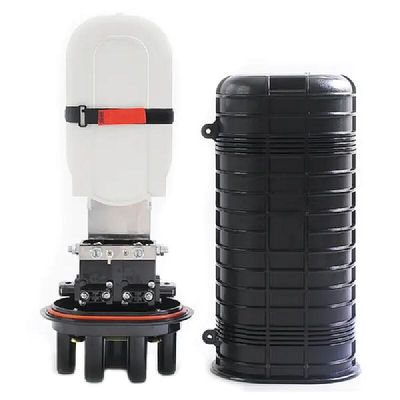

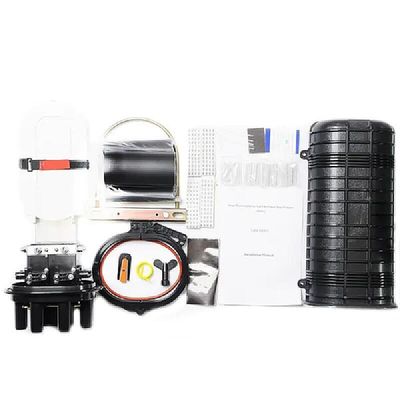

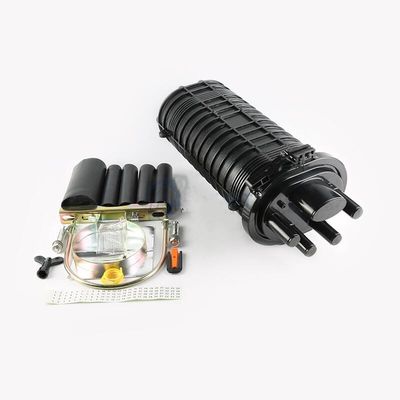

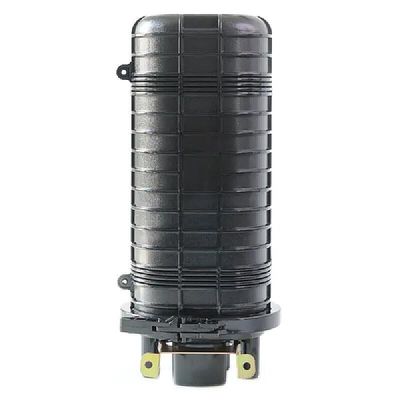

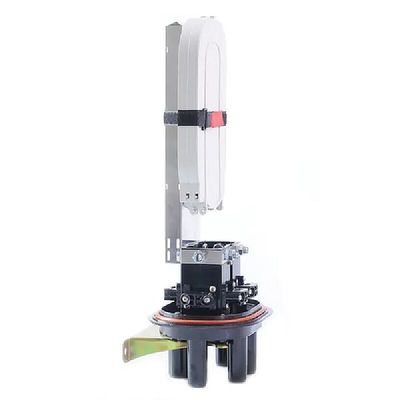

FOSC 288Cores Fiber Optic Cable Splice Enclosure Dome Vertical Type Fiber Joint Closure



Product Description



GJS-D010 Dome Type 5 Port Heat Shrinkable Fiber Optic Splice Closure is heat shrinkable sealing and suitable for uncut cables.



Features



1. Easy to re-enter Cable entry/exit ports
2. Intergrated seal, air tight and water proof
3. Ideal for cable repair
4. Can be used in through, branch or mid span splice locations
5. Suitable for aerial, underground duct or direct burial applications
6. Material : PC
7. IP68



Application



1.Aerial cable installation
2.Pole mounted installation
3.Wall mounted installation
4.Man hole and hand hole installation
5.FTTH access laver







Model GJS-D010
Type Dome type
Sealing Structure Heat shrinkable
Number of Inlet/Outlet ports 5 ports
Cable Diameter 1 port×35mm, 4 ports×22mm
Maximum Capacity Bunchy: 288 fibers;
Ribbon: 432 fibers

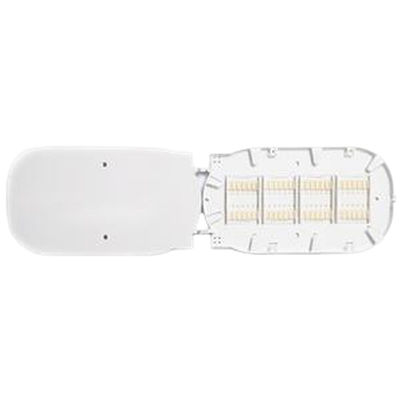

Capacity per Splice Tray Bunchy: single layer: 24 fibers; dual layers: 48 fibers;
Ribbon: standard: 6pcs; max.: 12pcs
Quantity of Splice Tray 6pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 490(H)×220(D)mm
Net Weight 3.0~3.6KG
Temperature -40℃~65℃



5 Port Fiber Optic Splice Closure 288Cores FOSC Fiber Cable Joint Closure 05 Port Fiber Optic Splice Closure 288Cores FOSC Fiber Cable Joint Closure 15 Port Fiber Optic Splice Closure 288Cores FOSC Fiber Cable Joint Closure 2
