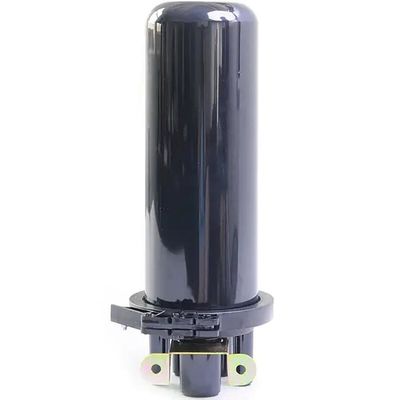

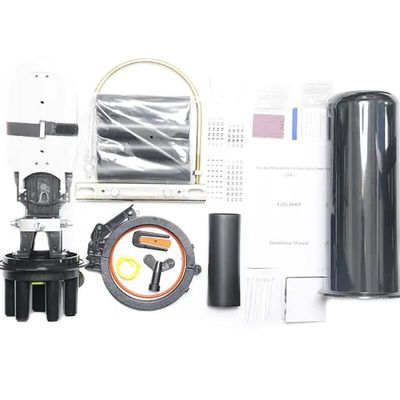

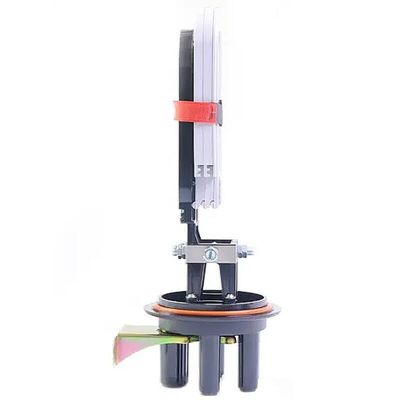

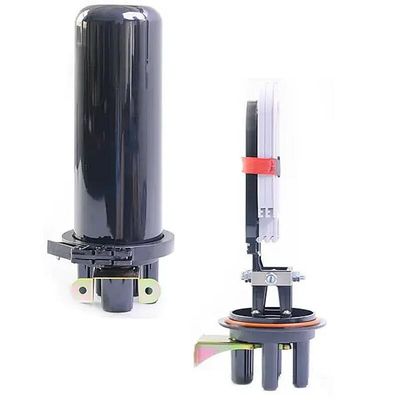

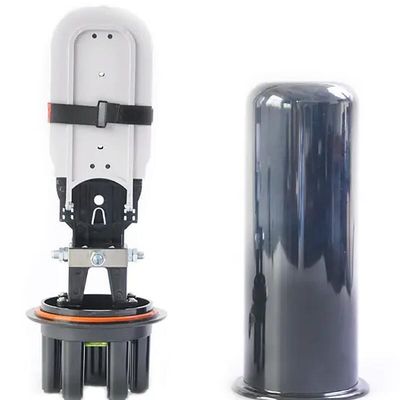

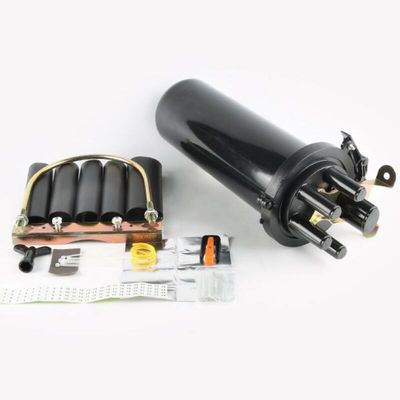

Sealing Fiber Optic Splice Closure 96Core Vertical Optical Fiber Joint Box
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 96Core Fiber Optic Joint Enclosure Box
Dimension(mm): 420mm X Φ190mm
Number Of Splice Trays: 1~4 Pieces(24F/tray)
Number Of Inlet/Outlet Ports: 5 Pieces(1 X Oval + 4 X Round)
Diameter Of Fiber Cable: Φ5mm~Φ38mm
Max Capacity: 96Core
High Light:

Sealing Fiber Optic Splice Closure

,

Fiber Optic Splice Closure 96Core

,

Vertical Optical Fiber Joint Box

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: GJS-D005
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week
Product Description

Vertical Type Fiber Closure 96 Core Fiber Optical Joint Enclosure Box Price



Product Description



GJS-D005 Fiber Optic Splice Closure, also named Fiber Optic Joint Enclosure, is an essential passive component for fiber optic cable management in fiber optic network of backbone, MAN and access network. Fiber Optic Splice Closure is widely used to protect optical fiber splices, store slack fiber optic cables, distribute fiber optic cables, etc. In straight through and branching applications either in the outside plant or indoor buildings.



Features



1. Easy access to installation, maintenance and future expansions.
2. Excellent sealing against water ingress and harsh environment
3. Hinged splice trays for easy expansion without disturbing spliced fibers.
4. Compatible with standard normal fiber cable types



Application



1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver





Model GJS-D005
Type Dome type
Sealing Structure Heat shrinkable
Number of Inlet/Outlet ports 5 ports
Cable Diameter 4 ports×16mm, 1 port×25mm
Maximum Capacity Bunchy: 96 fibers;
Ribbon: 144 fibers
Capacity per Splice Tray Bunchy: single layer: 12 fibers; dual layers: 24 fibers;
Ribbon: 6pcs
Quantity of Splice Tray 4pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 420(H)×190(D)mm
Net Weight 2.3~2.5KG
Temperature -40℃~65℃





Sealing Fiber Optic Splice Closure 96Core Vertical Optical Fiber Joint Box 0Sealing Fiber Optic Splice Closure 96Core Vertical Optical Fiber Joint Box 1Sealing Fiber Optic Splice Closure 96Core Vertical Optical Fiber Joint Box 2
