Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure

Negotiable
MOQ
Negotiable
Price
Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 288cores Inline Splice Closure
Material: Polycarbonate
Color: Black
Demention: 605*215*175MM
Diameter Of Cable: 7mm To 20mm
Protection: IP68
Cable Entry Ports: 4 Pieces
Capacity Of FOSC: 288core
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: GJS-H016
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week
Product Description

Underground 288 Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure



Product Description



GJS-H016 The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple.



Features



1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it



Application



1. Direct buried
2. Pole mounted
3. Wall mounted



Specification





Model GJS-H016
Type Inline type
Number of Inlet/Outlet ports 4 ports
Cable Diameter 4 ports×23mm
Maximum Capacity Bunchy: 288 fibers;
Ribbon: 864 fibers

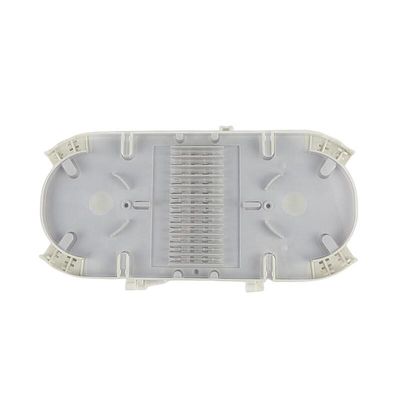

Capacity per Splice Tray Bunchy: single layer: 24 fibers; dual layers: 48 fibers;
Ribbon: 6pcs
Quantity of Splice Tray 6pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 605(L)×215(W)×175(H)mm
Net Weight 3.0~4.6KG
Temperature -40℃~65℃

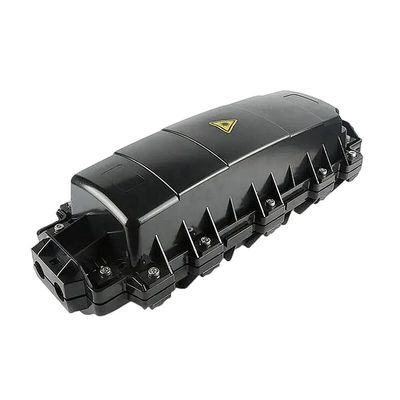

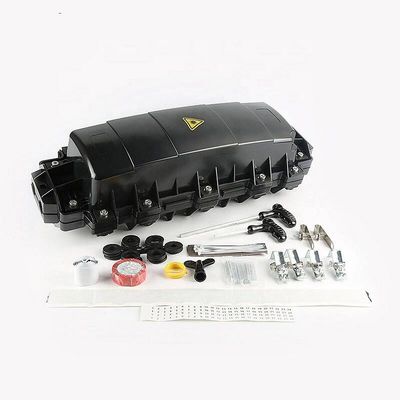

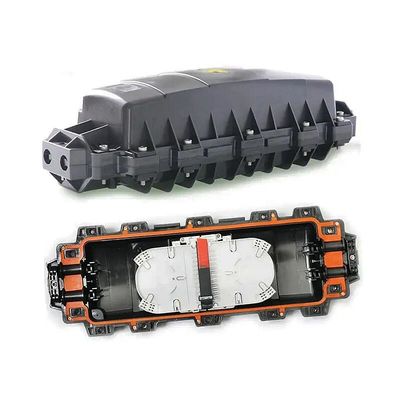

Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure 0Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure 1Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure 2Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure 3
