Inline Type 4 Port Mechanical Sealing Fiber Cable Joint Closure 96core Fosc
Product Description

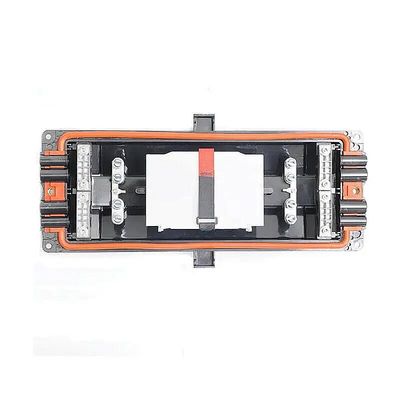

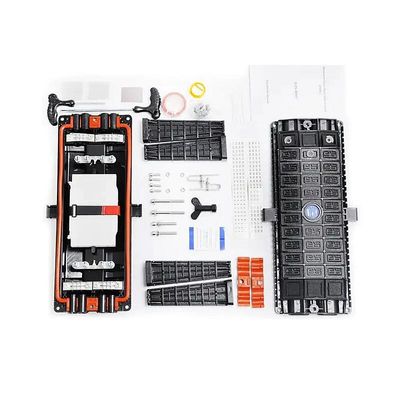

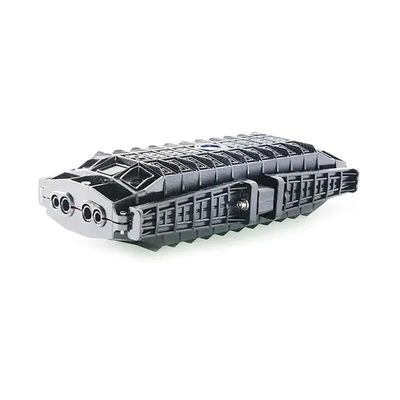

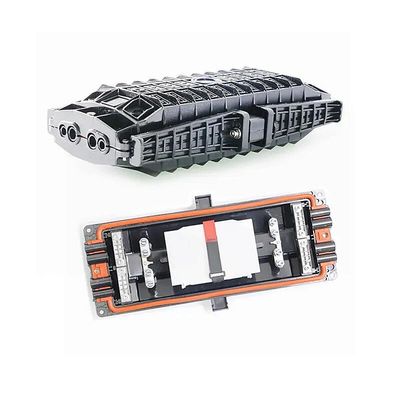

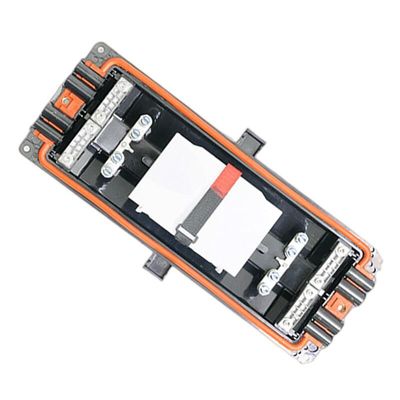

GJS-H007 Fiber Optic Splice Closure, also named Fiber Optic Joint Enclosure, is an essential passive component for fiber optic cable management in fiber optic network of backbone, MAN and access network. Fiber Optic Splice Closure is widely used to protect optical fiber splices, store slack fiber optic cables, distribute fiber optic cables, etc. In straight through and branching applications either in the outside plant or indoor buildings.
Features
1. Easy access to installation, maintenance and future expansions.
2. Excellent sealing against water ingress and harsh environment
3. Hinged splice trays for easy expansion without disturbing spliced fibers.
4. Compatible with standard normal fiber cable types
Application
1. Direct buried installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access layer
Specification
| Model | GJS-H007 |
| Type | Inline type(horizontal Type) |
| Number of Inlet/Outlet ports | 8 ports |
| Cable Diameter | 4 ports×16mm, 4 ports×20mm |
| Maximum Capacity | Bunchy: 96 fibers; Ribbon: 288 fiber |
| Capacity per Splice Tray | Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: 6pcs |
| Quantity of Splice Tray | 4pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 450(L)×220(W)×110(H)mm |
| Net Weight | 2.8~3.3KG |
| Temperature | -40℃~65℃ |
