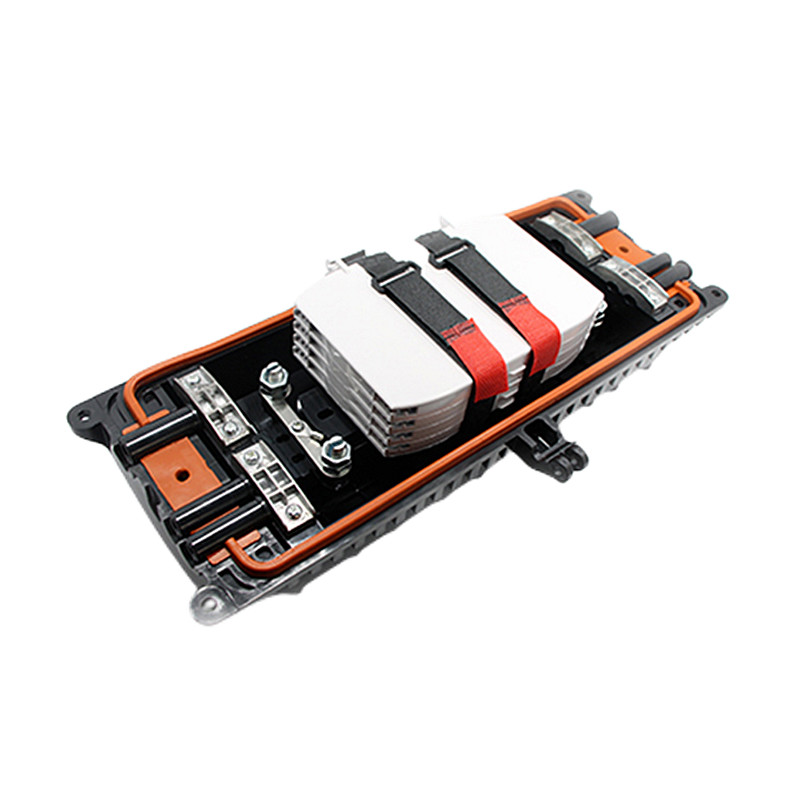

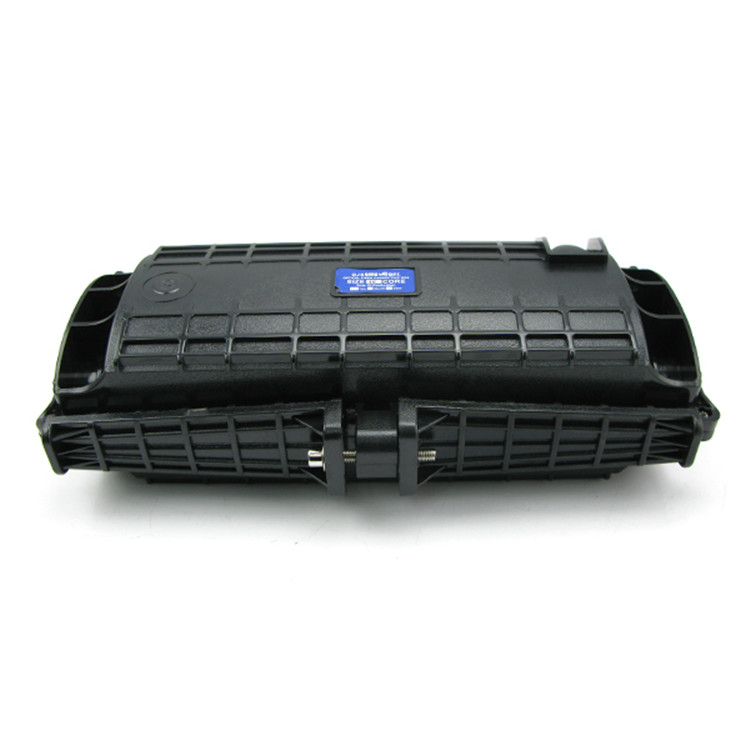

Joint Enclosure 3in 3out 48fo 96fo Inline Closure 6 Hole Fiber Optic Splice Closure
Product Description
GJS-H001 Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available. The Inline type closure is also called Horizontal closure. The input and output are on the both sides. Inline closure is more suitable for backbone application. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried
Features
1. Easy to assemble
2. Protection level reaches IP68
3. High Quality plastic body material ensure the durability
4. Suitable for Φ7mm~Φ16mm cables
5. Aerial, underground, pipeline,man-holes,hand-holes assembling
6. Adapt to the ambient temperature from -40℃ to +65℃
Application
1. Direct buried installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access layer
| Model | GJS-H001 |
| Type | Inline type |
| Number of Inlet/Outlet ports | 6 ports |
| Cable Diameter | 2 ports×16mm, 4 ports×13mm |
| Maximum Capacity | Bunchy: 96 fibers; Ribbon: 144 fiber |

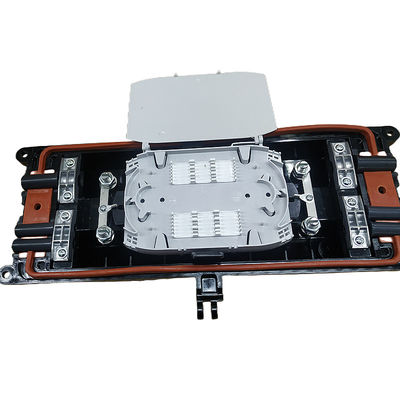

| Capacity per Splice Tray | Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: standard: 3pcs; max.: 6pcs |

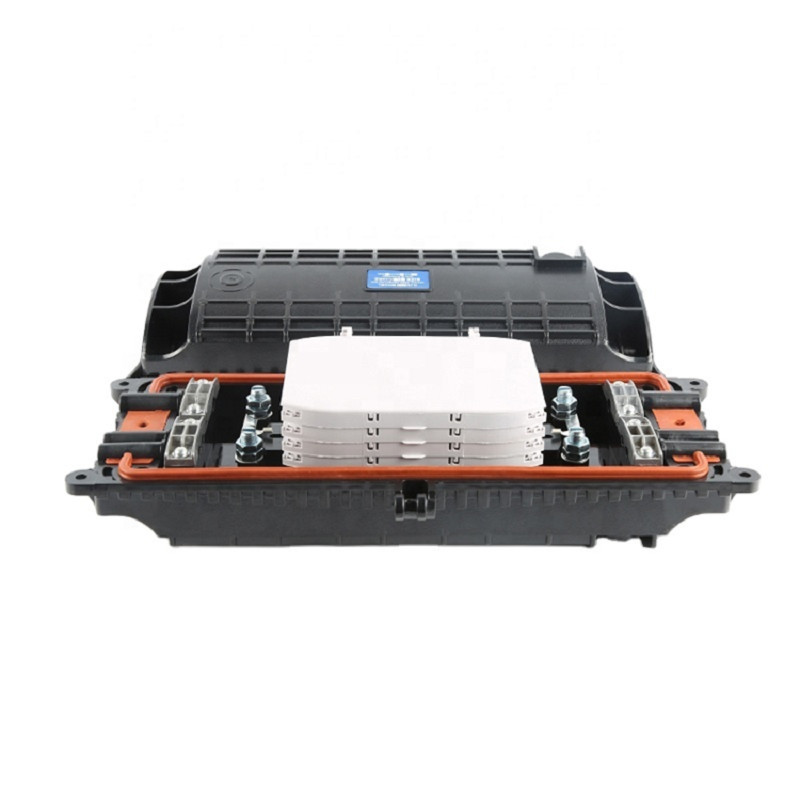

| Quantity of Splice Tray | 4pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 390(L)×210(W)×120(H)mm |
| Net Weight | 1.9~2.1KG |
| Temperature | -40℃~65℃ |
