96 Core Fiber Optic Splice Closure Drop Cable Splice Joint Closure With Mechanical Sealing
Product Description

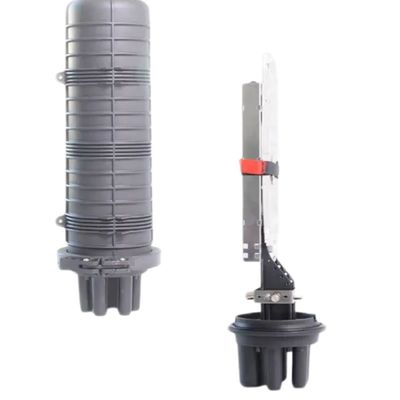

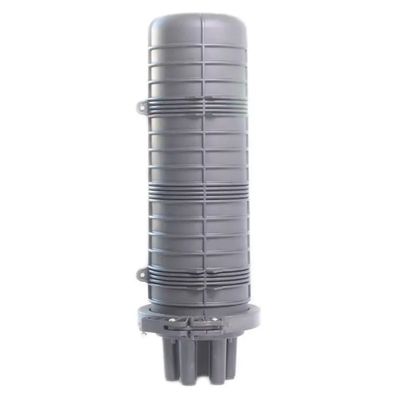

GJS-D004 Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available. The DOME type closure is also called Vertical closure. The input and output ports are at the bottom of the closure. DOME closure is more suitable for the application on accessing layer.
Features
1. Heat shrinkable sealing structure
2. High quality industrial plastic body material .
3. One oval hole and four round holes for cable entrancee
4. Suitable for cable diameter 5mm-38mm
5. Support aerial , underground , pipeline , man holes , hand holese
6. Protection level reaches IP68
7. 360 degrees access , fiber bending > 40mm .
8. Maximum capacity : 96F single or 288F ribbon
9. Number of trays : 4 pcs x 24F .
Application
1. Direct buried installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access layer
| Model | GJS-D004 |
Type
|
DOME Type(Vertical Type)
|
|
Dimension |
540mm x Φ205mm |
Number of Splice Trays
|
1~4 Pieces(24F/tray)
|
| Number of Inlet/Outlet Ports | 5 Pieces(1 x Oval + 4 x Round) |
Diameter of Fiber Cable
|
Φ5mm~Φ38mm
|
| Max Capacity(Cores) | Bunchy:96F, Ribbon:288F |
Operation Temperature
|
-40~65 (°C)
|
| Storage Temperature | -40~85 (°C) |
