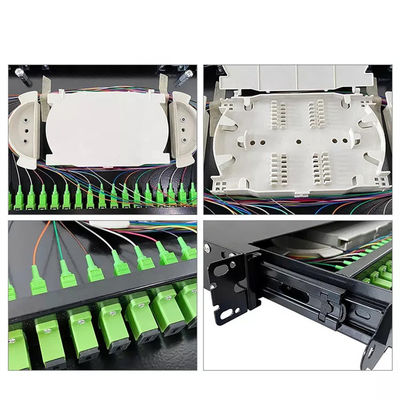

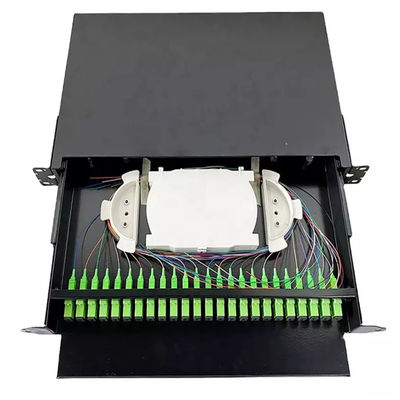

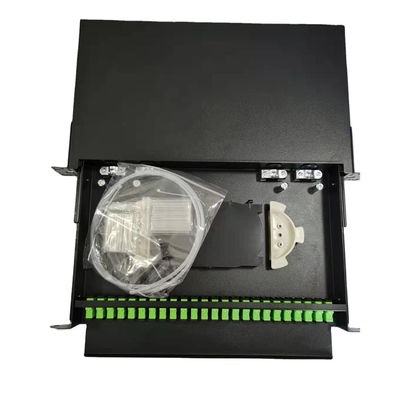

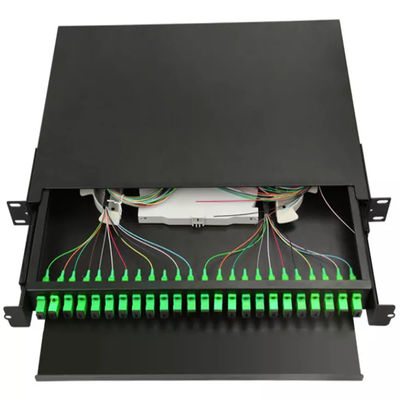

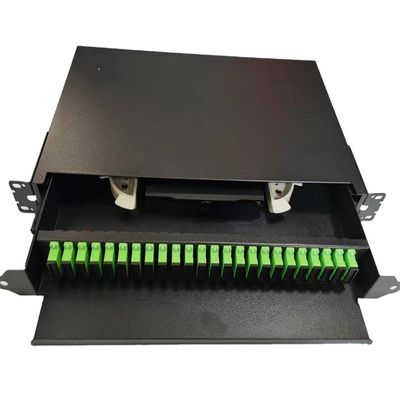

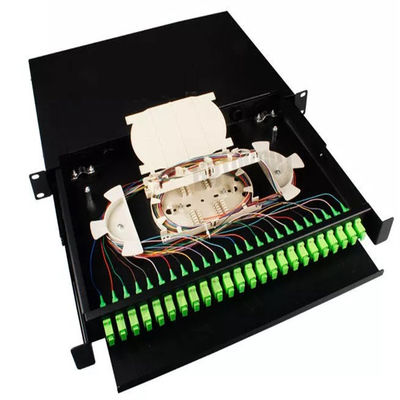

1U 19" 24 Port SC Simplex/LC Duplex Fiber Optic Rack Mount Enclosure Fiber Patch Panel-Unload
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
splice trays (each 24 fibers)
Max. capacity 288 fibers
4 fiber cable entry ports at rear side
White or black color
| Type | Size |
| 1U 12-24 fibers | 485*295*47mm |
| 2U 48-72 fibers | 485*250*90mm |
| 3U 96 fibers | 485*310*120mm |
| 4U 144-288 fibers | 485*295*180mm |
Product details:
