72Port Single Door Wall Mount Fiber Enclosure 72fibers (SC/SX) Grey / Customized
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 72Port Single Door Wall Mount Fiber Enclosure | Material | Cold-Roll Steel Sheets |
|---|---|---|---|
| Connector Type | SC/LC/FC/ST | Capacity | 72fibers(SC/SX) / Up To 144 Fibers(LC/DX) |
| Qty Of Adapter Plate | 12PCS | Qty Of Splice Tray | 3pcs(24core Tray) / 6pcs(12core Tray) |
| Size | 500*420*180MM | Color | Grey/Customized |
| High Light | 72fibers Wall Mount Enclosure,SC Wall Mount Fiber Enclosure,Wall Mount Fibre Termination Unit |
||
Product Description
72Port Single Door Wall Mount Fiber Enclosure 72fibers(SC/SX) Grey/Customized
Description
Wall mount fiber optic box is designed for direct termination of fibers. The box includes two separate sections: one for the fusion splice trays and one for the cable routing. The cable entries/exits are sealed with a flexible grommet, which can be adjusted to the desired cable diameter at installation to protect the inside of the box against dust and debris during and after installation.
| Product Name | 72Port Single Door Wall Mount Fiber Enclosure |
| Material | Cold-Roll Steel Sheets |
| Connector Type | SC/LC/FC/ST |
| Capacity | 72fibers(SC/SX) / Up to 144 fibers(LC/DX) |
| Qty of Adapter Plate | 12PCS |
| Qty of Splice Tray | 3pcs(24core tray) / 6pcs(12core tray) |
| Size | 500*420*180MM |
| Color | Grey/Customized |
| Application | FTTH Solutions Fiber Management |
Features
► Suitable for SC, ST, FC simplex and LC duplex adapters
► Easy to install and maintain
► Color: grey
► Position of splice cassette adjustable
► Lockable front door
► Top & Bottom Cable Entry Ports
Application
► Telecommunications subscriber loop
► Fiber to the home (FTTH)
► LAN/WAN
► CATV

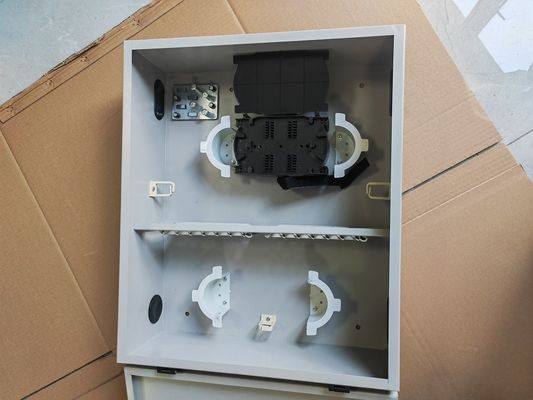

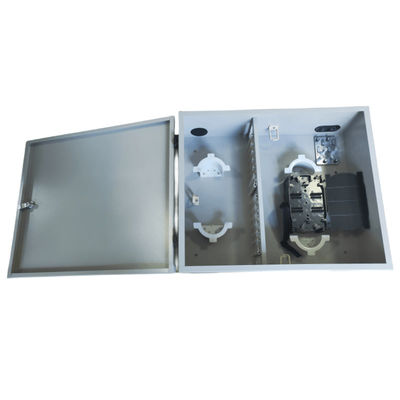

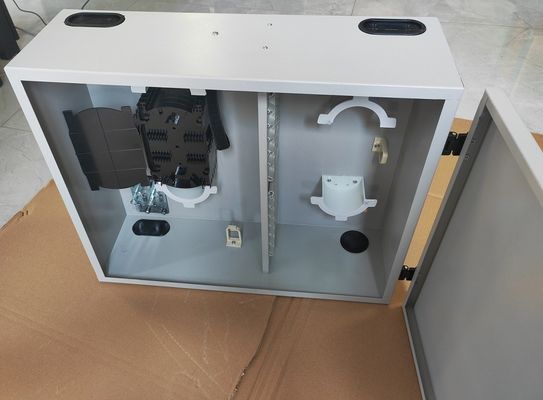

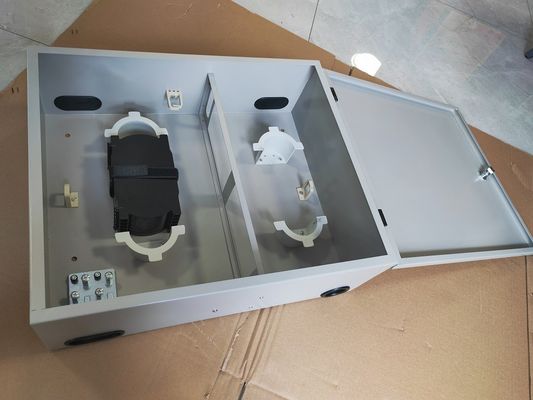

Detailed Pictures
FAQ
► What’s your advantage? Why we choose you?
1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.
2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.
3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
► What’s the Payment?
T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.
► Are you a factory or trading company?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
► How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
► When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
► How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
