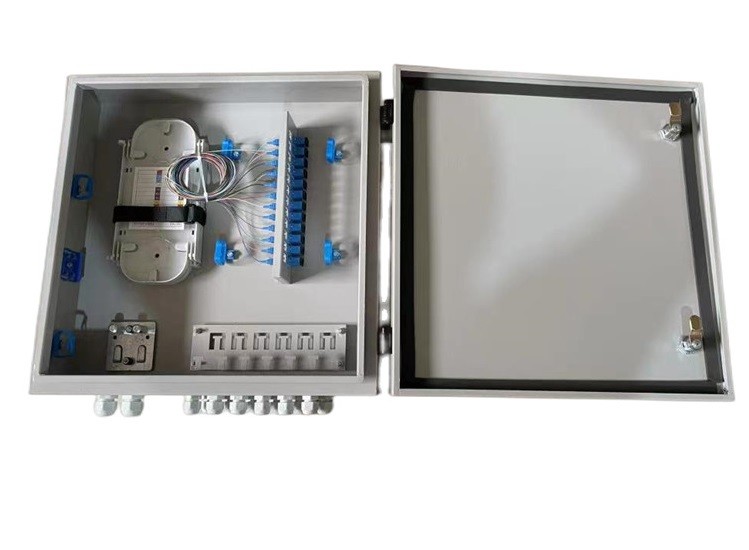

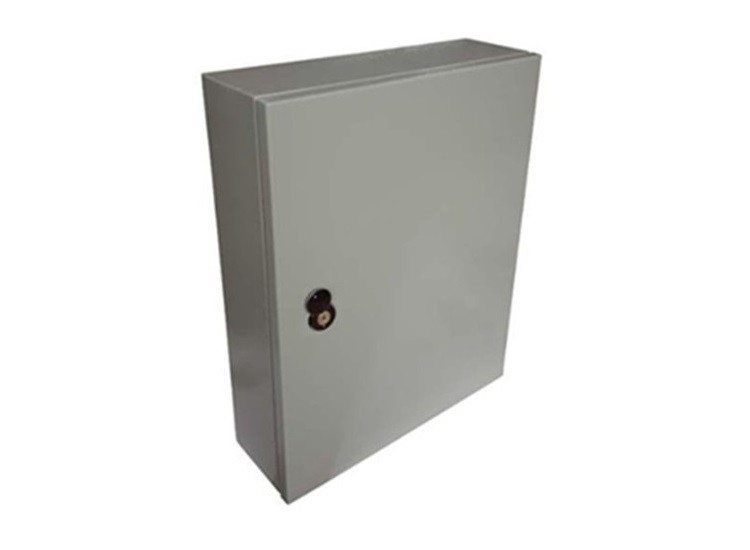

Waterproof Outdoor Wall Mount Fiber Enclosure Pole Mount 12 SC / UPC

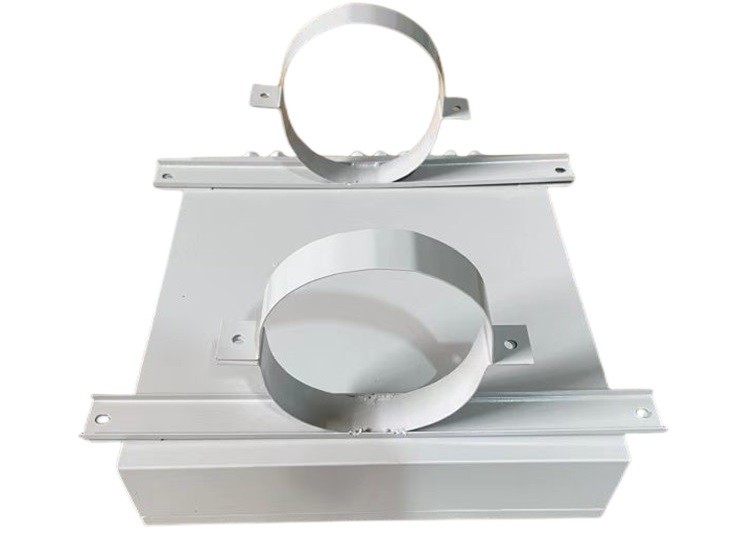

Outdoor Waterproof Fiber Enclosure Pole Mount 12 SC/UPC 0.9mm Single Mode Pigtails

Specification:

Description:

Indoor/Outdoor Wall Mounted, Single Door Fiber Optic Distribution Management cross connect Enclosure is ideal for end terminations of fiber optic runs in residential or commercial buildings.

This Wall Mounted configuration permits positive fiber management, connectivity and distribution 48 incoming Fiber Optic cables channels. All the cross connectivity functions of Splicing, Termination, and Interconnection for your plant, backbone and in-building fiber cabling can be included in the enclosures to protect and ease the organization of your installations. This Wall Mount enclosure provides a professional economical solution for protection of critical network components. This IP54 rated enclosure is fabricated of SPCC steel and includes door with a gasket seal, secure latch & rubber grommets for cable entry and exit to

provide easy access. Offering protection from moisture damage in stand-alone locations outdoors as well as in network closets.

Features:

1. Material: cold rolled steel.
2.Low Profile Wall Mounted Fiber Enclosure
3. 12 Simplex SC/UPC Couplers & 12 SC/UPC Pigtails included
4. Routing guides to limit bend radius and enhance strain-relief control
5. Waterproof IP54 design with gasket seal and secure lid latch

6. Splice & distribution in one unit
7. Easy installation and operation of the components inside
8. Adapters covered with plastic covers and easily removed and mounted
9. Excellent seal performance for outdoor application

Application:
1. FTTH Access Networks
2. Telecommunication Networks
3. CATV Networks
4. Data Communications Networks
5. Data Communications Networks

Installation Instruction:

a) Check the structures and types of fiber cables before installation;different fiber cables could not be spliced together.

b) Seal well the connective components to reduce additional loss to fibers caused by dampness; don’t apply any pressure on the connective components.

c) Keep a dry and dustless working environment; don’t apply any external force to the cables; don’t bend or entwine cables.

d) Appropriate tools should be used for cable splicing according to the local standards during the whole installation process.

Transportation and Storage:

This product should be stored in warehouse that is dry and without mordant air around;
This product can be transported by car, train, airplane and ship etc.
During transportation, impact, falling off or pouring raid of rain, snow as well as direct exposure
under the sun should be avoided.
