48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter

Negotiable
MOQ
Negotiable
Price
48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Waterproof Optical Distribution Box
Material: Cold Rolled Steel
Dimension: 455*405*120MM
Color: Light Gray
Painting: Electrostatic Powder Spraying
Application: Outdoor
Adapter: FC SC ST LCD
Weight: 7kg
Highlight:

Wall Mount Fiber Distribution Box 48F

,

Wall Mount Fiber Distribution Box Waterproof

,

Fiber Distribution Box Outdoor LCD

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-GP(05)B
Payment & Shipping Terms
Packaging Details: Inner box and carton box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

Outdoor Wall Mount Fiber Enclosure Waterproof 48 Core FC SC ST LCD Adapter



I,product introduction

This optical distribution box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.

II,features

  •  it is composed of case body, fiber optical splice tray and adaptor fixing frame.
  •  it is divided into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links  with patch cord. Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
  •  surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
  •  adopt 6 ports adaptor fixing frame to fix adaptors which available for different types of adaptors, easy for operation and avoid any   unexpected damage to fiber,
  •  cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

III,specification:

Model Fiber Quantity Dimension(cm)
TW-GP05A-96C 96F 455*405*180
TW-GP05A-72C 72F 455*405*150
TW-GP05A-48C 48F 455*405*120
TW-GP05A-24C 24F 455*405*80



IV,installation process

  •  open the door of the box, lead the optical cable into the distribution box, cut off cable about 1m, and take proper length(about   1.5m),then strip the outer protective sheath. Leave 85mm cable reinforced core and cut off surplus part, insert the reinforced core   into the pressboard, then tighten it.
  •  insert the optical cables peeled into the PVC tube (about 0.9m),and twist them around the fiber storage trays, fix it with nylon tie at   the inlet of the splice tray.
  •  insert adaptors into the 6 ports adaptor fixing frame, then fix the frame, connect the adaptors and pigtails, hold the pigtail around the  two pillar which above and blow the trays.
  •  take the splice tray out of the box, protect the fusion and connection point with heat shrinkable sleeve, then put it in the groove of  splice tray, put the cover back on the tray. Move back the splice tray and fix it on the box with screws.
  •  lead the patch cord into the box through the special rubber parts and connect with adaptors, the other end of patch cord links with   optical devices.
  •  close the box, mount on the wall after sealing confirmed.

 accessories

  •  installation manual 1 piece
  •  heat shrinkable sleeve 24 stick
  •  PVC protective tube 1m 1.5m
  •  nylon tie 8 stick

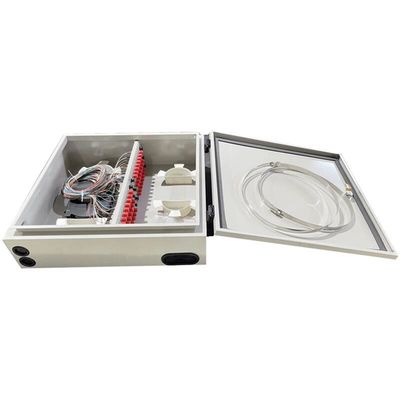

48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter 0

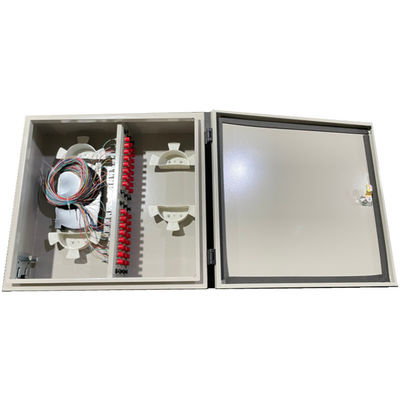

48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter 1

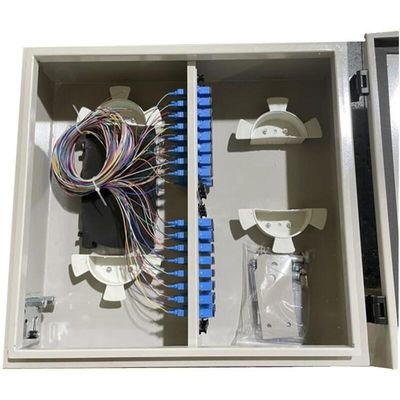

48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter 2

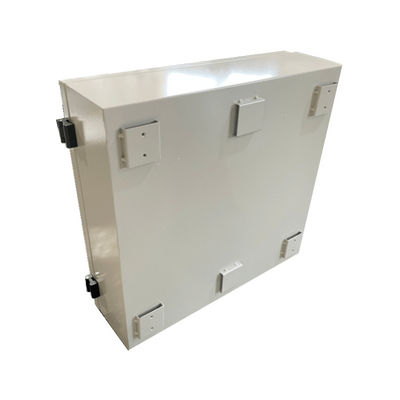

48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter 3

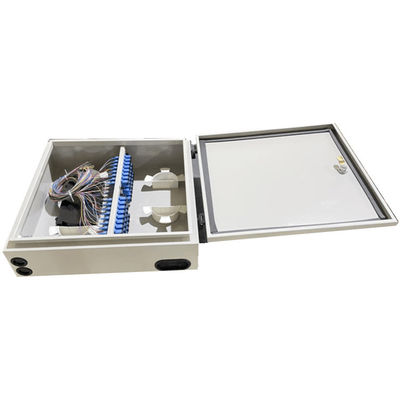

48 Core Wall Mount Fiber Distribution Box Outdoor Waterproof 48F LCD Adapter 4
