Metal Wall Mount Fiber Enclosure 72 Core With 2 Door And Dual Locks

20pcs
MOQ
Can be discussed
Price
Metal Wall Mount Fiber Enclosure 72 Core With 2 Door And Dual Locks
Features Gallery Product Description Request A Quote
Features
Specifications
Max Capacity: 72Fibers
Protection Level: IP65
Cable Diameter: 3-10mm
Mounting Type: Wall Mount
Panel Port: Simplex/Duplex
Adapter Type: LC/SC/FC
Material: Metal
Application: FTTH/FTTX
Highlight:

2Door Wall Mount Fiber Enclosure

,

IP65 Wall Mount Fiber Enclosure

,

Duplex Wall Mount Fiber Enclosure

Basic Infomation
Place of Origin: Hunan, China
Brand Name: Twilight Optic
Certification: CE,Rosh
Model Number: TW-WM03-2
Payment & Shipping Terms
Packaging Details: Standard Master Carton
Delivery Time: 12-15 days
Payment Terms: 100% in advance
Supply Ability: 1000pcs/week
Product Description

Metal Wall Mount Fiber Enclosure 72 Core With 2 Door And Dual Locks

Product Description:

Our Wall Mount Fiber Enclosure is designed for outdoor FTTH (Fiber to the Home) distribution and provides a secure and comprehensive wall mount ODF solution. The enclosure is made of heavy-duty metal for superior strength and durability, and is rated to IP65 for protection against dust and water. It is designed for wall mount applications, and its sleek gray color makes it suitable for any outdoor environment. The enclosure is designed to accommodate LC/SC/FC adapters, making it an ideal solution for both indoor and outdoor FTTH applications.

The Wall Mount Fiber Enclosure is the perfect solution for outdoor FTTH applications. It offers secure and reliable protection for cabling, and its compact design makes it easy to install in any location. The enclosure also features excellent heat dissipation, ensuring the safety and reliability of your network. With its superior protection level and stylish design, the enclosure is sure to provide reliable and secure FTTH distribution.



Features:

  • Product Name: Wall Mount Fiber Enclosure
  • Protection Level: IP65
  • Mounting Type: Wall Mount
  • Adapter Type: LC/SC/FC
  • Cable Diameter: 3-10mm
  • Panel Port: Simplex/Duplex
  • Wall Mount Optical Distribution Frame
  • Outdoor FTTH Terminal Box


Technical Parameters:

Parameter Specification
Max Capacity 72 Fibers
Temperature Range -40~+85℃
Installation Easy Installation
Application FTTH/FTTX
Panel Port Simplex/Duplex
Color Gray
Protection Level IP65
Size 47x43x17cm
Relative Humidity ≤95%
Material Metal

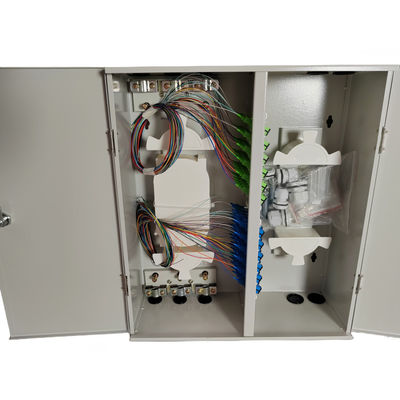

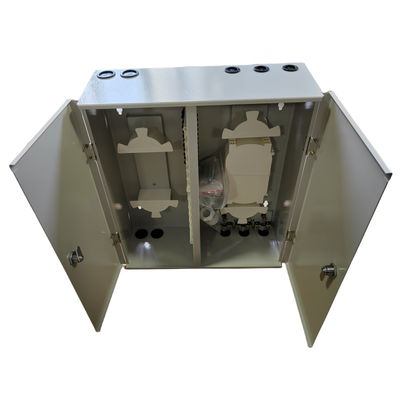

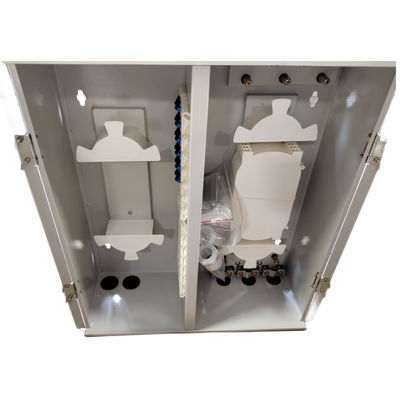

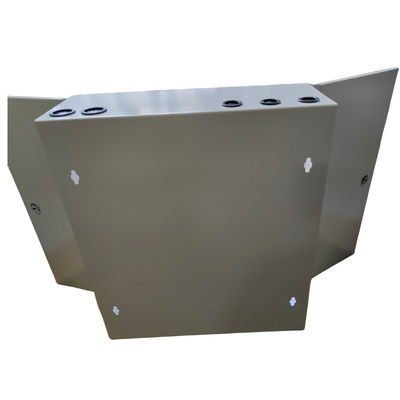

Metal Wall Mount Fiber Enclosure 72 Core With 2 Door And Dual Locks 0Metal Wall Mount Fiber Enclosure 72 Core With 2 Door And Dual Locks 1Metal Wall Mount Fiber Enclosure 72 Core With 2 Door And Dual Locks 2

Applications:

The Twilight Optic TW-WM03-2 Wall Mount Fiber Enclosure is a 19-inch outdoor wall-mount fiber distribution box that is certified by CE and Rosh. It is designed for easy installation and comes in a gray color. It features a simplex/duplex panel port for easy connection. The minimum order quantity is 1pcs and the price can be discussed. It is packed in a standard master carton and the delivery time is 12-15 days. It has a supply ability of 1000pcs per week and payment terms are 100% in advance. It is perfect for outdoor FTTH distribution and wall mount ODF applications, and can also be used as a wall mount patch panel.



Customization:

Wall Mount Fiber Enclosure

Brand Name: Twilight Optic

Model Number: TW-WM03-2

Place of Origin: Hunan, China

Certification: CE,Rosh

Minimum Order Quantity: 1pcs

Price: Can be discussed

Packaging Details: Standard Master Carton

Delivery Time: 12-15 days

Payment Terms: 100% in advance

Supply Ability: 1000pcs/week

Adapter Type: LC/SC/FC

Size: 47x43x17cm

Panel Port: Simplex/Duplex

Relative Humidity: ≤95%

Color: Gray



Support and Services:

Wall Mount Fiber Enclosure Technical Support and Service

  • On-site installation support
  • Factory commissioning & integration support
  • 24/7 technical support hotline
  • Online trouble-shooting and remote diagnostics
  • Regular maintenance and product updates
  • Extended warranty and product replacement


Packing and Shipping:

Packaging and Shipping for Wall Mount Fiber Enclosure:

  • Package should be made of strong cardboard.
  • Foam or bubble wrap should be used to protect the product from any damage.
  • Shipping should be done through a reliable carrier.
  • Marking labels should be used to identify package content and the sender.
  • The package should be secured with straps or shrink wraps.
  • Delivery should be made to the customer's address as specified.
