144 Core FC SMC Floor Standing Fibre Distribution Hub FDH Telecom Network Cabinet
Decsription:
Fiber optic cross connection cabinet is an outdoor optical equipment that especially design for outdoor optical fiber access network. Achieve the optical fiber connection, splicing, storage and distribution.
It has two kinds of installation methods: floor mounted and aerial.
Specification:
| Pre-Terminated Connector | LC, SC, FC, ST |
| Connector Polished | UPC or UPC |
| Fiber Mode | SM/MM |
| Fiber Count | 144 SC.FC,ST Fiber or 288 LC Fibers |
| Size | 1030*540*300MM |
| Jacket Color | Grey |
| Jaket Material | SMC |
| Warranty | Many Years |
| Application | FTTH Solution |
| Product Keywords | 144 core fiber optic cabinet,outdoor optical distribution cabinet,144 core outdoor optical distribution cabinet,144 core outdoor optical distribution cabinet |
Features:
1. Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material(SMC), adapting various bad weather condition, with reliable sealing, water-proof and damp proof.
2. Single/double door, dust proof and waterproof. And protection level: 1P65
3. Good design for inner structure, easy installation.
4. Clear indication of splicing and distribution.
5. The adapter can be ST, FC, SC etc.
6. Enough fiber routing and storage space inside.
7. Reliable cable fixation device and grounding device.
8. Good design of splicing routing and guarantee bending radius of fiber optic.
9. Working temperature -40C to +40C
10. Storage temperature -40C to +60C
11. Relative humidity ≤95% (+40C)
12. Atmospheric pressure 70Kpa to 106Kpa
13. Capacity 144 core
Structure Characteristic:
Modular design provides the largest flexibility, satisfy the needs of the present and future development
The body using the SMC or stainless steel and surface using electrostatic spray so it has good corrosion resistance and anti-aging function, the wind protection class of the body achieves the IP65 level. The effect of defense dewing is excellent.
The module tray can spin out of 90 degrees around the axis in the left front, and the bevel of the adapters within the module takes on 30 degrees. The clip-locked installation ensures the bending radius of the fiber directly and prevents the eyes from injury.
Weld disk can spin out of 90 degrees, and then draw out, so its convenient to construction, and also convenient to expansion and maintenance
cross connection cabinet has doors in the front and back, have ample space for cabling, convenient to operation and maintenance
cross connection cabinet has reliable device for fastness, peeling and grounding of the optical cables
Insulation resistance between high voltage protection earth and box20,000MΩ /500V (DC)
Bearing pressure voltage> 3000VAC (50Hz) 1min not breakdown, arcing
fiber optic cross connect cabinet Mechanical Durability Test : ≥1000 times
Cabinet size:
| Type | Size mm |
| Wall Mount 96Cores | 600*450*280MM |
| Wall Mount 144 cores | 750*540*300MM |
| Floor Standing 144 cores | 1030*540*300MM |
| Floor Standing 288 cores | 1450*750*320MM |
| Floor Standing 576 cores | 1450*750*540MM |

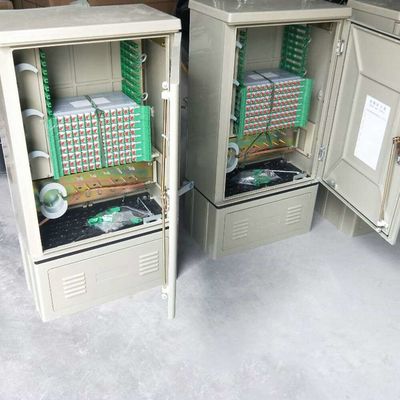

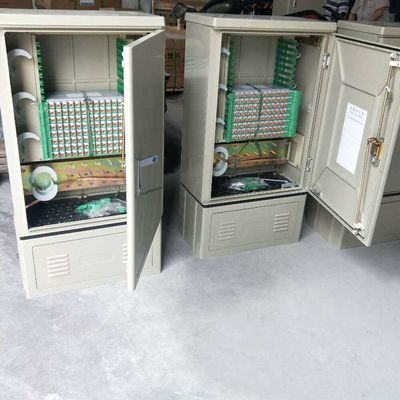

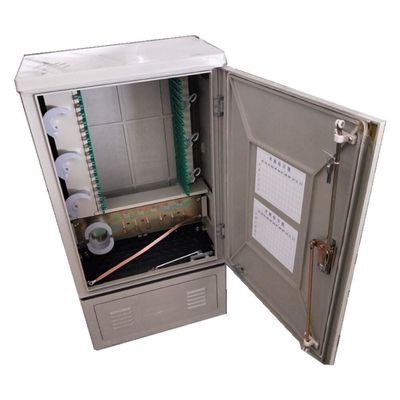

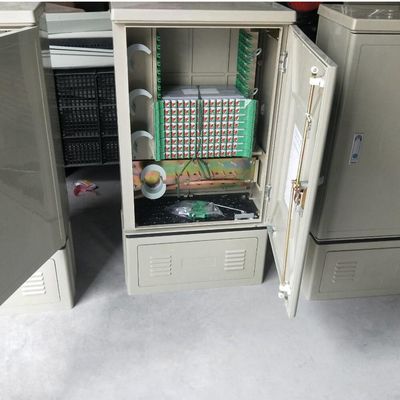

More product photos for reference:
