96 Core Outdoor Street Cabinet Pole Mounted Optical Cross Connection Cabinet
1. Specification
| Product name | 96 Core Wall/Pole Mounted Fiber Distribution Cabinet |
| Connector Type | SC, LC ST,FC |
| Product Size | 600*450*280MM |
| Material | SMC |
| Installation type | Wall/Pole Mounted |
| Color | Grey White |
| Application | FTTH FTTB FTTX Network |
| Warranty | Limited life |
| Fiber Number | 96/144/288 fibers |
| Working temperature | -5℃~+40℃ (indoor), -40℃~+60℃ (outdoor) |
Features:
1. SMC material used ensures the body strong and light.
2. Embedded the wall design for outdoor uses.
3. Protection Level: IP55
4. Easy installations: Ready for wall mount – installation kits provided
5. Adapter slots used – No screws and tools needed for installing adapters.
6. Ready for splitters: designed space for adding splitters.
7. Space saving! Double-layer design for easier installation and maintenances:
8. MAX.tray:8 pcs(96 cores),12 core per tray.
9. Lower layer for splitters and over length fiber storage.
10. Upper layer for splicing, cross-connecting and fiber distribution.
11. Accommodates both cable glands as well as tie-wraps
12. Lock provided for extra security
Applications:
1. Local Area Network；
2. CATV Network；
3. FTTx System/ FTTH Project；
4. Wide Area Network.

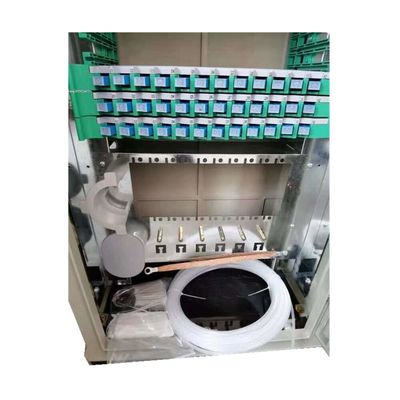

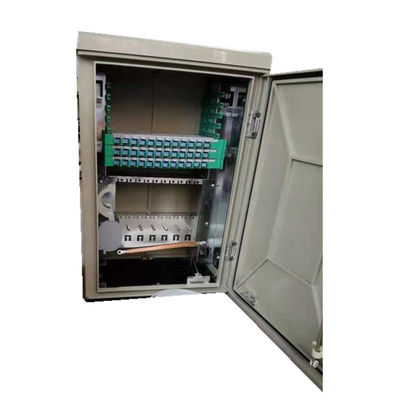

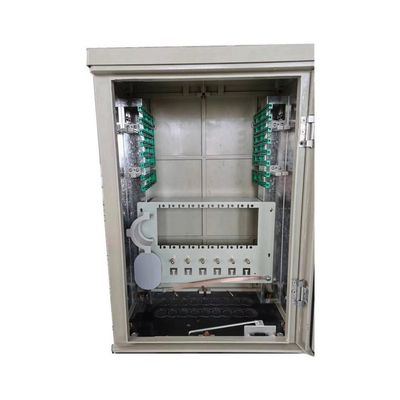

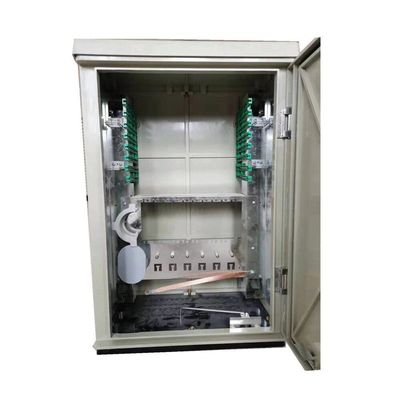

More photos for reference:
