Wall Mounted 144 Core Fiber Optic Cabinet ODC Pole Fiber Distribution Cabinet
1. Specification
Product name | 144 Core Wall/Pole Mounted Fiber Distribution Cabinet |
Connector Type | SC, LC ST,FC |
Product Size | 750*550*310MM |
Material | SMC |
Installation type | Wall/Pole Mounted |
Color | Grey White |
Application | FTTH FTTB FTTX Network |
Warranty | Limited life |
Fiber Number | 96/144/288 fibers |
Working temperature | -5℃~+40℃ (indoor), -40℃~+60℃ (outdoor) |
Features:
1. High intensity and anti-erosion performance
2. Able to counter abrupt climate change and extreme environment
3. Capacity can be flexibly customized as required
4. Installation is quick and convenient
5. Built-in direct splice unit is capable for providing direct connection function.
6. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
7. With secure and reliable fastening and grounding protection devices for the optic fiber
8. Applicable to strap-shaped and non-strap shaped fibers
9. connecting trunk and distributing optical fiber cable.
10. capability of splicing, storage, and fiber cable distribution.
11. Fiber optic cabinet, max up to 12/24/48 trays, 12 ports one tray, total 144/288/576 ports, FC or SC adapter can be installed.
12. Effective:rain-proof, dust -proof,pests-proof
Applications:
1. Local Area Network;
2. CATV Network;
3. FTTx System/ FTTH Project;
4. Wide Area Network.

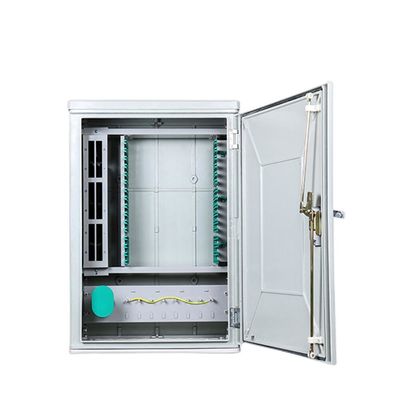

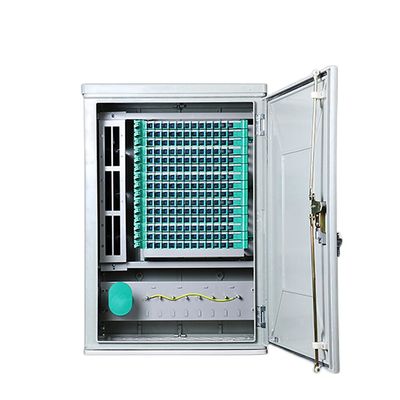

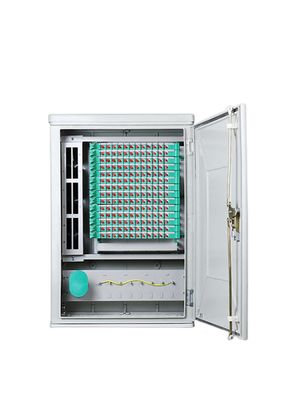

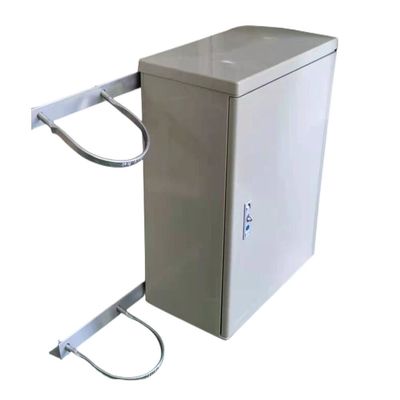

More photos for reference:
