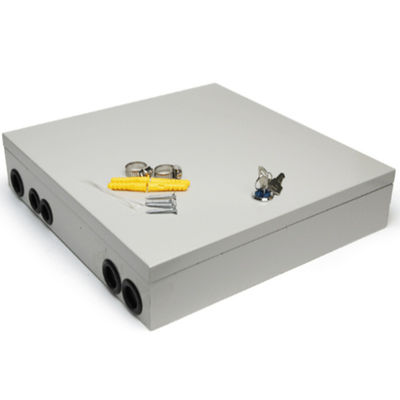

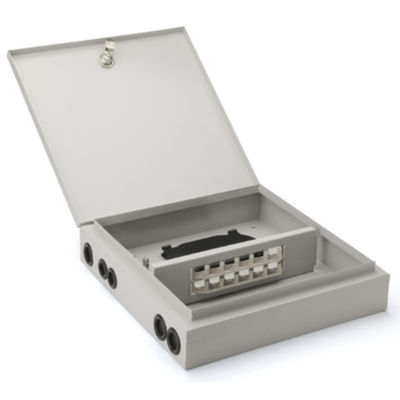

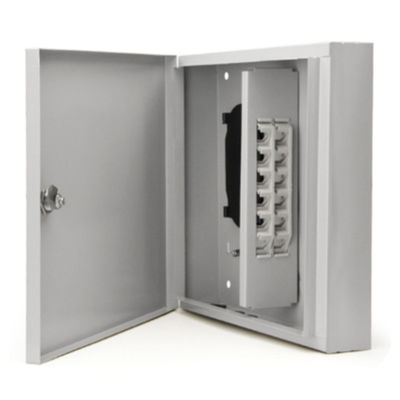

12F Wall Mount Fiber Enclosure Metallic ODF Fiber Optic Patch Box 12 Core
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wall Mounted Indoor Fiber Optic Patch Box | Material | Cold Rolled Steel |
|---|---|---|---|
| Size | 375*400*80MM | Color | Hoar |
| Weight | 2.3kg | Adapter | SC,LC,ST,FC |
| Application | Wall Mounted | Capacity | 12 Core |
| High Light | 12F Wall Mount Fiber Enclosure,Wall Mount Fiber Enclosure Metallic,ODF Fiber Optic Patch Box |
||
Product Description
Wall Mount fiber enclosure Metallic 12 core Indoor ODF SC LC FC ST Adapter
Indoor Wall-mount Fiber Optic Distribution Frame can manage both single fiber and ribbon & bundle
fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working
space to integrate the pigtails, cables and adapters.
Features:

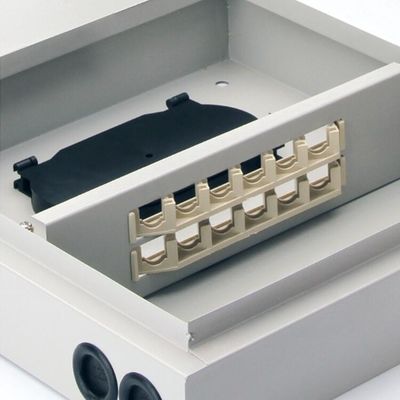

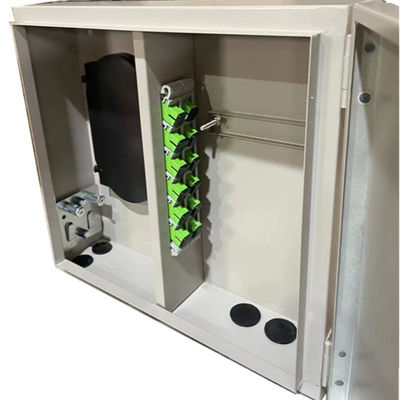

With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation
Specification:
| Model | Fiber Quantity | Dimension(cm) | Weight(Kg) |
| TW-WM01-48C | 48F | 380*400*125 | 7.4 |
| TW-WM01-24C | 24F | 380*400*90 | 4.2 |
| TW-WM01-12C | 12F | 375*400*80 | 2.3 |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN
CATV
Painting:
1.Electrostatic Powder spraying,Black or Hoar color optional.
2.Other color according to customer’s demand.
Note:If customer no special requirement,we will spray hoar color.
