FDC Fiber Optic Cabinet Terminal Outdoor Fiber Optic Cross Connect Cabinet

1
MOQ
Can be disscussed
Price
FDC Fiber Optic Cabinet Terminal Outdoor Fiber Optic Cross Connect Cabinet
Features Gallery Product Description Request A Quote
Features
Specifications
Material: SMC
Color: Grey White
Size: 1450*750*320MM
Splice Tray: 48F Or 24 F
Splice Tray Capacity: 24pcs Or 12pcs
Package: Carton Box + Pallet
Warranty: Many Years
Application: Fiber Optic Cable Distribution
High Light:

FDC Fiber Optic Cabinet

,

Fiber Optic Cabinet Terminal

,

Outdoor Fiber Optic Cross Connect Cabinet

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic or OEM
Model Number: TW-CBSMC-576A
Payment & Shipping Terms
Packaging Details: Carton+Pallet
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000/Months
Product Description

FDC 576core SMC Outdoor Fiber Optic Cross Connect Terminal Distribution Cabinet



Description:

Distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.It can achieve a direct connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing,the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.



1. Specification

Operating Temperature -40°C~+60°C
Relative humidity ≤95%(40°C)
Atmospheric pressure 70kpa-106kpa
Insulated resistance 2x10000M/500V(DC)
Connector loss (insert, repeat) ≤0.5db
Return loss pc ≥ 40db, UPC ≥ 50dB, APC ≥ 60dB
Mechanical Durability Test ≥1000 times
Warranty time Many years



Applications:

1. Optic-fiber Communication Systems

2. Optic-fiber Data Communications

3. Optic-fiber Access Networks

4. Optic-fiber CATV

5. LAN,Cabling system,ODF

6. Optic-fiber Sensors

7. FTTX applications


Features:

1. large capacity
2. high density
3. has good corrosion resistance
4. aeing resistance peoformance
5. good sealing peoformanc



More photos for reference:

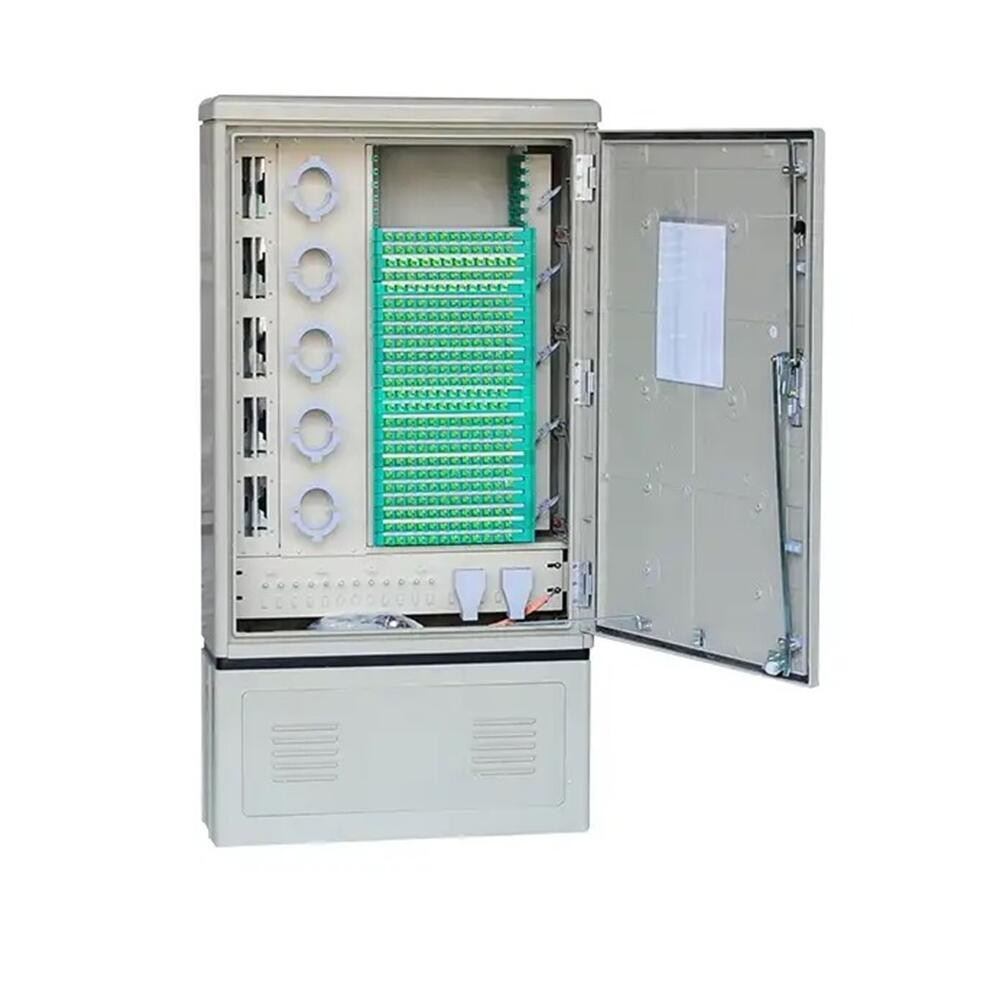

FDC Fiber Optic Cabinet Terminal Outdoor Fiber Optic Cross Connect Cabinet 0

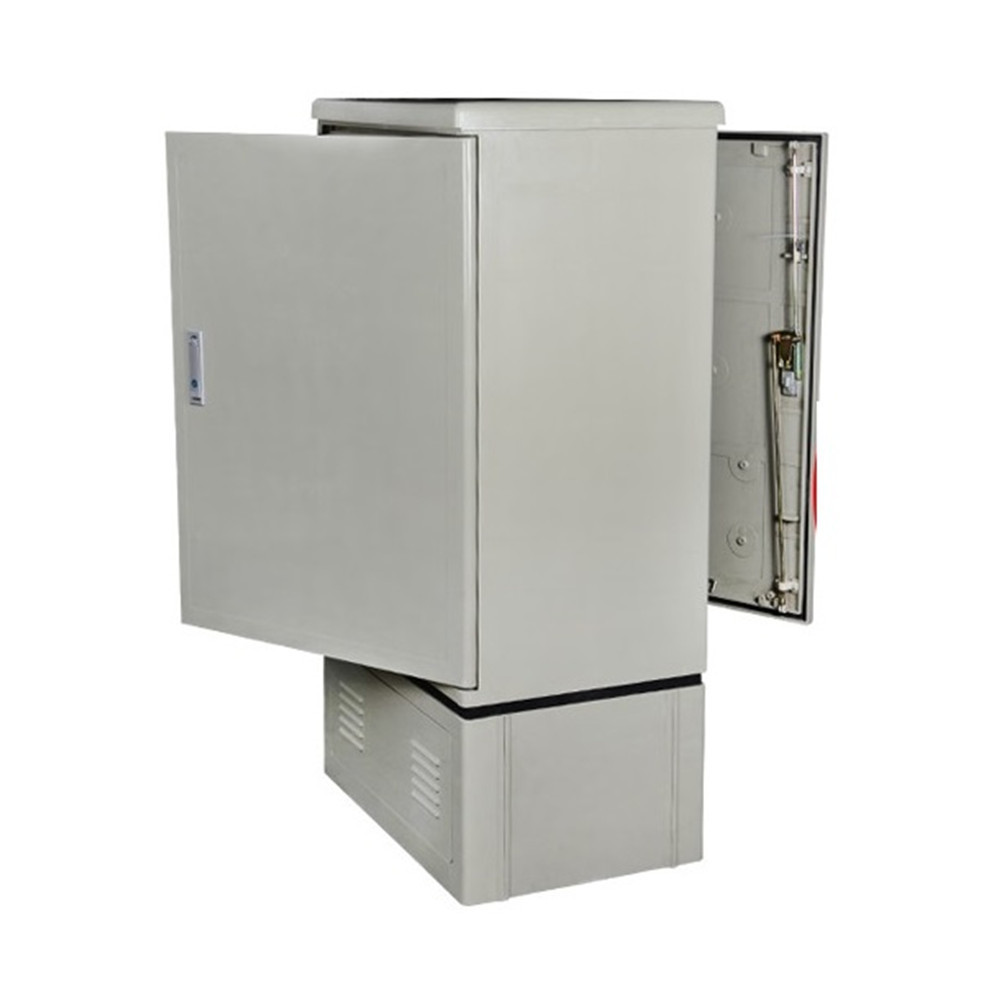

FDC Fiber Optic Cabinet Terminal Outdoor Fiber Optic Cross Connect Cabinet 1

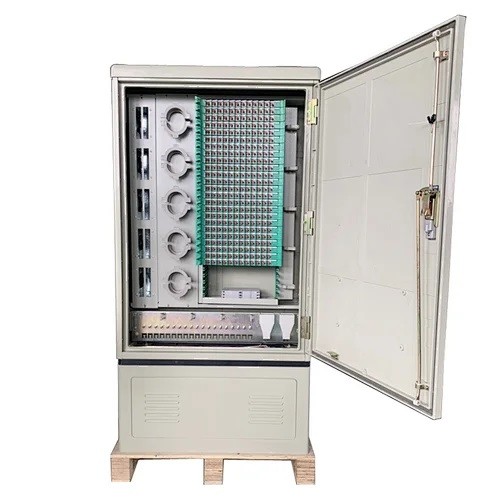

FDC Fiber Optic Cabinet Terminal Outdoor Fiber Optic Cross Connect Cabinet 2

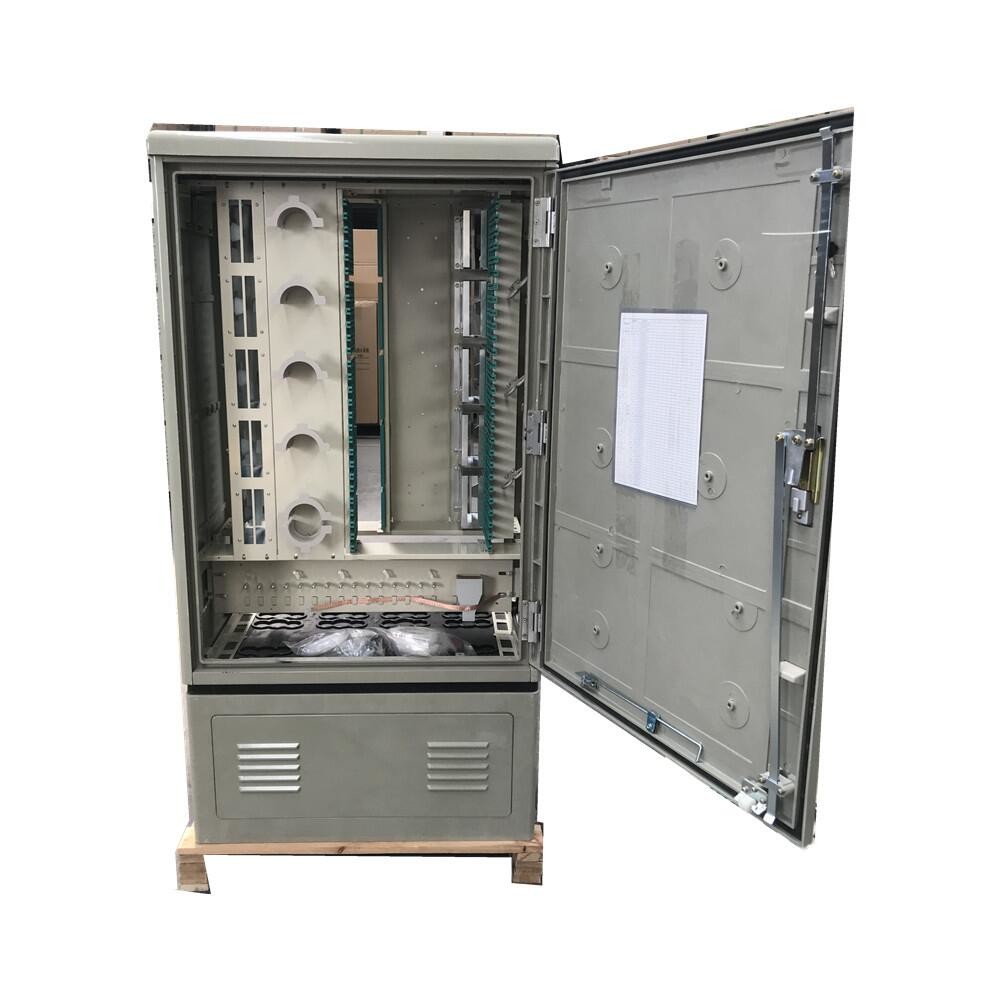

FDC Fiber Optic Cabinet Terminal Outdoor Fiber Optic Cross Connect Cabinet 3
