External waterproof FDT FTTX SMC fiber optic cabinet 288 fibers outdoor SC port
1. Specification
Parameters | |
Model | TW-CBSMC-288B |
Max. No. of Cores | 288 Core SC,FC,ST Simplex Fiber or 576 LC Fibers |
Splitter Type | ABS Box Type |
Max. No. of Splitters | 10 |
Splice Tray Type | 12 cores/tray or 24 cores |
Max. No. of Splice Tray | 24 or 24 |
Cabinet Material | SMC |
Adapter Panel | FC Square, SC, DLC (SC type) |
Insulation Resistance (MΩ) | 1000 @500V (DC) |
Withstanding Voltage (V/min) | 3000 (DC), no breakdown, no flashover |
Installation Type | Ground |
Protection Rating | IP65 |
Operating Temperature (°C) | -40~ +60 |
Dimensions (mm) | 1450*750*320MM |
Weight (kg) | 80 |
Applications:
● Communications
● Networks
● Industrial control
● Building automation
● Connector insertion and durability> 1000 times
Features:
● The protection grade reaches IP65
● Made of powder coated iron or SMC Material (optional)
● Excellent anti-erosion, waterproof and dustproof performance
● Multiple installation options, including floor and wall installations
● Each incoming cable will be fixed properly with earth provided
● Available for normal fiber cable and fan-out fiber cable
● Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance
● Integrated splice and distribution unit is adopted. The drawer type distribution module can be easy changed according to the requirements,
which is very easy for future maintenance.

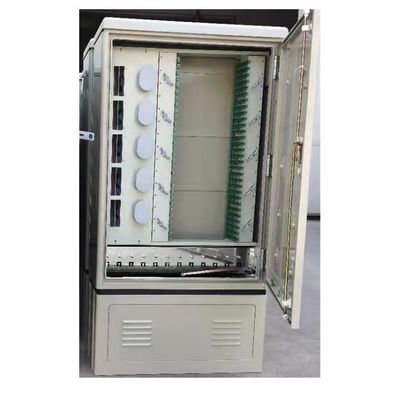

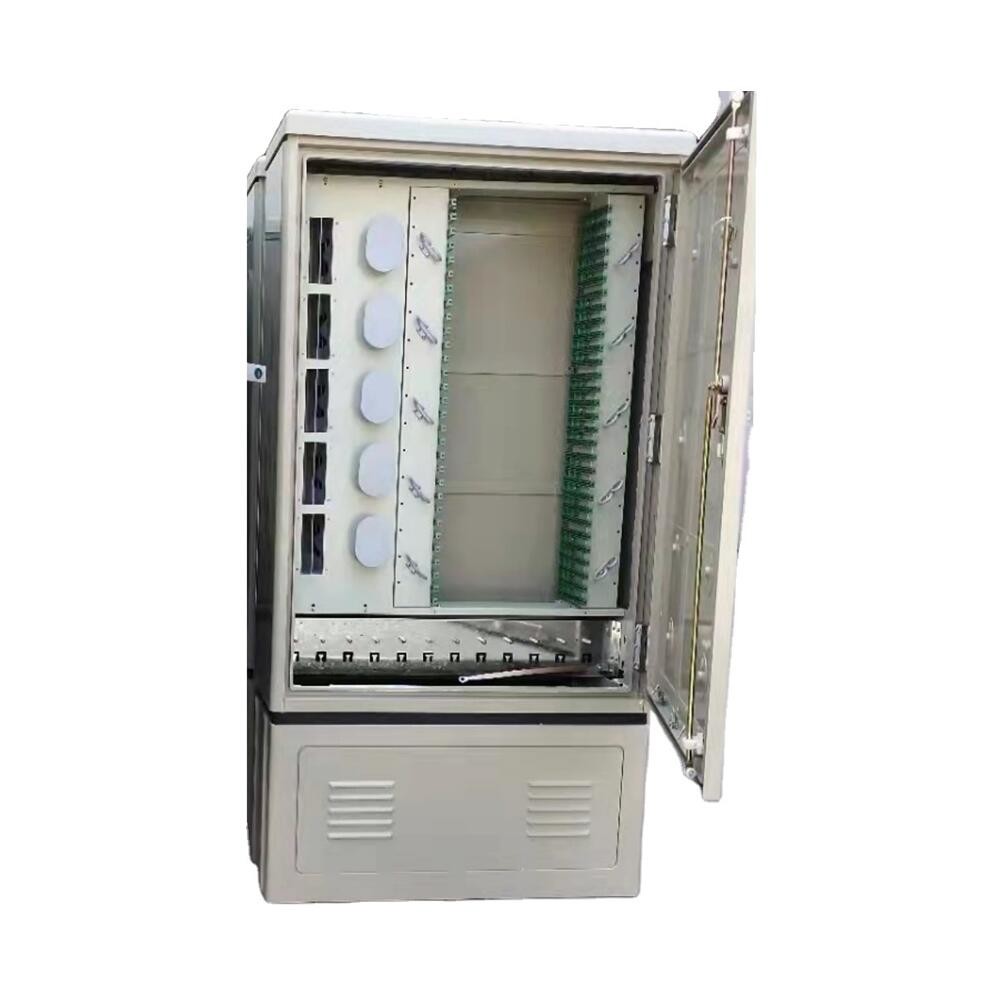

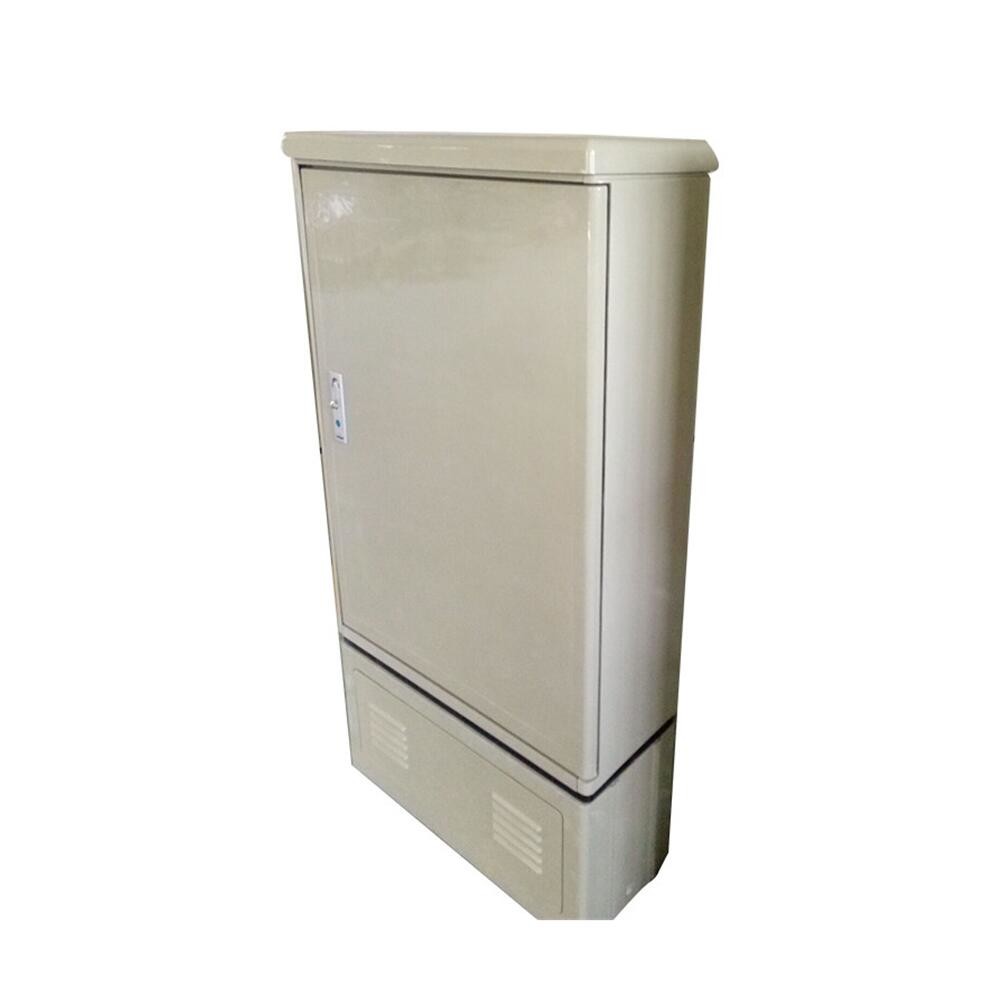

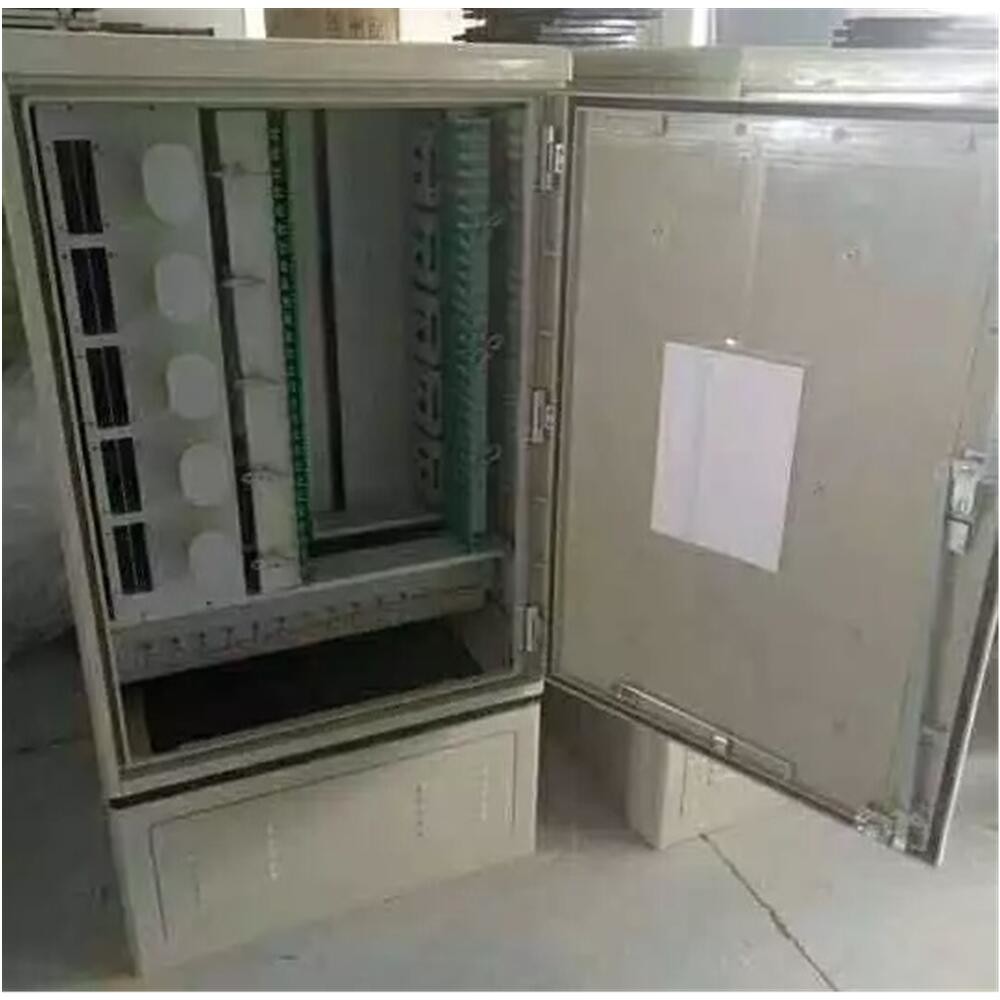

More photos for reference:
