External Optical Equipment Exterior Floor Standing 144 Core Fiber Optic Cabinet
Specification:
| Pre-Terminated Connector | LC, SC, FC, ST |
| Connector Polished | UPC or UPC |
| Fiber Mode | SM/MM |
| Fiber Count | 144 SC.FC,ST Fiber or 288 LC Fibers |
| Size | 1030*550*310MM |
| Jacket Color | Grey |
| Jaket Material | SMC |
| Warranty | Many Years |
| Application | FTTH Solution |
| Product Keywords | 144 core fiber optic cabinet,outdoor optical distribution cabinet,144 core outdoor optical distribution cabinet,144 core outdoor optical distribution cabinet |
Technical parameters:
1. Operation Conditions:
2. Work Temperature: -40C~+55C
3. Relative humidity:≤95%(+30C)
4. Atmospheric pressure: 70KPa~106 KPa
5. Photoelectric property
6. Insertion loss: ≤0.2dB
7. return loss:PC≥45 dB UPC≥50dB APC≥60dB
8. Isolation resistance between high voltage protection place and frame ≥20000MΩ(DC500V)
9. withstand voltage between high voltage protection place and frame ≥3000V(DC)/1min (no puncture,no flashover)
Cabinet size:
| Type | Size mm |
| Wall Mount 96Cores | 600*450*280MM |
| Wall Mount 144 cores | 750*550*310MM |
| Floor Standing 144 cores | 1030*550*300MM |
| Floor Standing 288 cores | 1450*750*320MM |
| Floor Standing 576 cores | 1450*750*540MM |

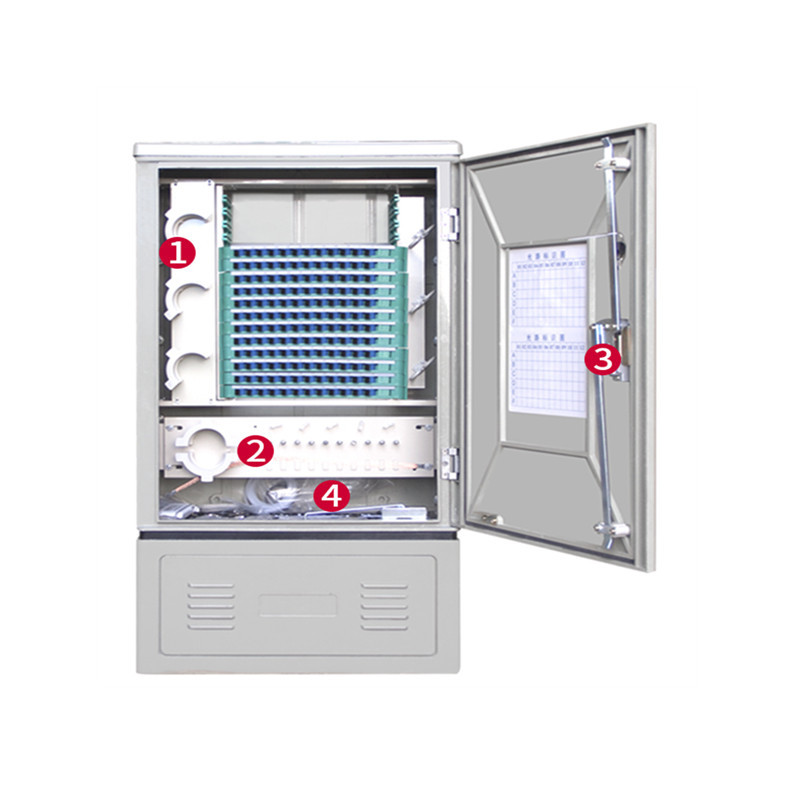

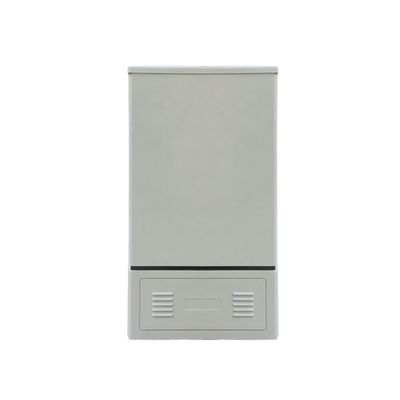

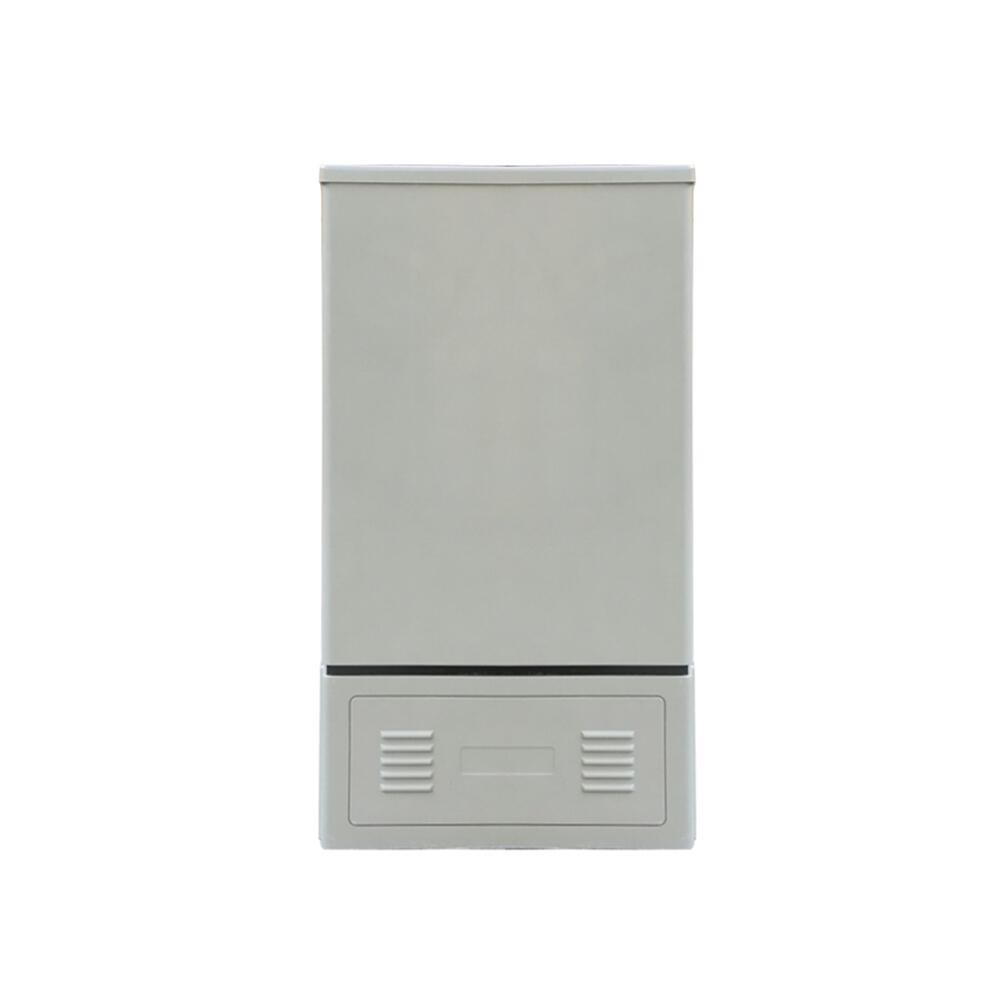

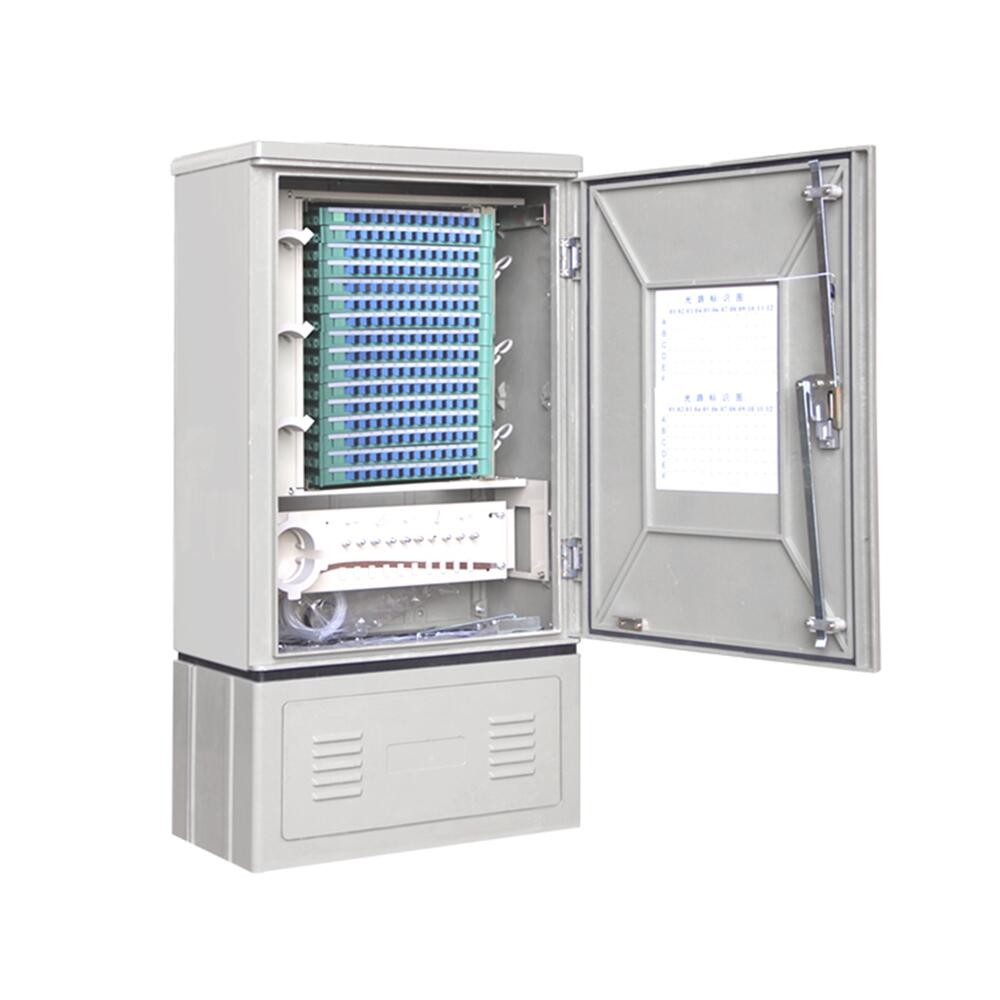

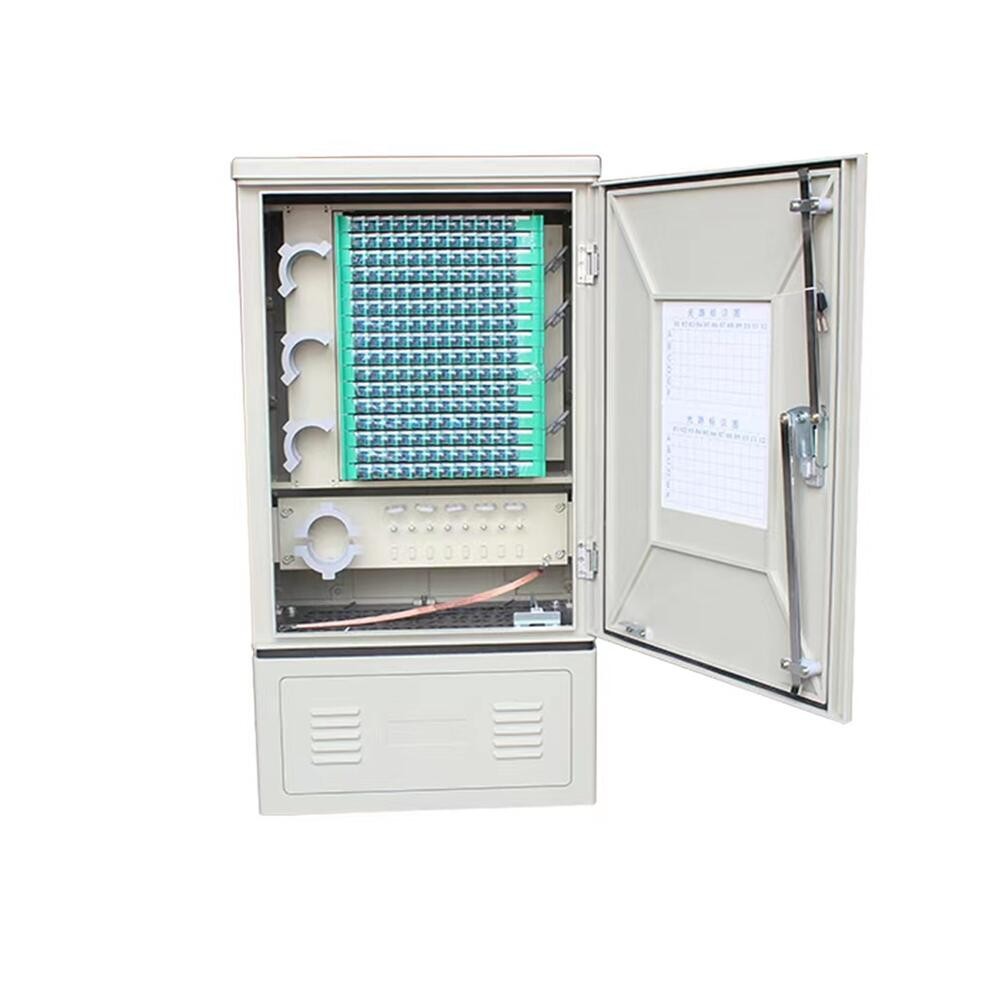

More product photos for reference:
