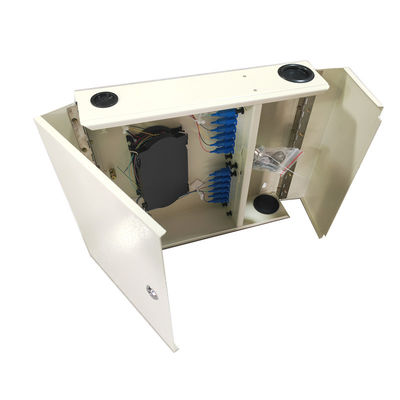

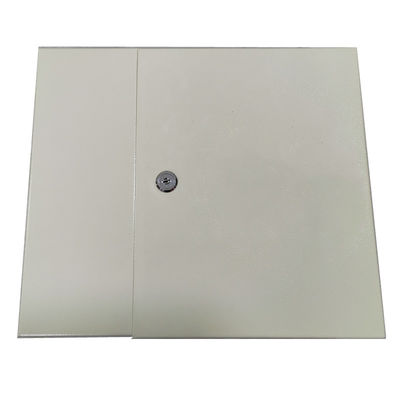

China OEM Factory Indoor Fiber Optic Splice Termination Unit Wall Mount 48 Core for Fiber Optic Cable
Description:
Outdoor Wall-mount Fiber Optic Distribution Frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.
| Product name | 24 Cores Indoor Wall-mount Fiber Optic Distribution Frame |
| Connector Type | FC,LC, SC, ST |
| Size | 4000X300X95mm |
| Simplex or Duplex | Simplex or Duplex |
| Material | cold rolled steel sheet |
| Application | For Cable distribution |
| Color | Black or Grey White for optional. |
| Warranty | Limited life |
| Original of Place | Shenzhe of China |
| Product Keywords | Fiber Patch and Splice Enclosure |
Feature:
1. With steel plates can manage both single fiber and ribbon & bundle fiber cables
2. FC, LC, SC, ST output interfaces optional
3. Large working space to integrate the pigtail, cables and adapters
4. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation
5. Special design ensures the excess fiber cords and pigtails in good order
6. Inner components as follows:
Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers
Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails
7. The brim of the box is sealed
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
More size for option:
| Capacity | Size |
| 12 cores | 360*380*65mm |
| 24 cores | 380*360*80mm |
| 36 cores | 380*460*95mm |
| 48 cores | 400*300*95mm |
| 60 cores | 400*380*130mm |
| 72 cores | 400*380*130mm |
| 96 cores | 420*400*170mm |
| 128 cores | 670*550*200mm |
