These Breakout Style Multifiber assemblies are designed to reduce the complexity and operating cost of fiber optic networks by reducing the clutter from numerous individual fiber patch cords. These incredibly versatile fiber optic harnesses are available in a variety of configurations including OS2, OM1, OM2, OM3, or OM4 along with popular connectors such as LC, ST, and SC in standard or custom configurations.
Specification
|
Parameter
|
Unit |
FC,SC,LC | ST,MU,MTRJ, | |||
| SM | MM | SM | MM | |||
| UPC | APC | UPC | UPC | UPC | ||
| Insertion Loss | dB | ≤0.2 | ≤0.2 | |||
| Return Loss | dB | ≥55 | ≥65 | ≥35 | ≥55 | ≥35 |
| Repeatability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Durability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Exchangeability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Compressive Strength | N | F>300 | ||||
| Operation life Span | Times | n>1000 | ||||
| Operation Temperature | ℃ | -40~75 | ||||
| Storage Temperature | ℃ | -45~85 | ||||
| Cable Diameter | cm | 0.9,2.0,3.0 or specified | ||||
Application:
1.High density architectures
2.Data communication network
3.Optical system access network
4.Storage area network fiber channel

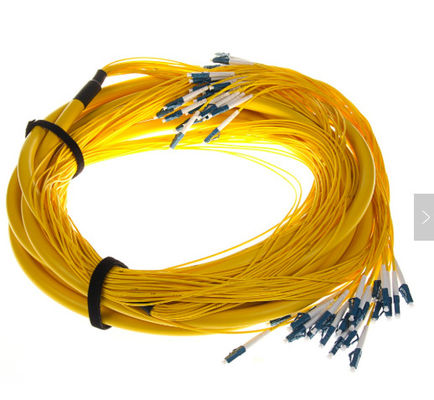

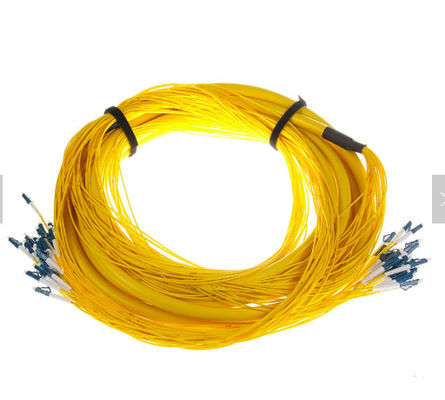

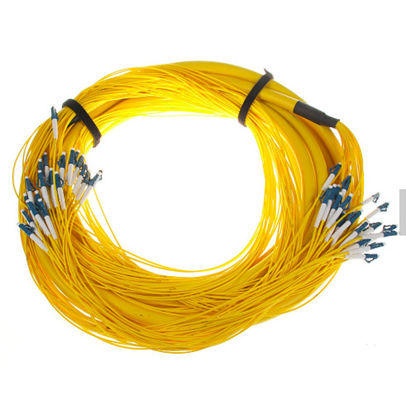

LC/UPC SM 12 Fibers 2.0mm 3m LSZH Breakout Cable
1 - 2 - 3 - 4 - 5 - 6 - 7
1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, UPC, APC
3 Fiber Type: Single-mode (SM: 9/125um-G652), Multimode (MM: 50/125um-OM2 or 62.5/125um-OM1), OM3, OM4….;
4 Core Type: 1/2/4/6/8/12 Core optional…
5 Cable Diameter: 2.0mm, 0.9mm
6 Cable Length: 1m, 2m…or customized
7 Cable Jacket:PVC, LSZH, OM3, OFNR, OFNP
